Eagle
>>
1988
>>
Eagle Wagon L6-258 4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

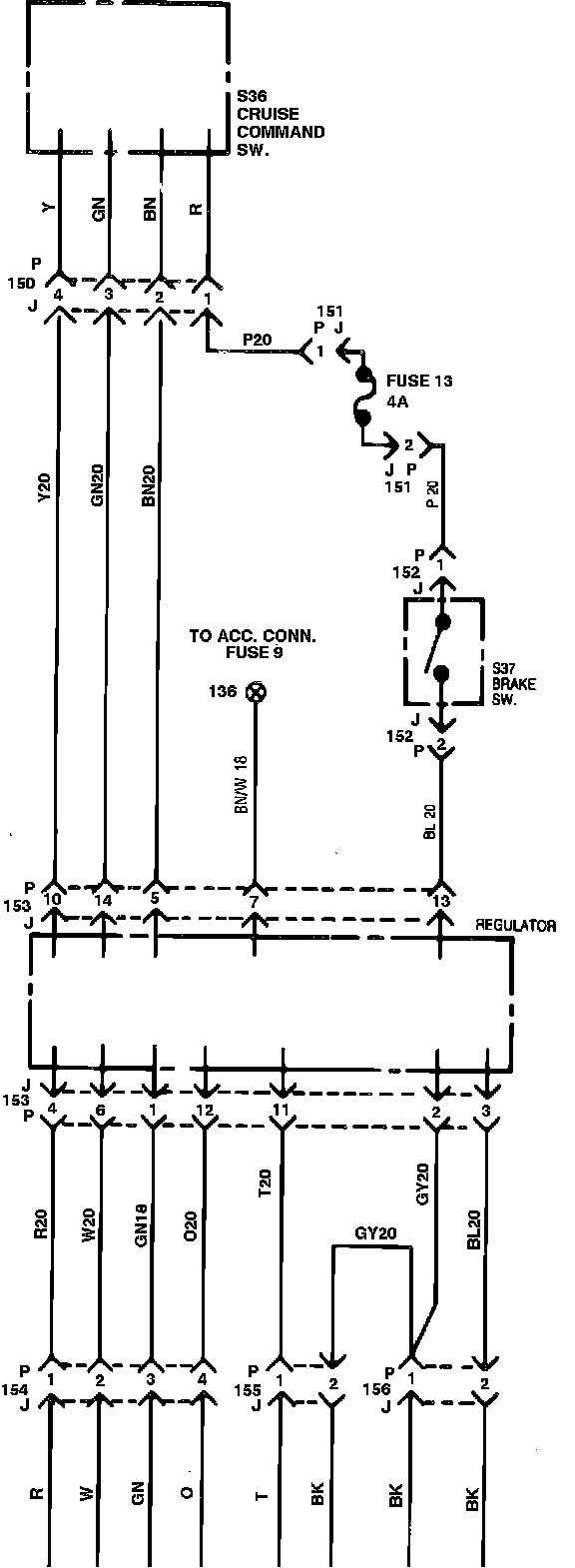

Cruise Command Wiring Circuit:
