Home >> Eagle >> 1988 >> Premier L4-150 2.5L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Wiring Diagrams >> Part 1

Part 1

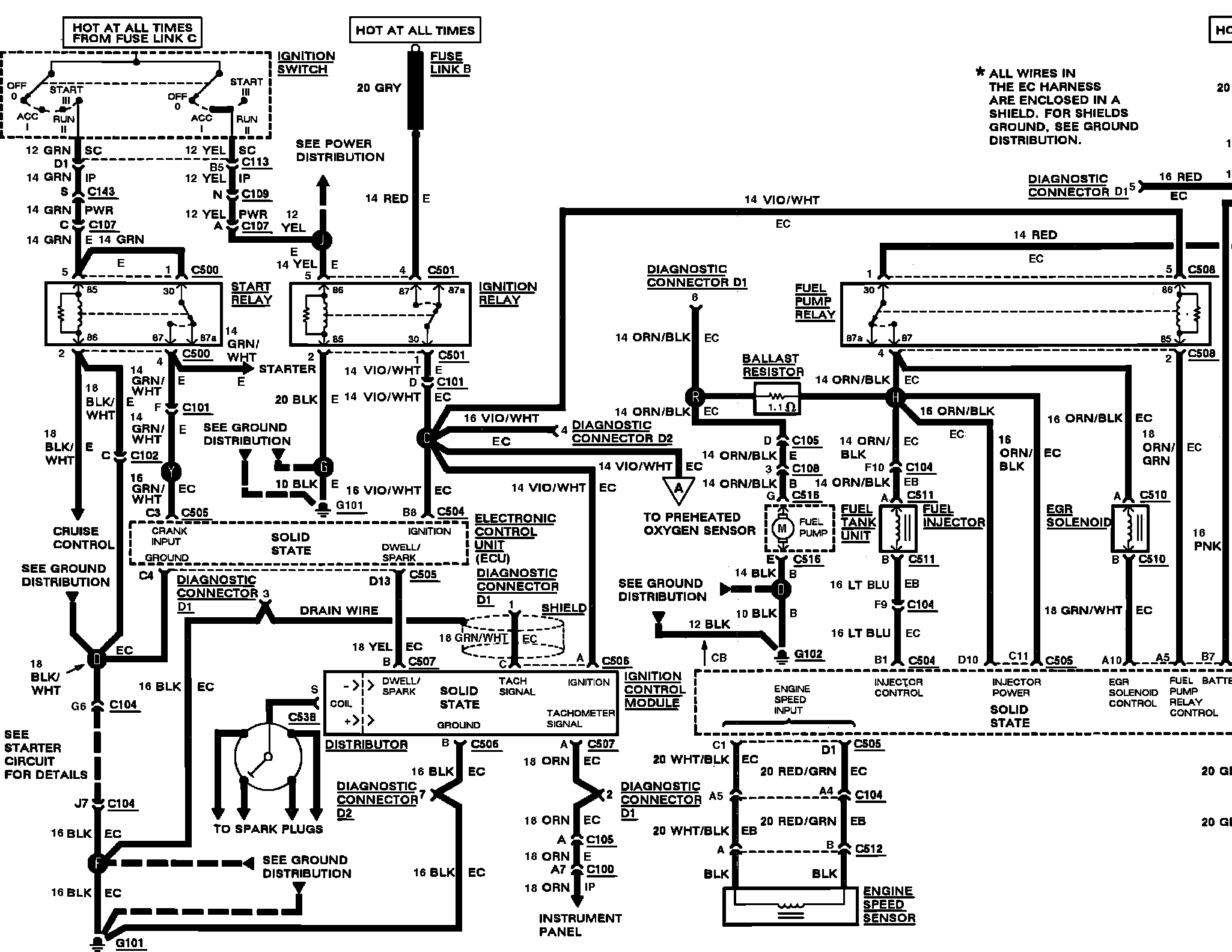

D٪1Engine Controls Wiring Circuit:
