W/O Air Conditioning

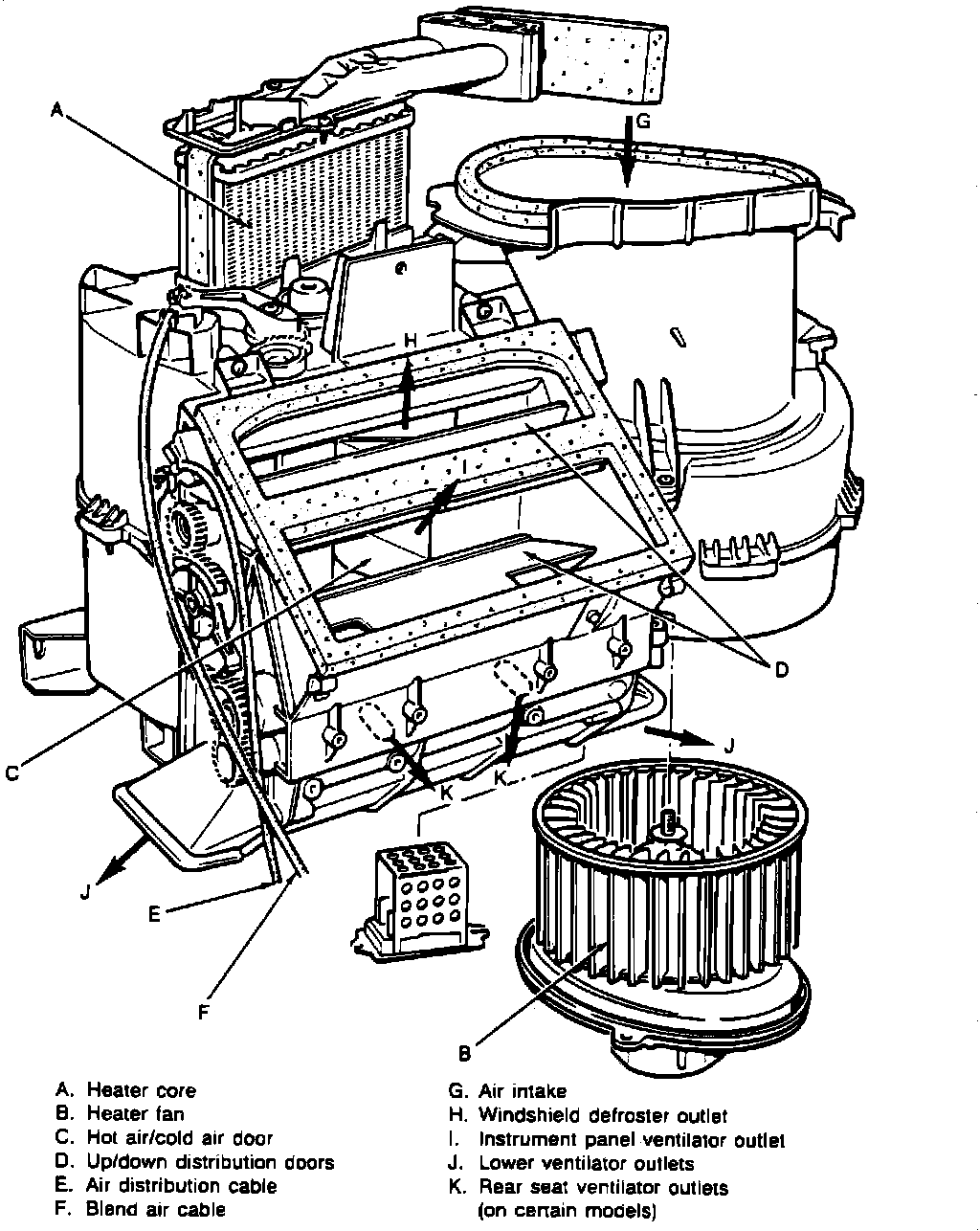

Fig. 12 Heater Assembly Components:

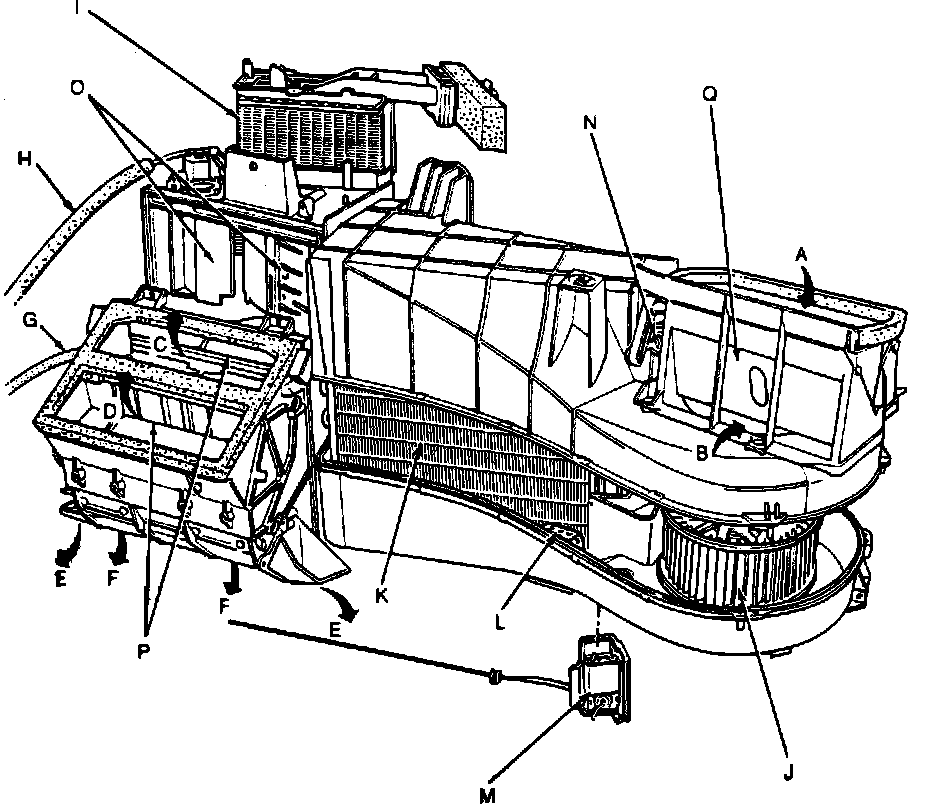

Fig. 13 A/c & Heater Assembly Components:

1. Disconnect battery ground cable.
2. Remove heater housing assembly.
3. Remove heater core to blower motor attaching screws.
4. Spread the four attaching clips and remove heater core by pulling upward. Use care when removing heater core as not to damage heater core fins, Figs. 12 and 13.
5. Reverse procedure to install.
