Home
>>
Eagle
>>
1989
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
System Diagram
>>
Pod Wiring Connector
Pod Wiring Connector

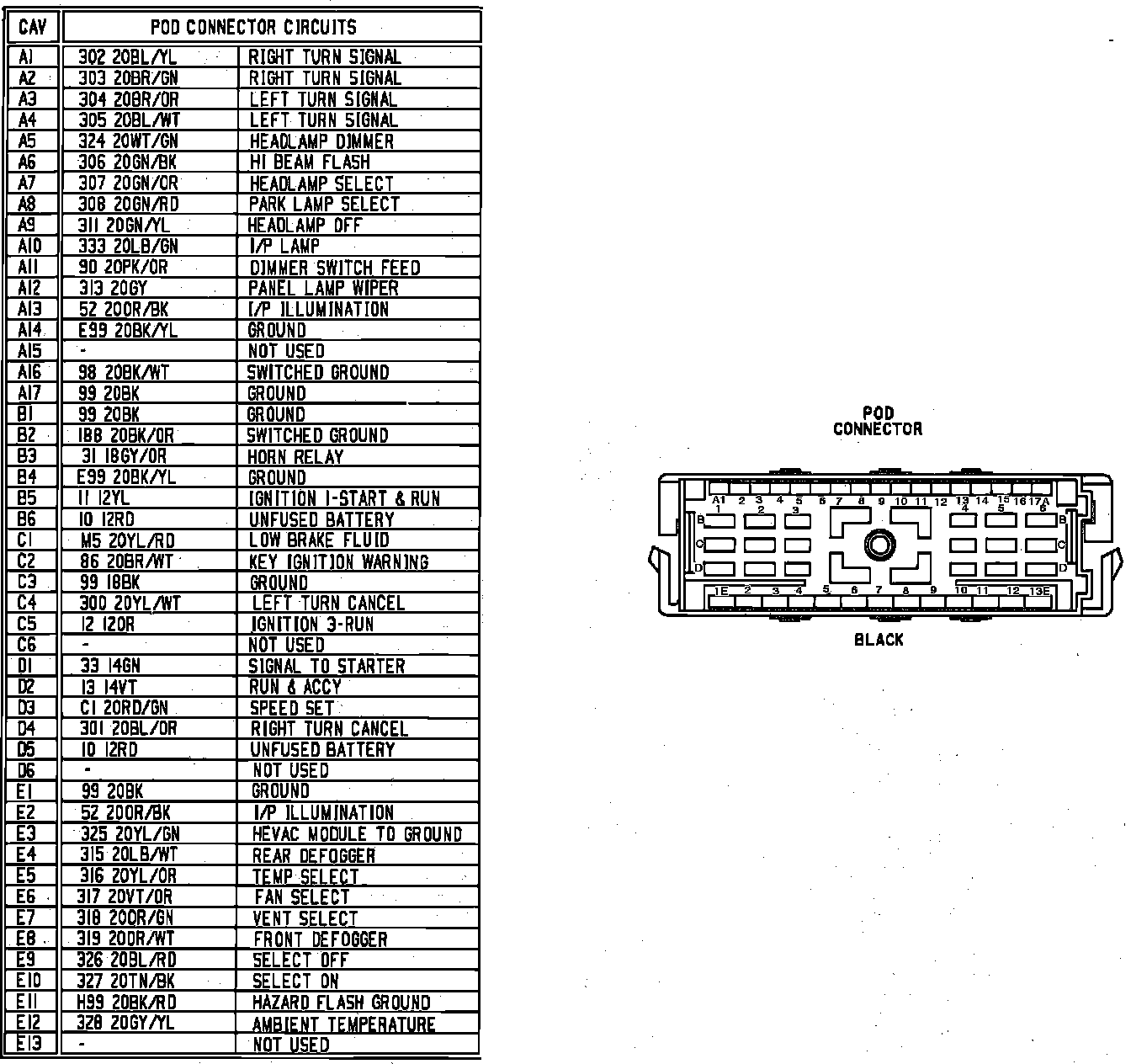

POD Wiring Connector:
