Idle Speed/Throttle Actuator - Electronic: Service and Repair

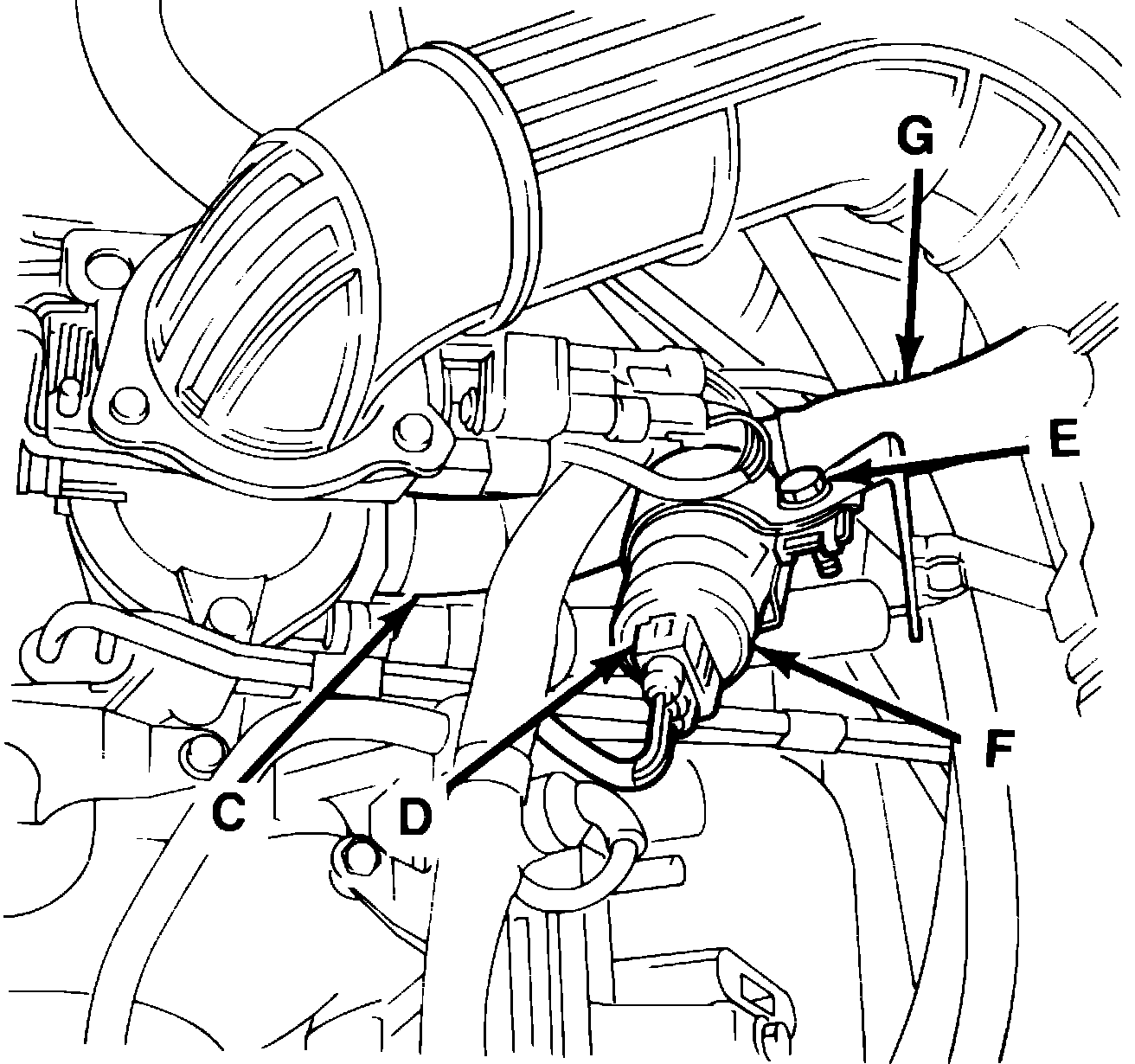

Fig. 8 Idle speed regulator:

Refer to Fig. 8 when performing the following procedure.
1. Remove idle speed regulator electrical connector (D).
2. Remove air inlet hose (G), then disconnect regulator outlet hose (C) from regulator (F).
3. Remove regulator clamp bolt (E), then the regulator.
4. Reverse procedure to install. Ensure arrow on regulator is pointing toward throttle body adapter.
