Home
>>
Eagle
>>
1991
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine
>>
Early Production
>>

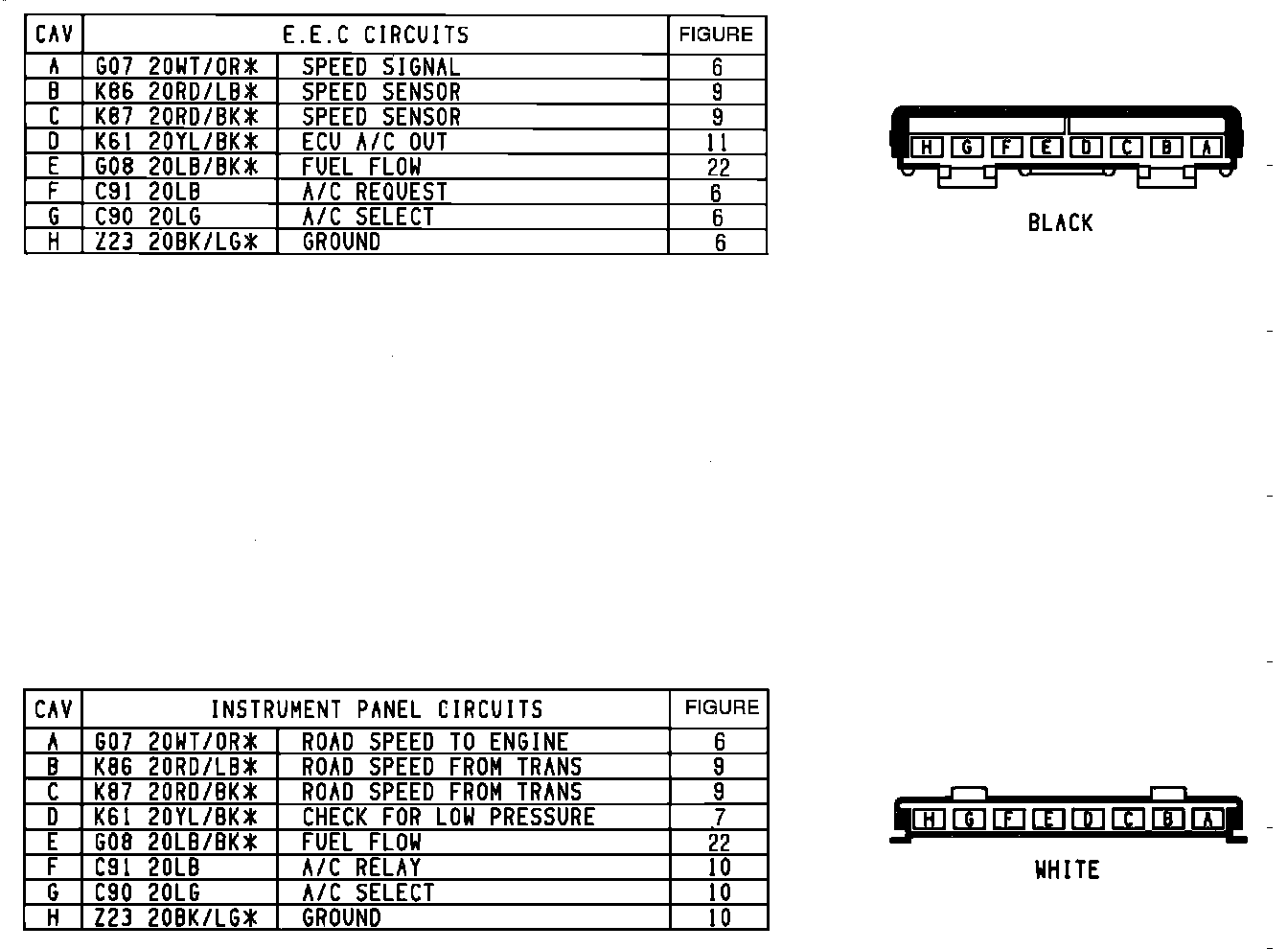

EEC to Instrument Panel Interconnect
EEC to Instrument Panel Interconnect
EEC To I/P Interconnect:
