Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Late Production >> Less Keyless Entry

Less Keyless Entry

Power Door Lock (Less Keyless Entry):

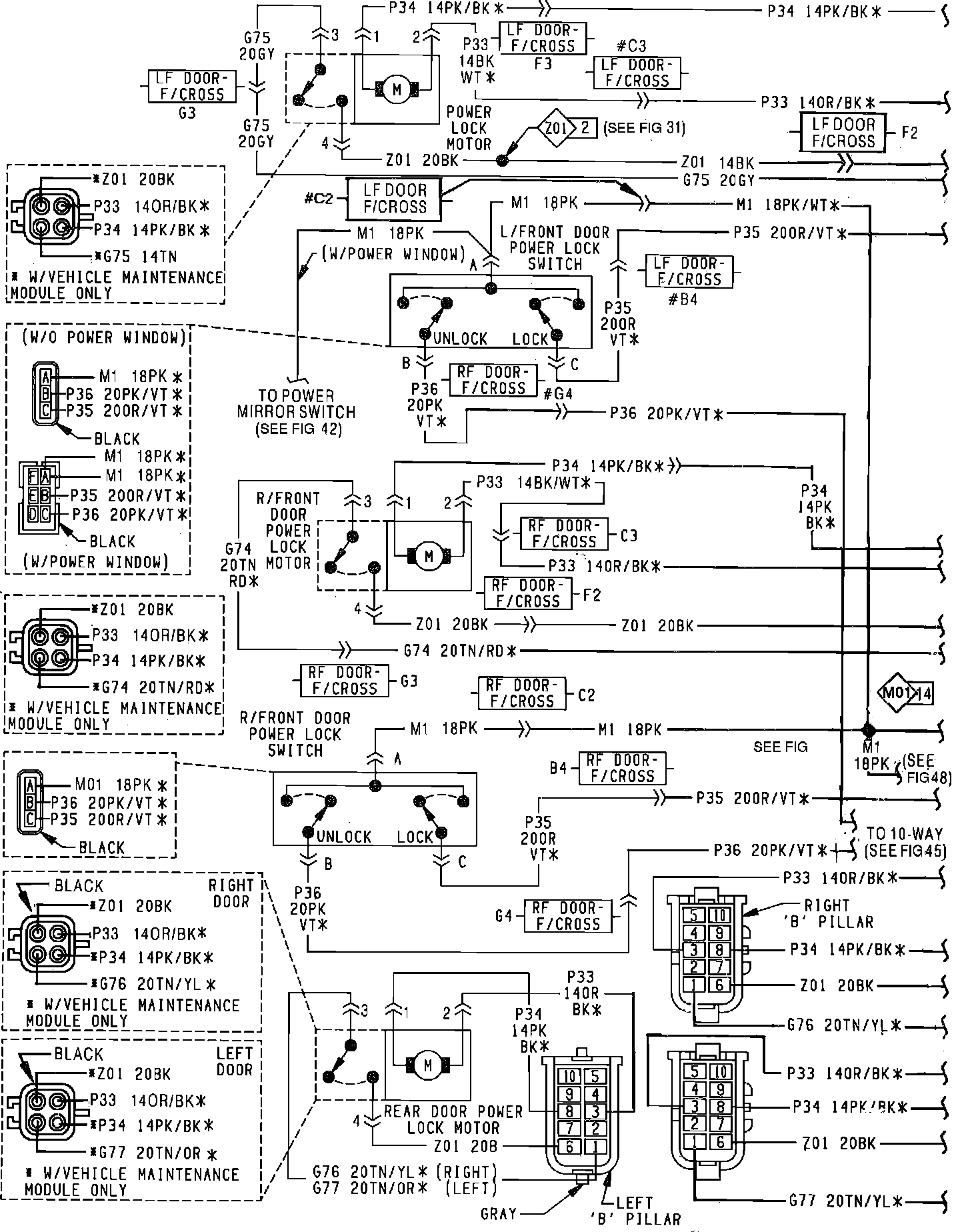

Power Door Lock (Less Keyless Entry):
