Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition Switch/System >> Late Production >> Part 4 of 5

Part 4 of 5

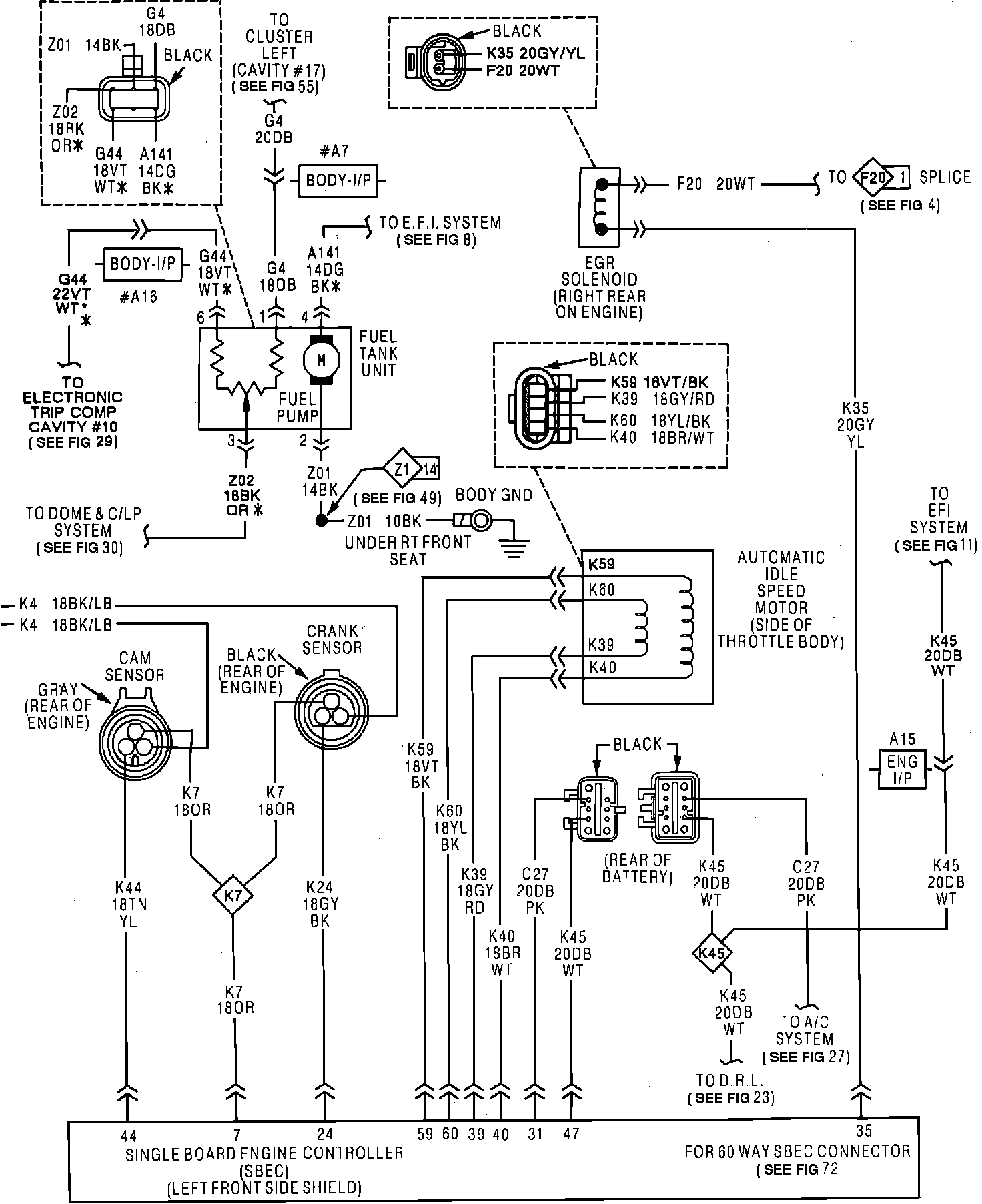

Engine Management & Ignition System:
