ABS - Service Manual Revision


9227amcjeep01

NO.:
05-52-92

GROUP:
Brakes

DATE:
Mar. 9, 1992


SUBJECT:
Service Manual Revision - ABS


MODELS:
1992 (B8) Summit Wagon








DISCUSSION:

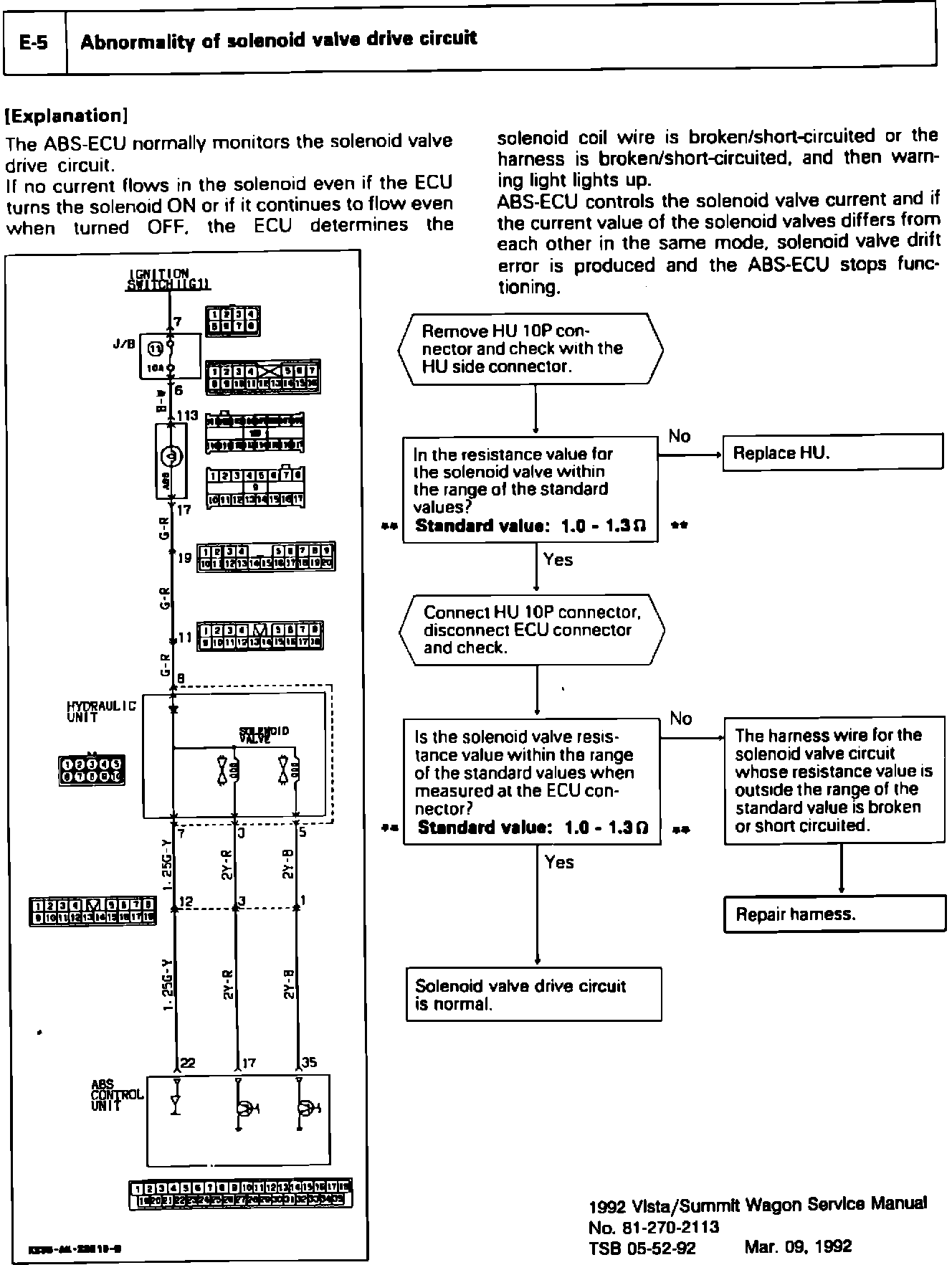

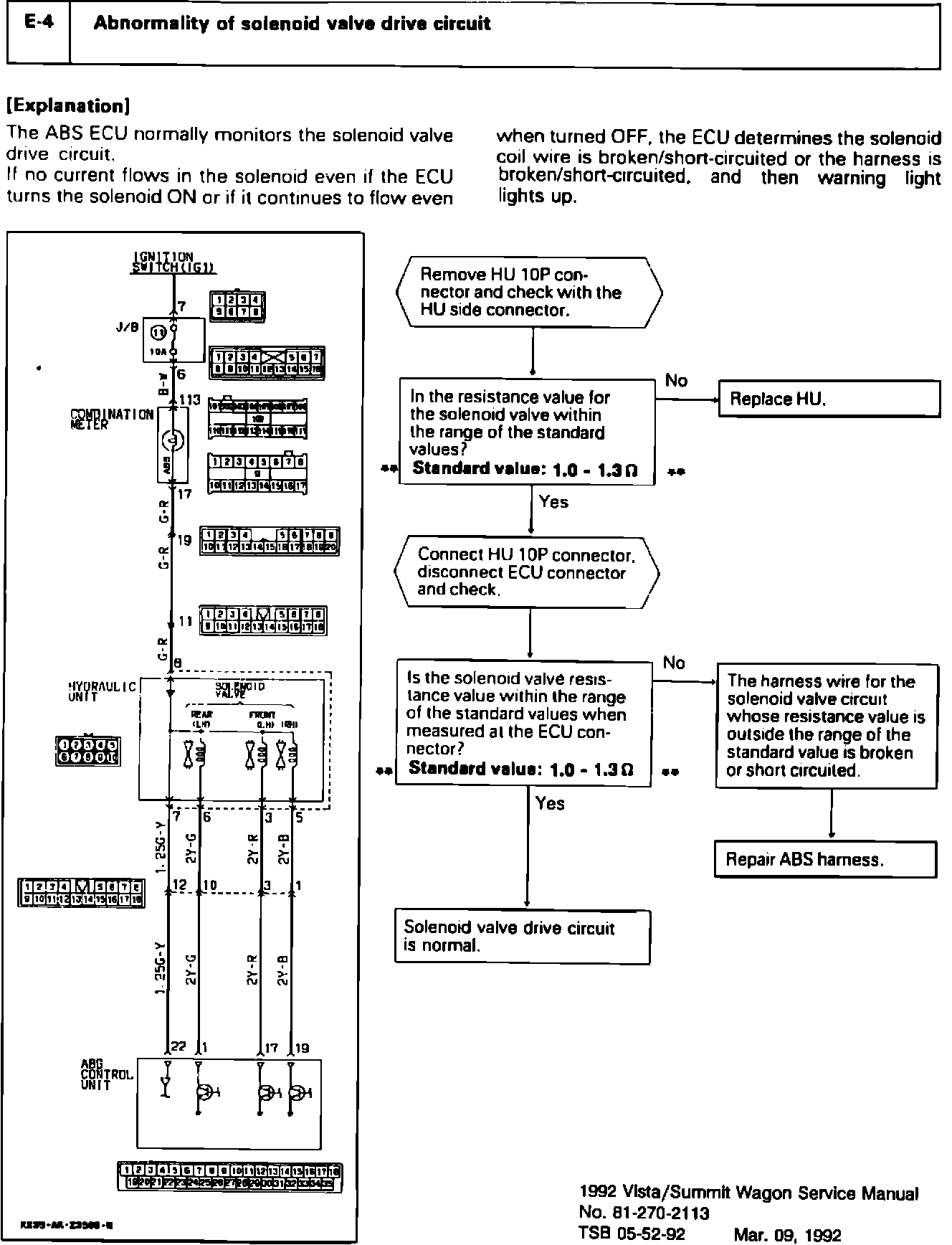

The ABS troubleshooting guide found in the listed manual has a Standard Value that is incorrect. The corrected value is 1.0 - 1.3 ohms, please insert the corrected page in the manual. The revisions are printed in red and highlighted with ** asterisks **.

The affected service manual is:

Manual Number Pages


1992 Vista/Summit 81-270-2113 5-22, 5-38
Wagon Service Manual


POLICY:
Information only.
