Home >> Eagle >> 1993 >> Summit L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 4 Speed >> Part 6 of 6

Part 6 of 6

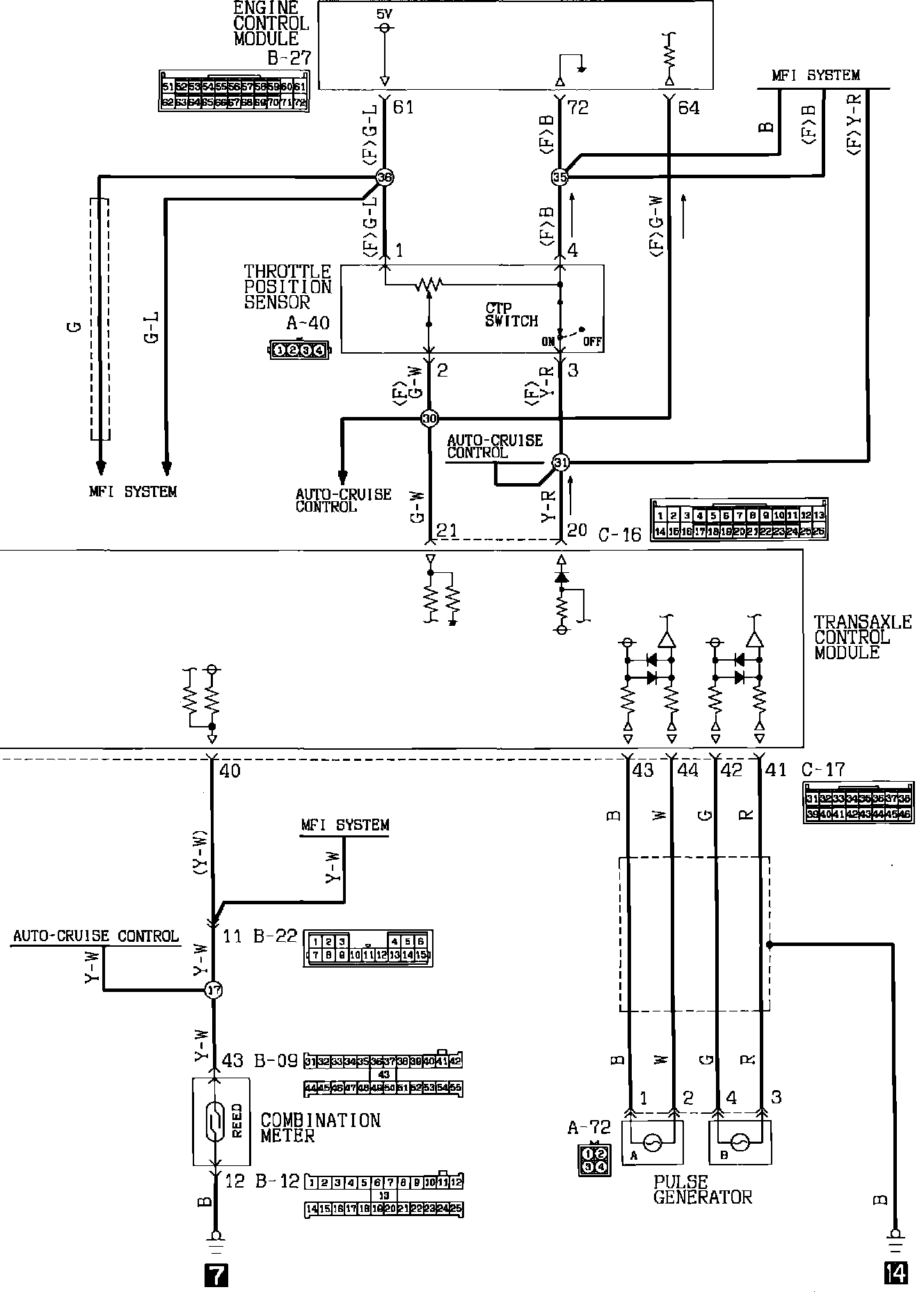

4 Speed Auto Transaxle Circuit:
