System Diagram
System Diagram

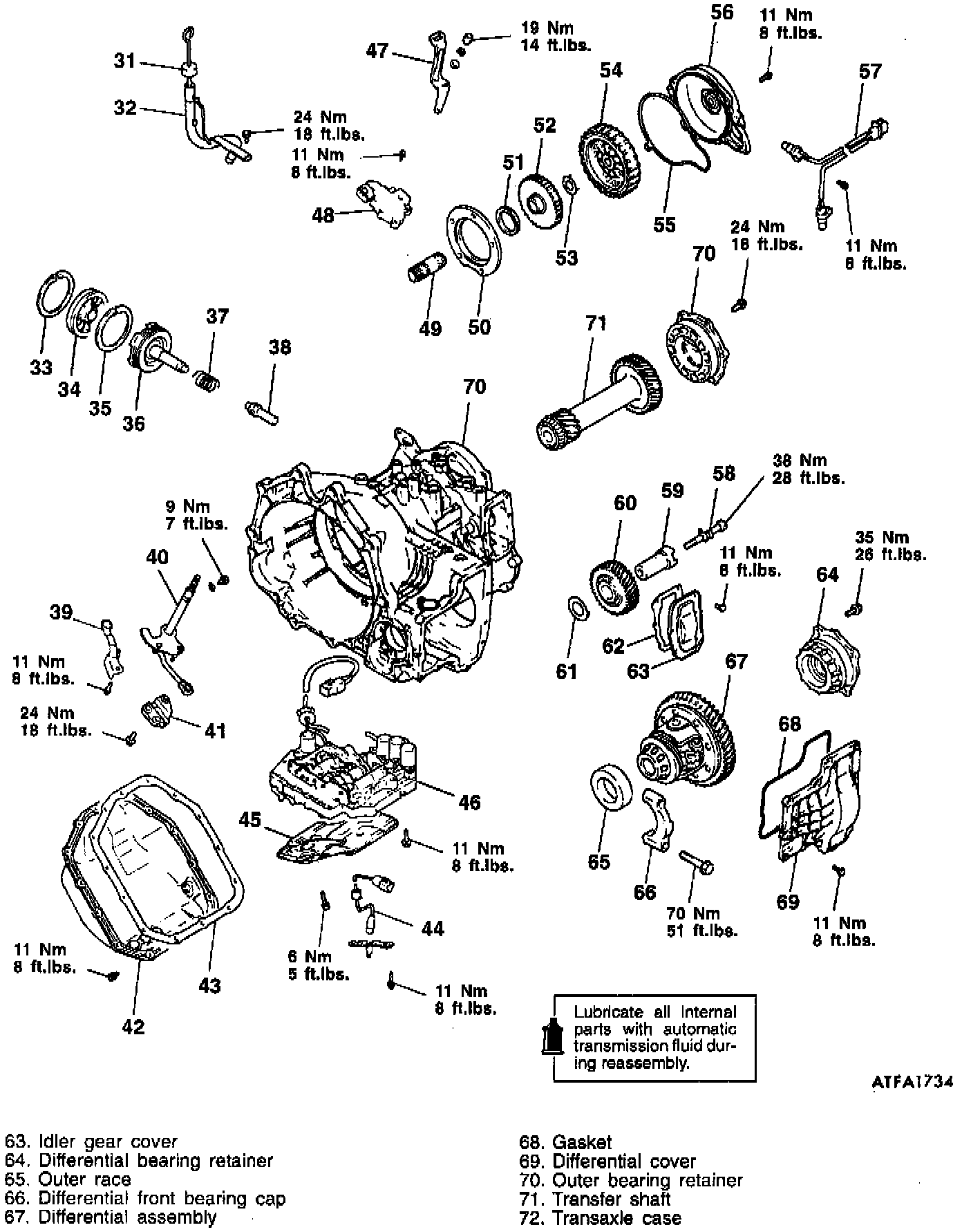

Front Wheel Drive Models:

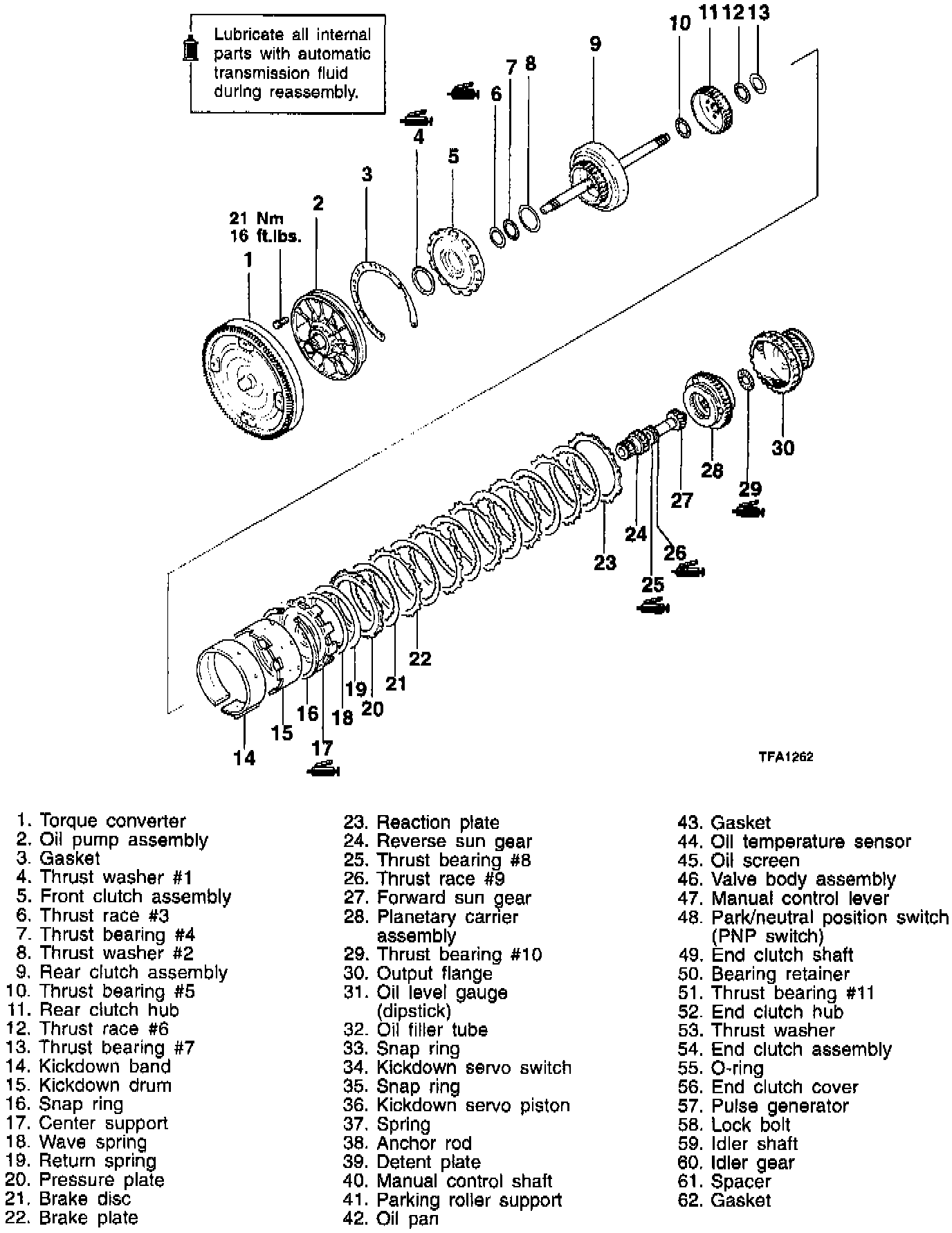

Front Wheel Drive Models:

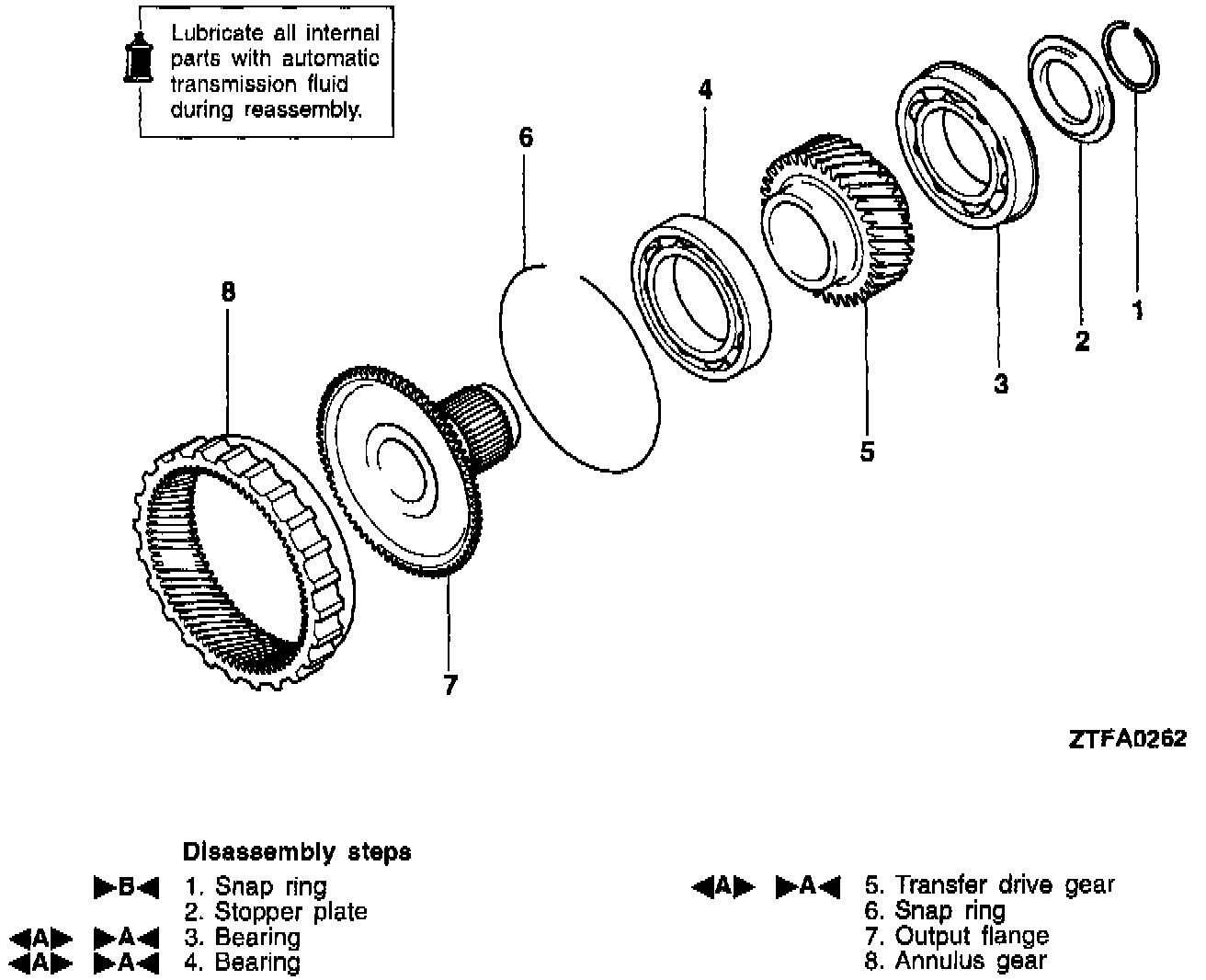

Annulus Gear and Transfer Drive Gear Set:

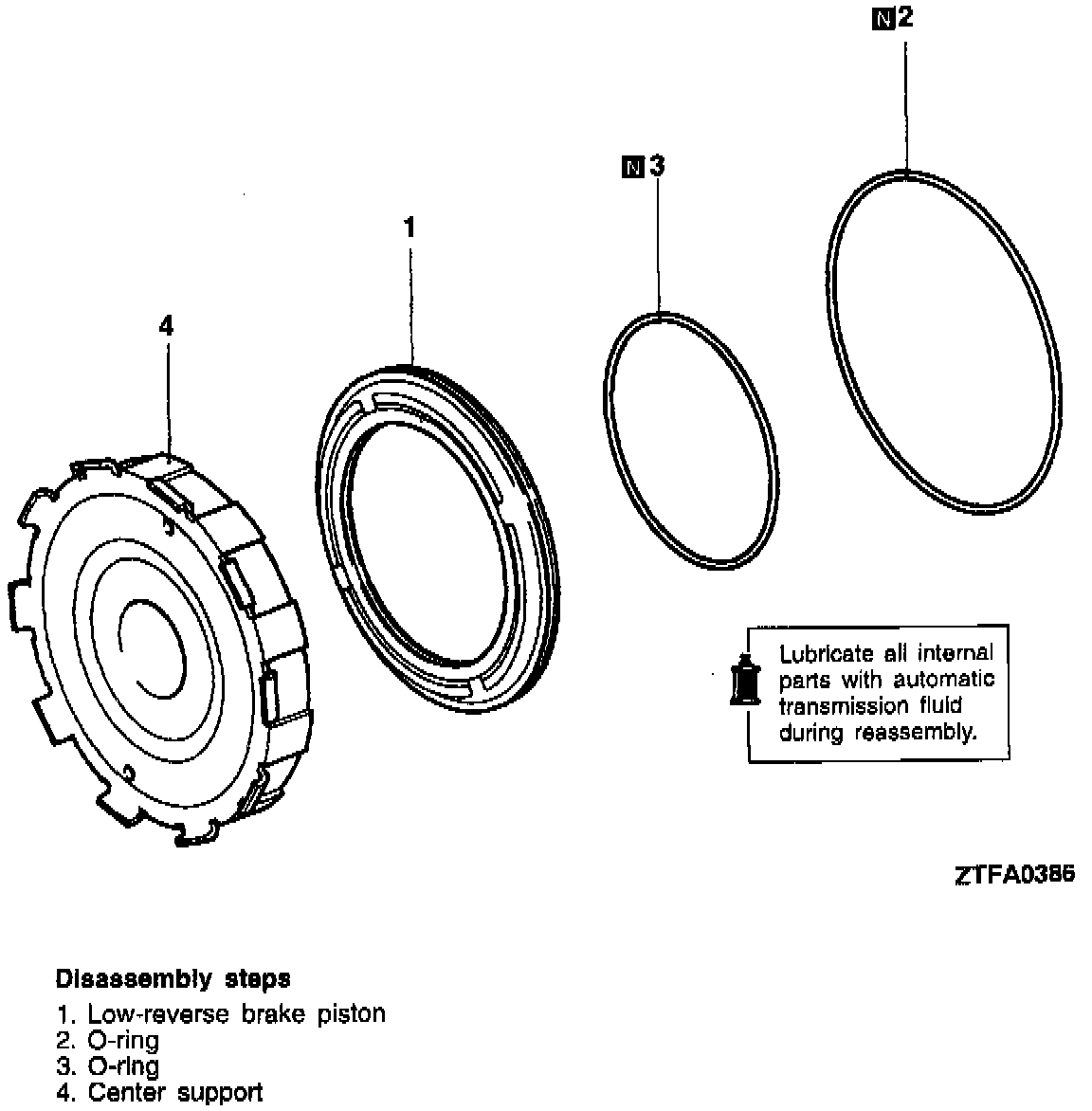

Low-Reverse Brake:

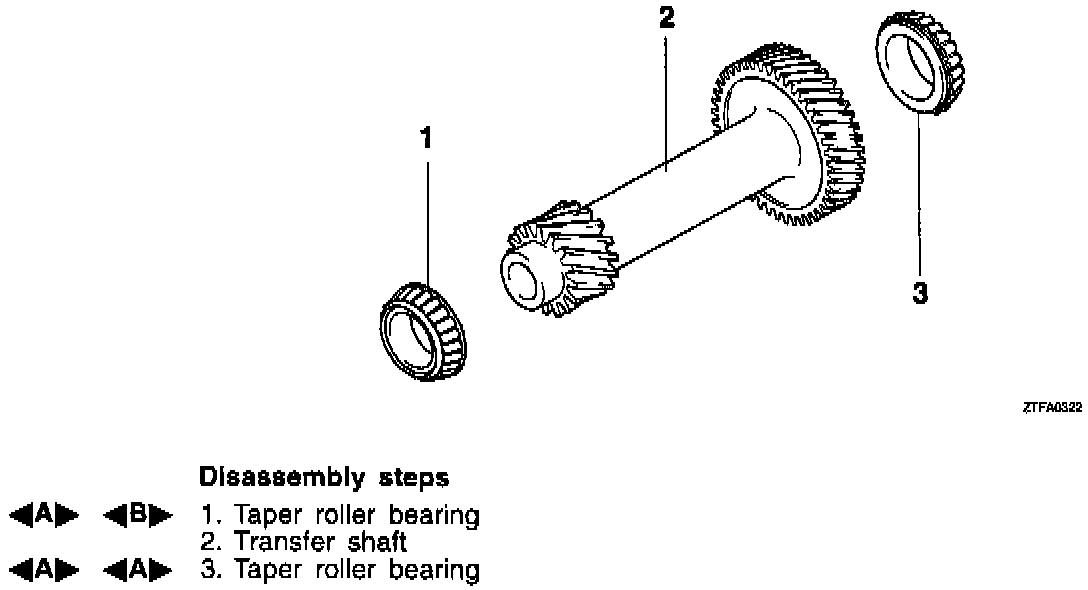

Transfer Shaft:
