Home >> Ford Truck >> 1982 >> E 250 Van V8-400 6.6L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams

Ignition System: Diagrams

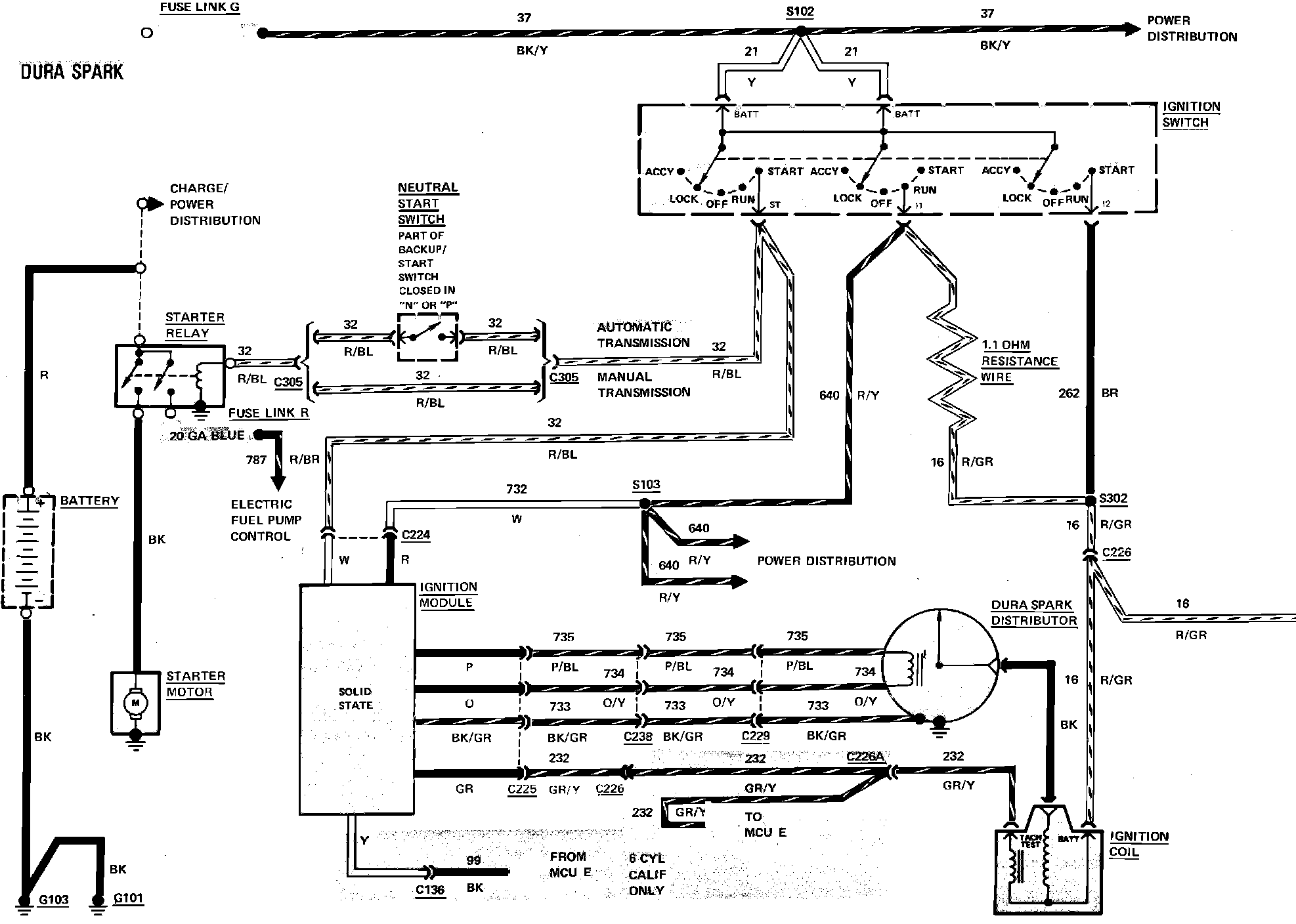

Fig. 85 Ignition & starting W/O EEC:



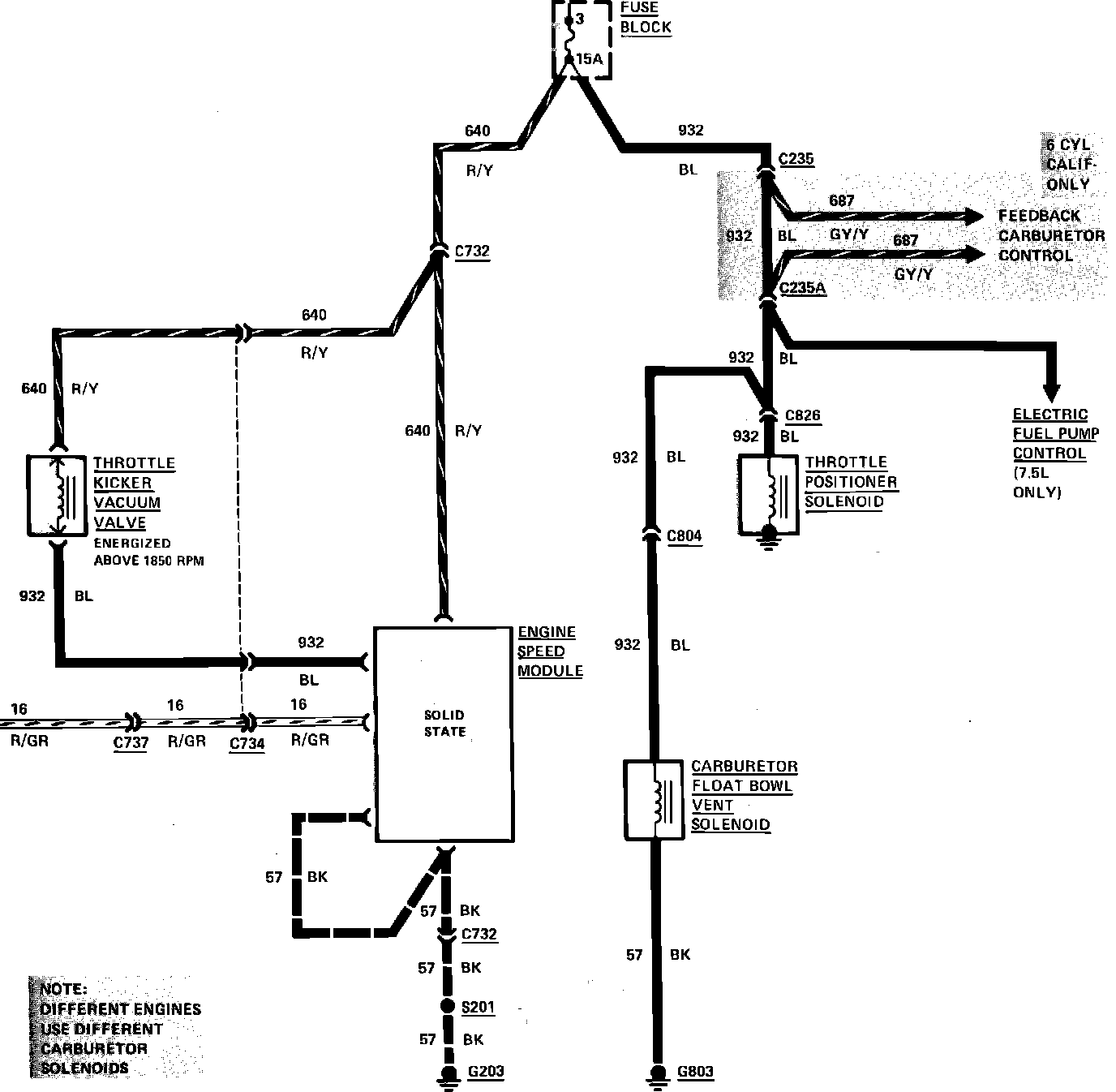

Fig.86 Ignition & starting EEC:
