Engine Control Module
Engine Control Module

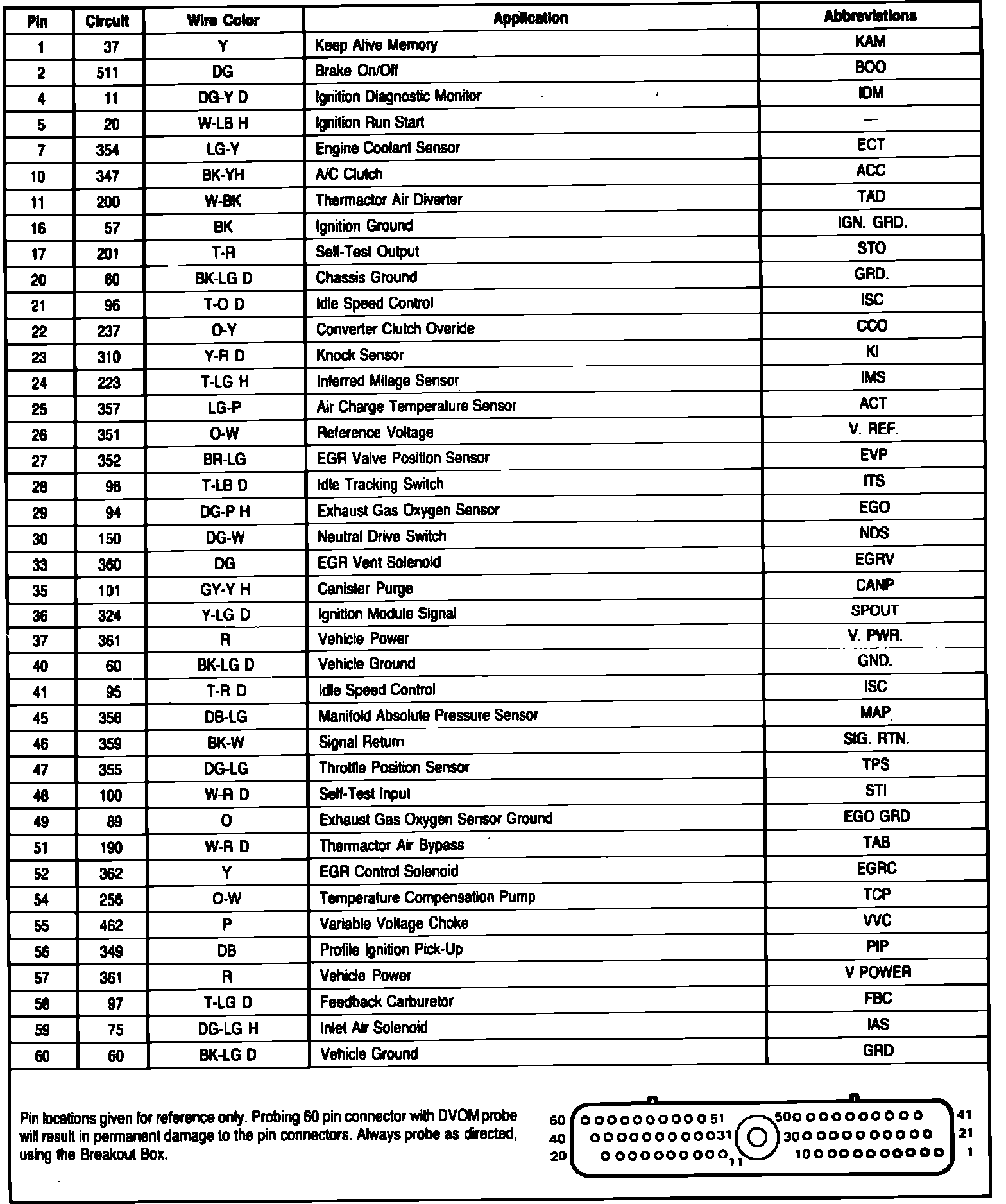

Fig. 126 EEC-IV connector terminal identification. 1985 V6-171:
