Engine Controls

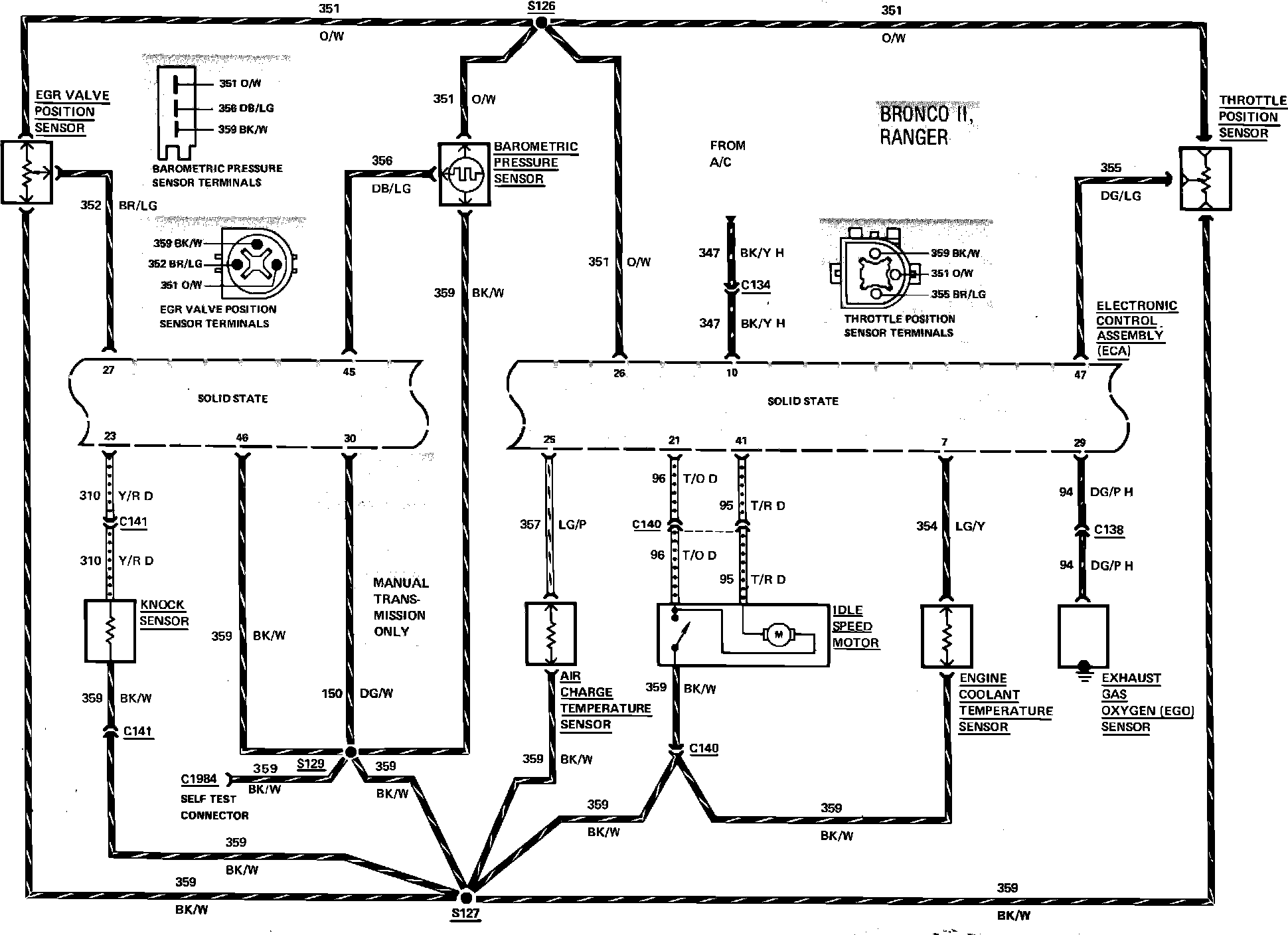

Fig. 17 Electronic Engine Control Wiring Circuit (Part 1 of 3). 1985 2.8 Litre:

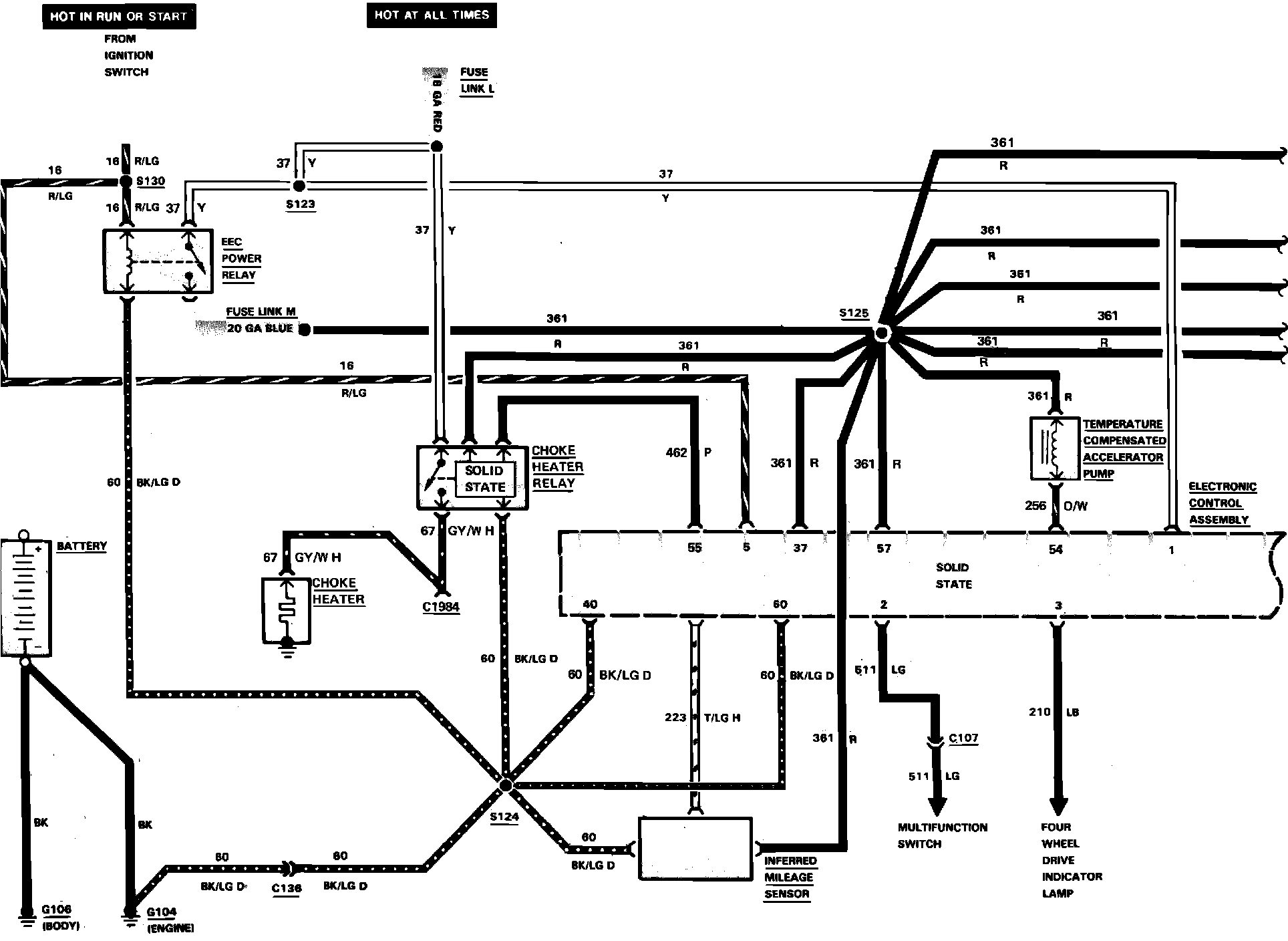

Fig. 17 Electronic Engine Control Wiring Circuit (Part 2 of 3). 1985 2.8 Litre:

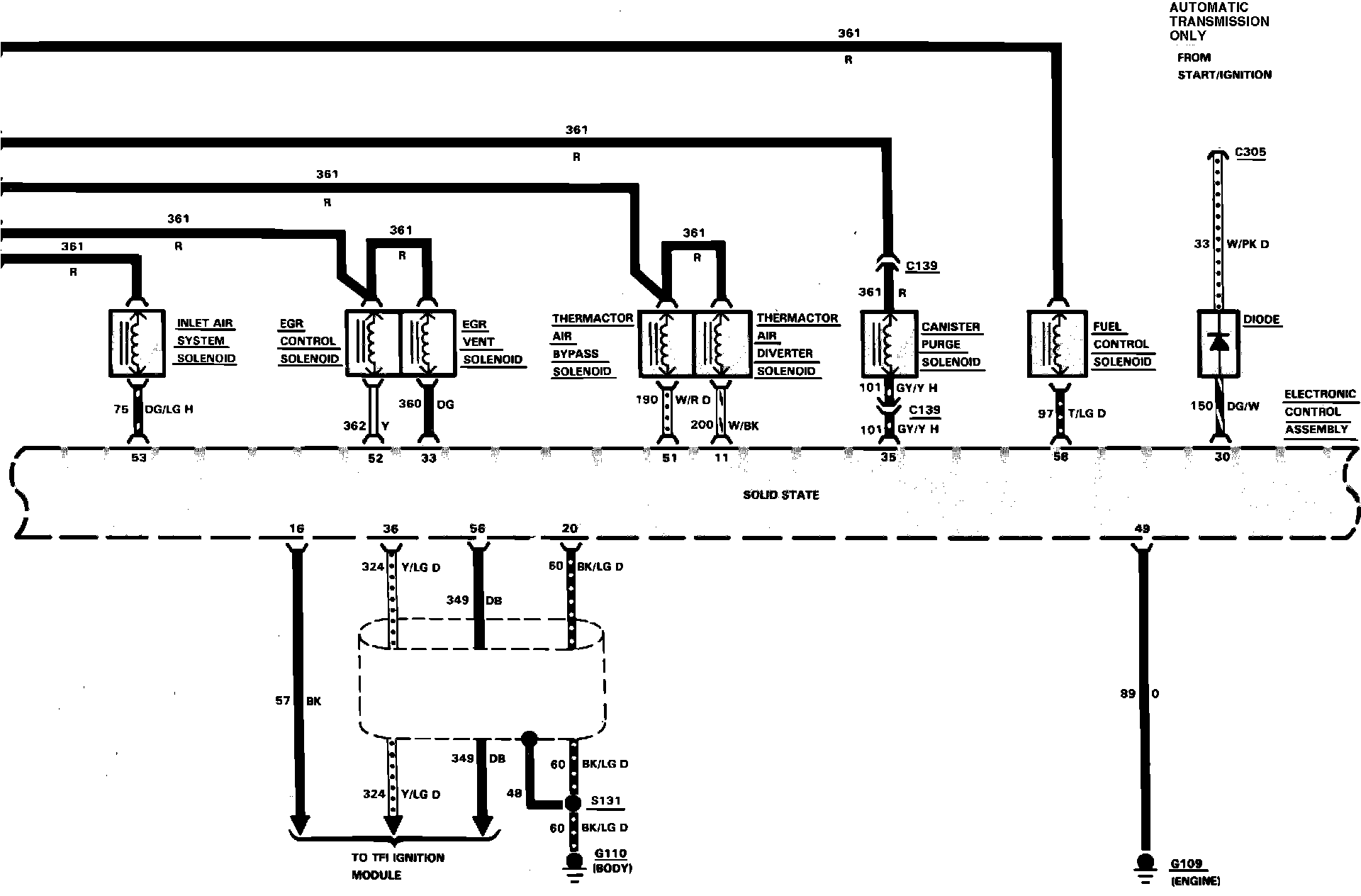

Fig. 17 Electronic Engine Control Wiring Circuit (Part 3 of 3). 1985 2.8 Litre:
