Engine Controls

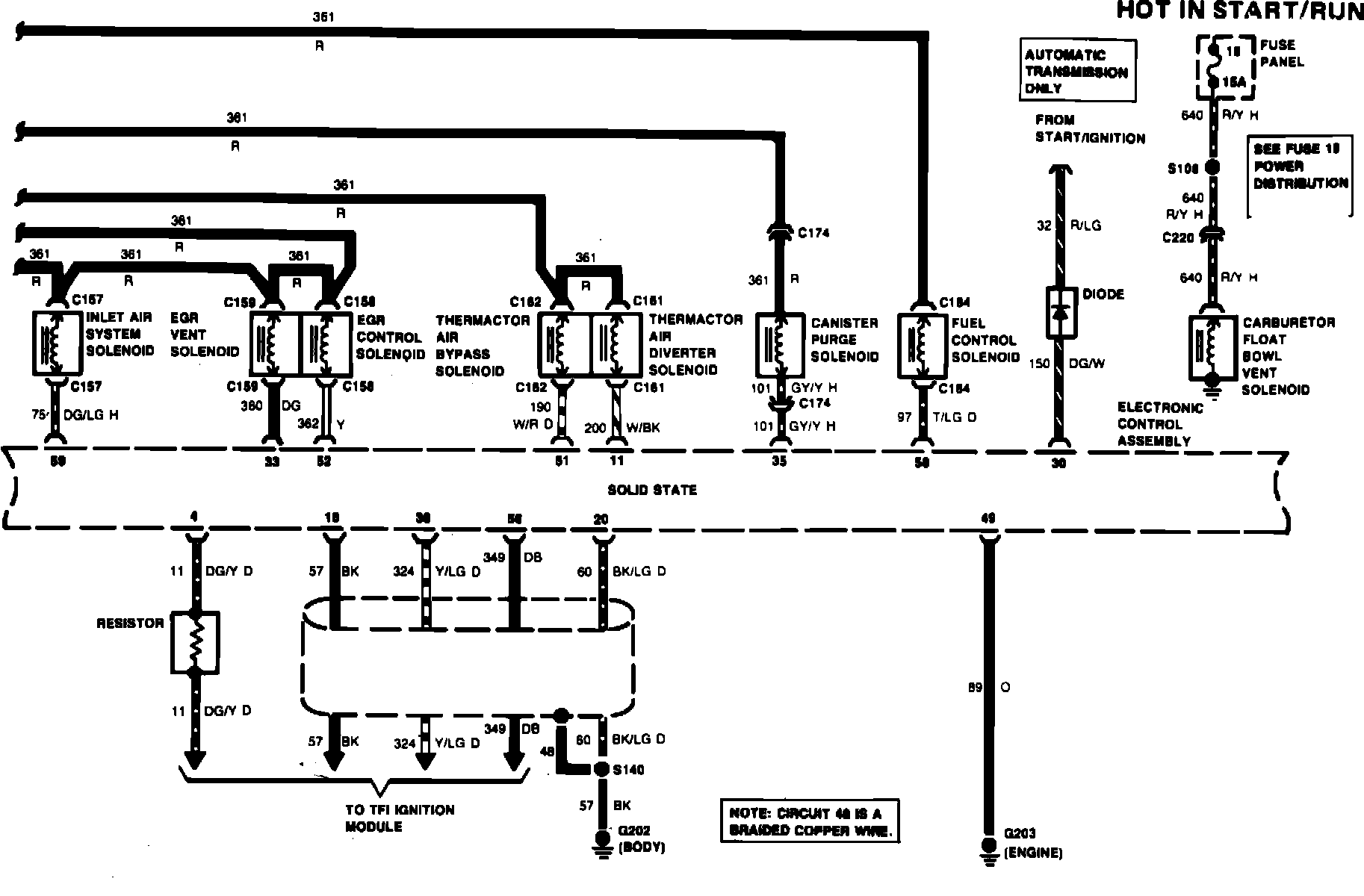

Fig. 14 Electronic Engine Control Wiring Circuit (Part 1 of 3). Models With 2.8L (V6-171) Engine:

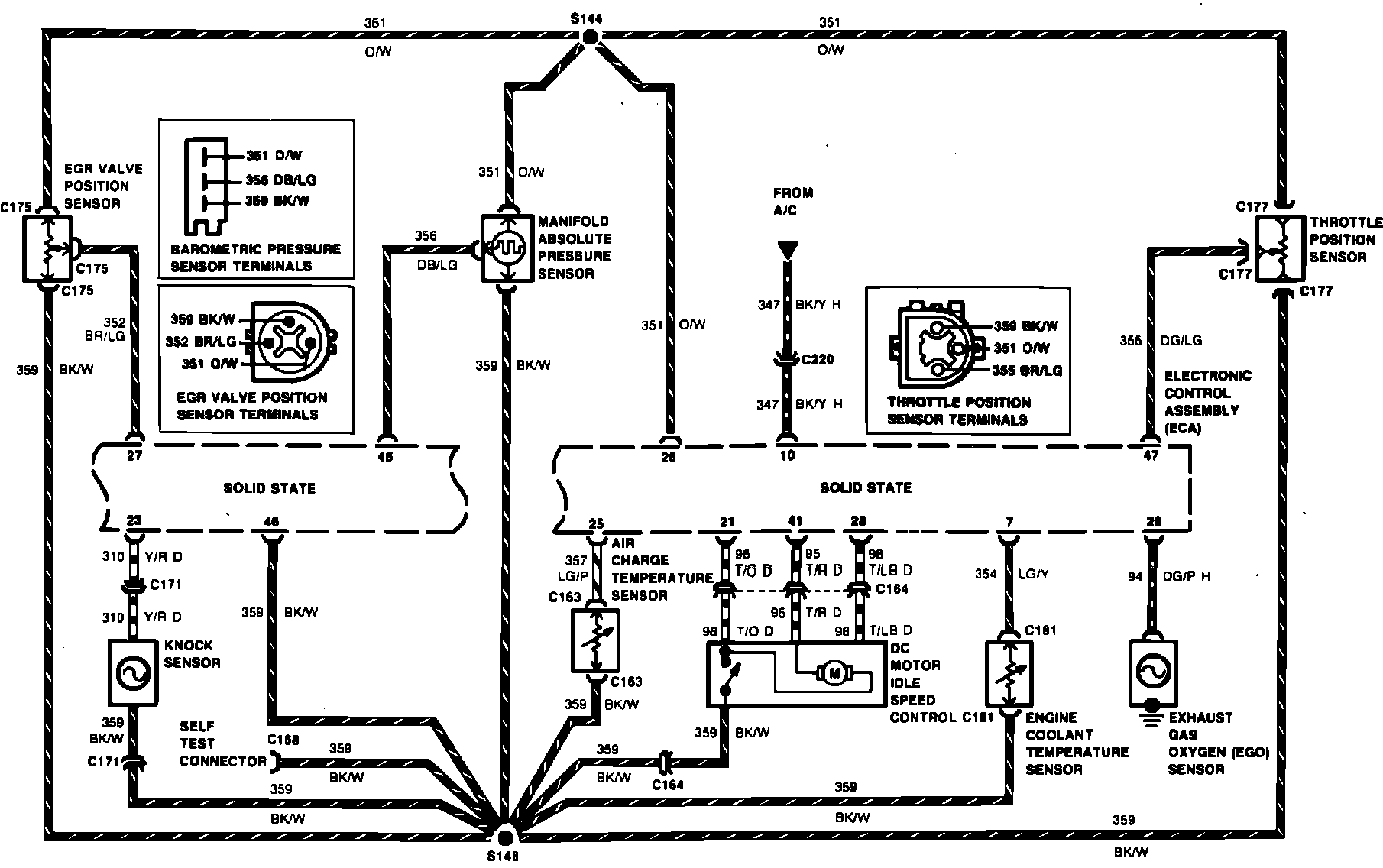

Fig. 14 Electronic Engine Control Wiring Circuit (Part 2 of 3). Models With 2.8L (V6-171) Engine:

Fig. 14 Electronic Engine Control Wiring Circuit (Part 3 of 3). Models With 2.8L (V6-171) Engine:
