Home >> Ford Truck >> 1986 >> Aerostar V6-171 2.8L >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Distributor >> Locations >> Component Locations

Component Locations

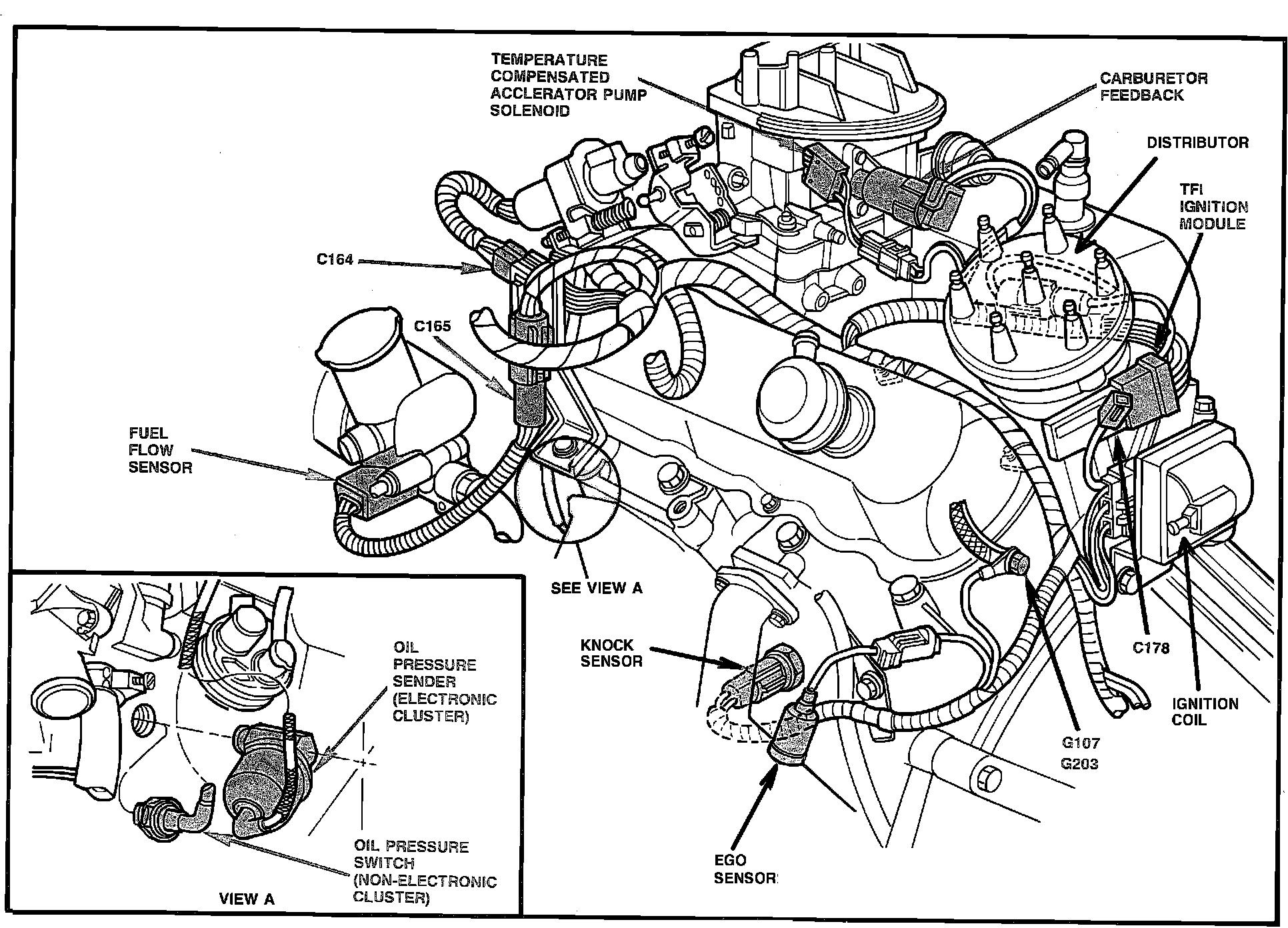

Component Locations - LH Side TFI-IV Ignition:
