Ford Truck
>>
1987
>>
Aerostar V6-183 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

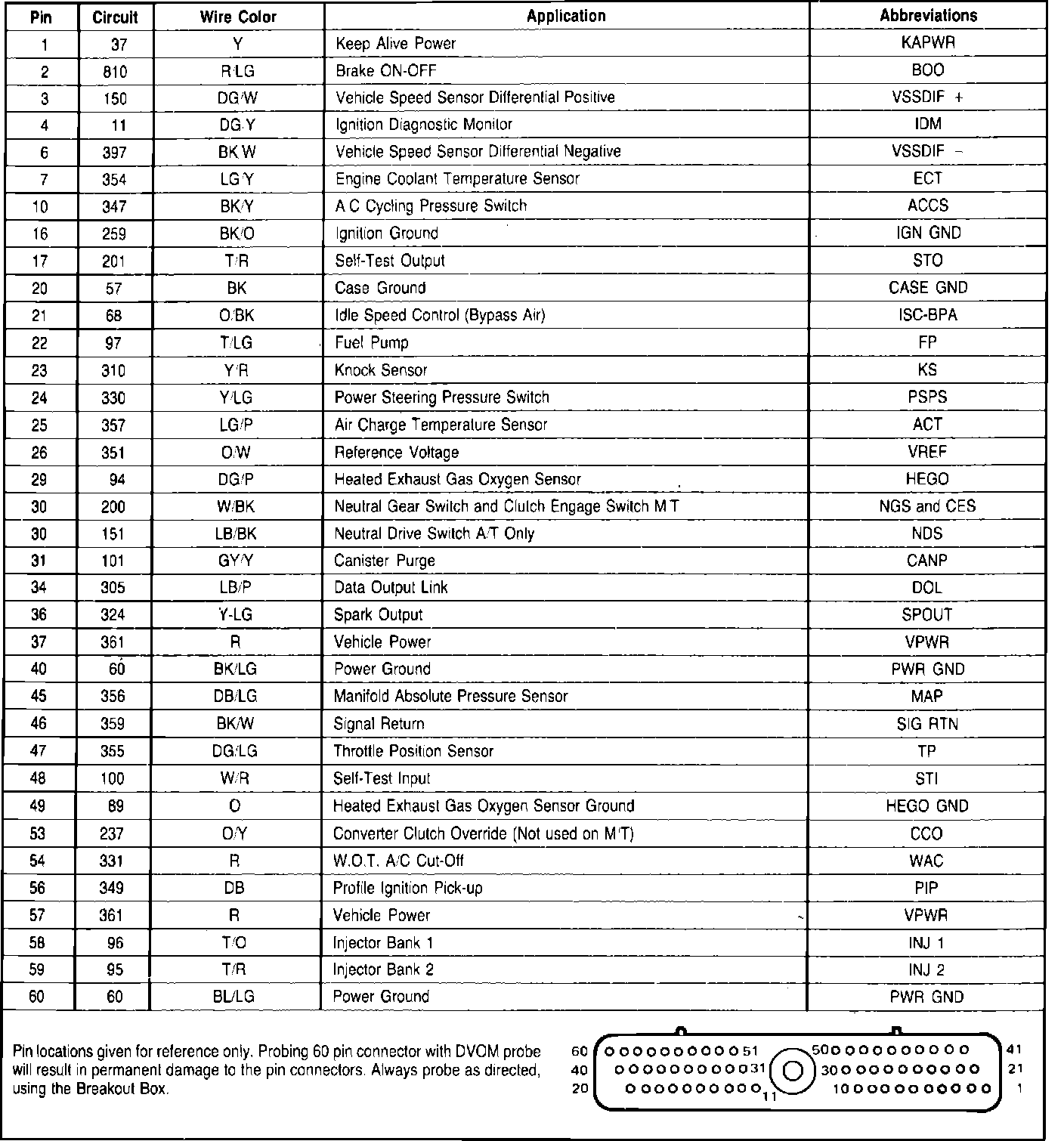

Fig. 207 EEC-IV connector terminal identification. 1987 V6-182:
