Engine Controls

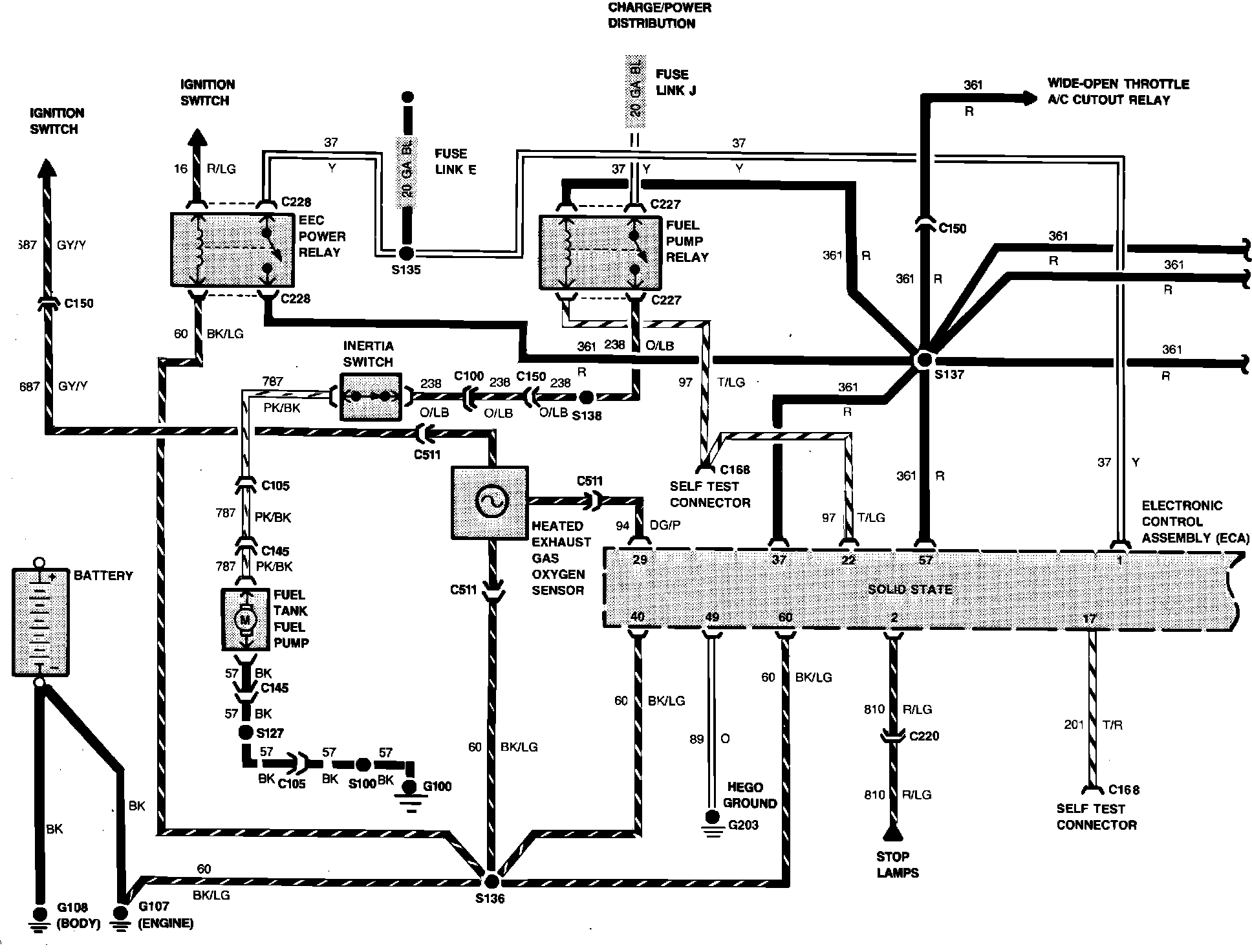

Fig. 10 Electronic Engine Control Wiring Circuit (Part 1 of 3). V6-181/3.0L Engine:

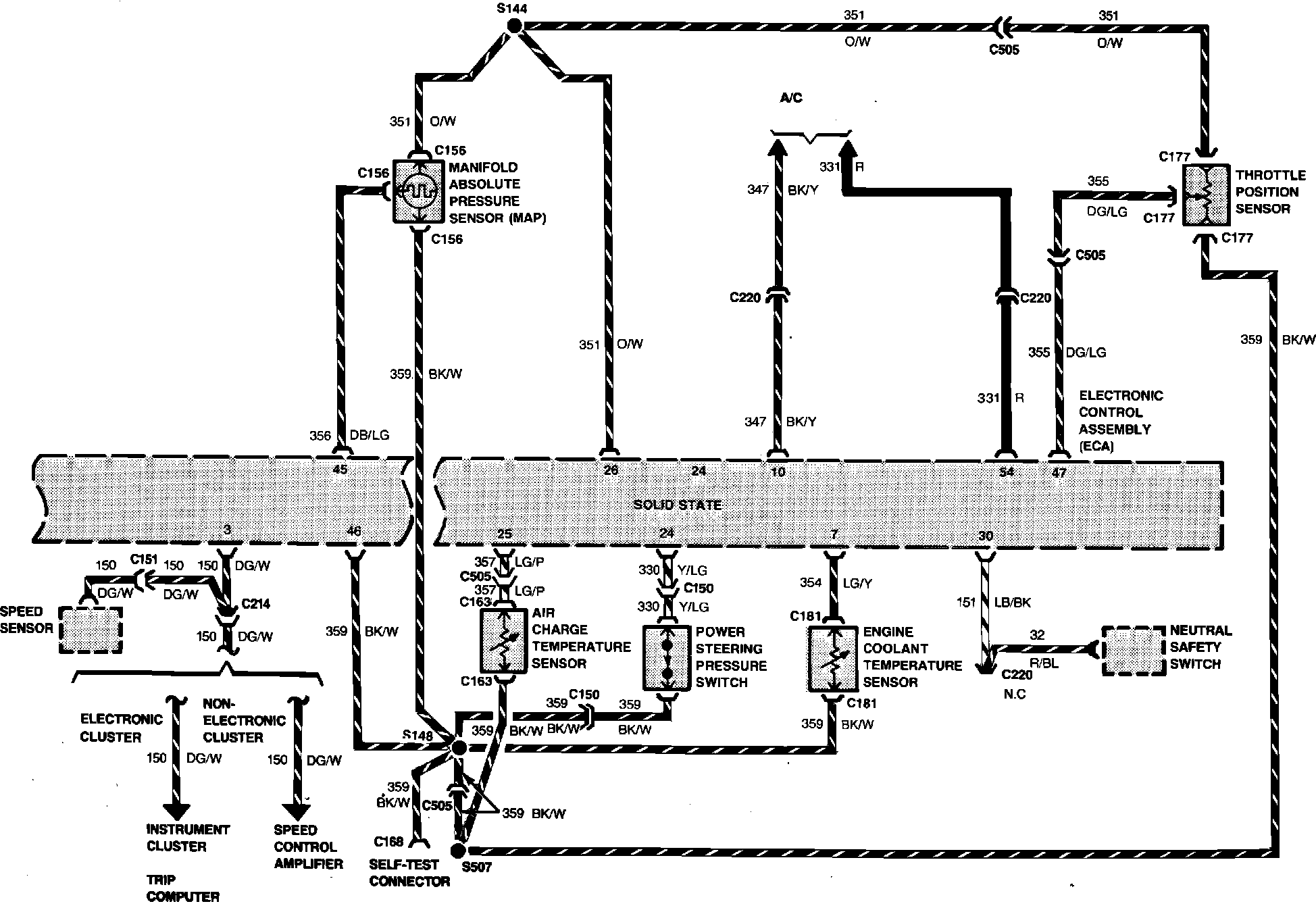

Fig. 10 Electronic Engine Control Wiring Circuit (Part 2 of 3). V6-181/3.0L Engine:

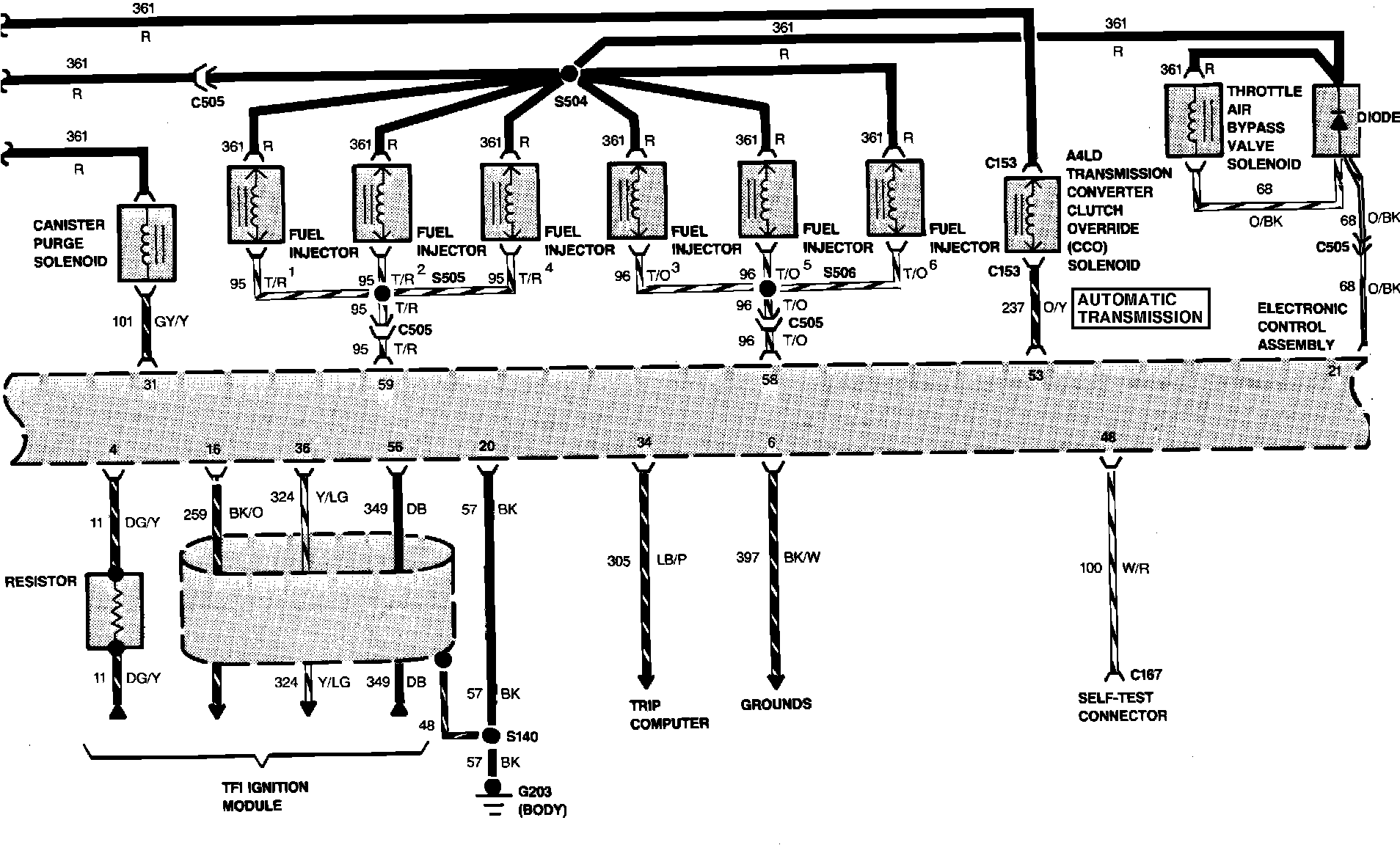

Fig. 10 Electronic Engine Control Wiring Circuit (Part 3 of 3). V6-181/3.0L Engine:
