General Engine Specifications

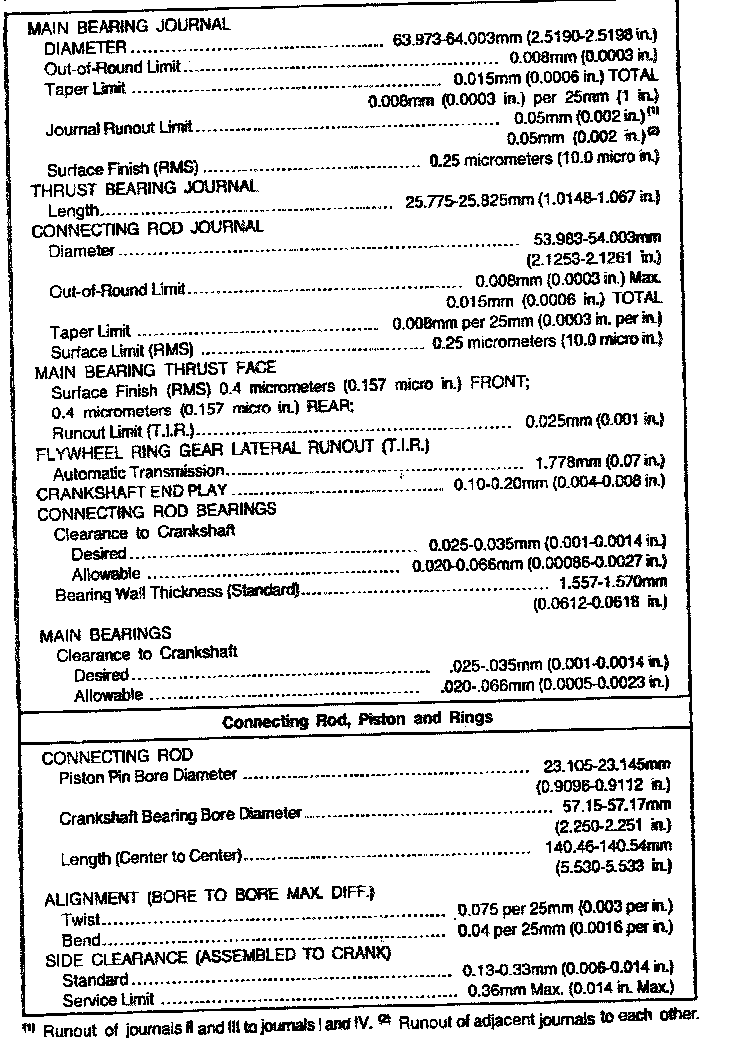

3.0L Engine Mechanical Data:

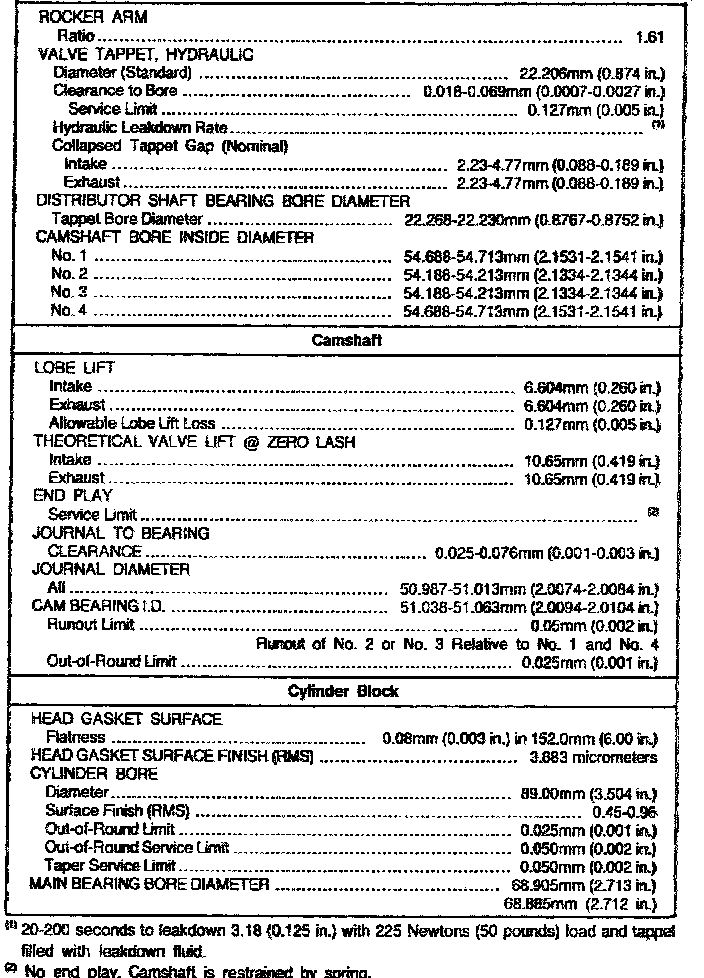

3.0L Engine Mechanical Cont.:

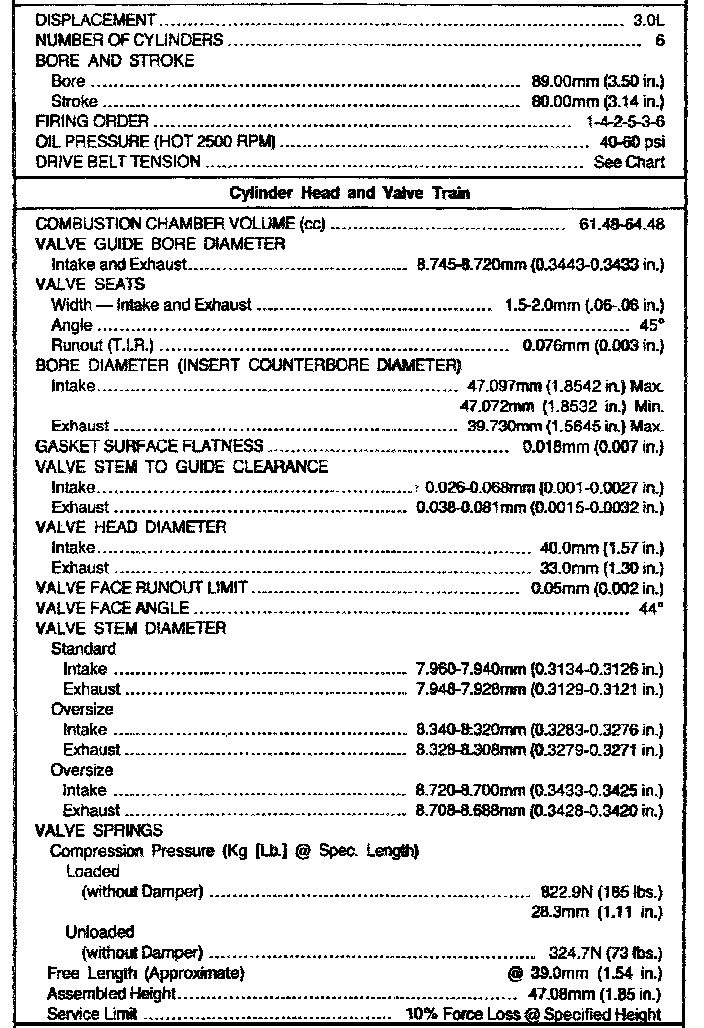

3.0L Engine Mechanical Cont.:

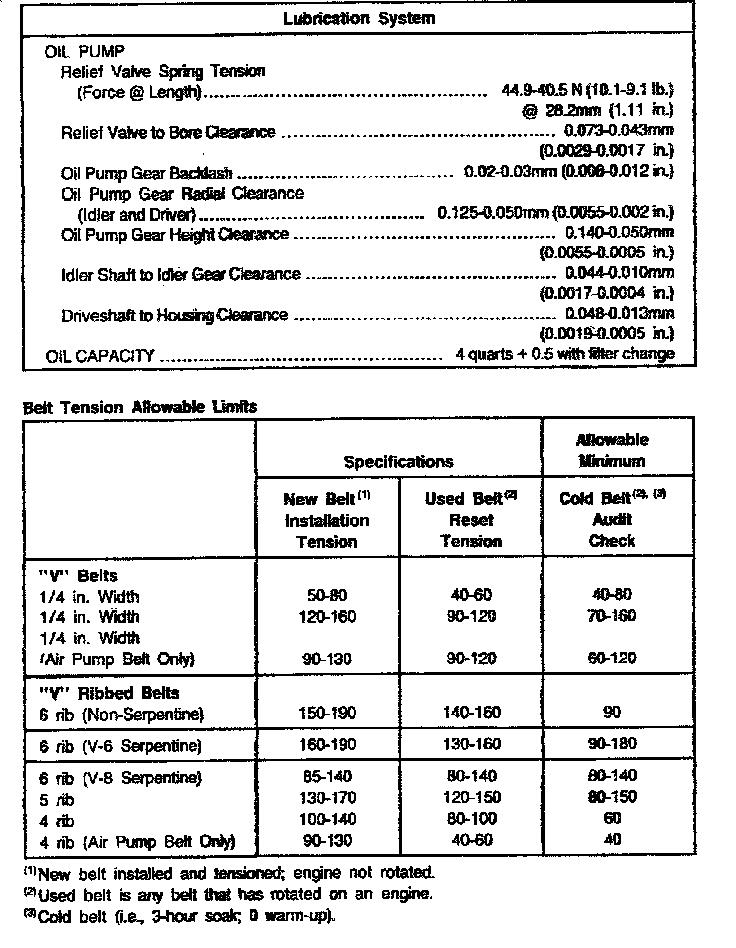

3.0L Engine Mechanical Cont.:

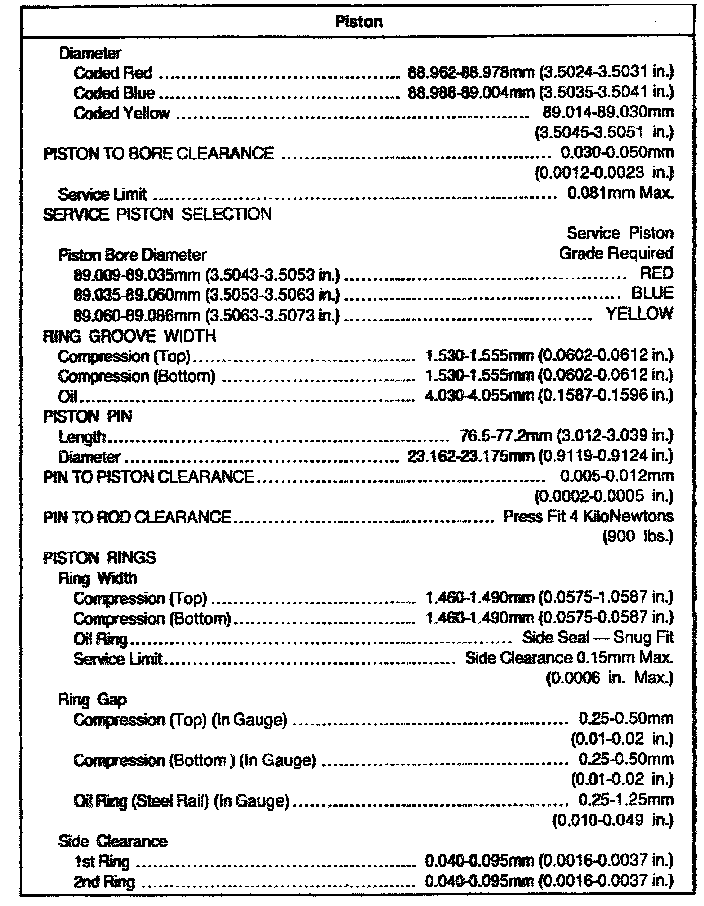

3.0L Engine Mechanical Cont.:
