System Diagram

The numbers and part descriptions shown in the key are basic part numbers corresponding with the Ford Master Parts Catalog.

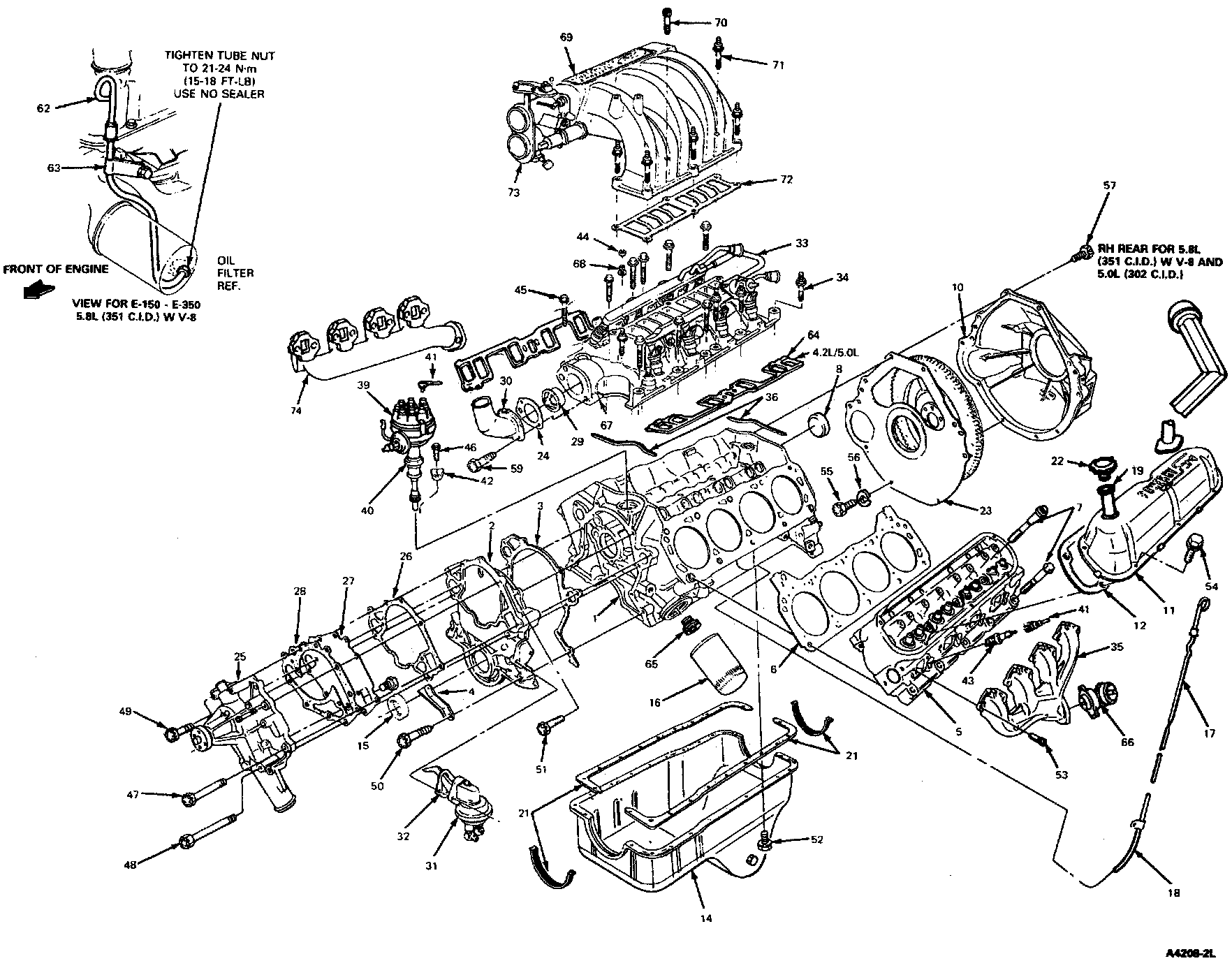

External Exploded View:

REFERENCE BASIC PART DESCRIPTION
NUMBER NUMBER

1 6009 Cylinder Assembly - (Includes internal parts)
2 6059 Cover Assembly - Cylinder Front
3 6020 Gasket - Cylinder Front Cover
4 6M025 Pointer - Timing
5 6049 Head - Cylinder
6 6051 Gasket - Cylinder Head
7 6065 Bolt - Cylinder Head
8 6266 Plug - Camshaft Rear Bearing
9 6375 Flywheel Assembly
10 6392 Housing Assembly - Flywheel
11 6582 Cover Assembly - Valve Rocker Arm (RH)
-- 6A513 Cover Assembly - Valve Rocker Arm (LH)
12 6584 Gasket - Valve Rocker Arm Cover
13 6853 Hose - Positive Crankcase Ventilation (P.C.V.)
14 6675 Pan Assembly - Oil
15 6700 Seal - Cylinder Front Cover
16 6714 Element Assembly - Oil Filter
17 6750 Indicator - Oil Level
18 6784 Tube Assembly - Oil Level Indicator
19 6763 Fill Pipe - Oil
20 6853 Tube - Positive Crankcase Ventilation
21 6710 Gasket Set - Oil Pan
22 6766 Cap Assembly - Oil Filter
23 7007 Plate Assembly - Engine Rear
24 8255 Gasket - Water Outlet Connection
25 8501 Pump Assembly - Water
26 8507 Gasket - Water Pump Housing
27 8508 Cover - Water Pump
28 8513 Gasket - Water Pump Cover
29 8575 Thermostat - Water
30 8592 Connection - Water Outlet
31 9350 Pump Assembly - Fuel
32 9417 Gasket - Fuel Pump Mounting
33 9F792 Rail Assembly - Fuel
34 ---- Stud
35 9431 Manifold - Exhaust (LH)
36 9433 Gasket Set - Manifold
37 ---- Gasket - Upper to Lower Intake Manifolds
39 12106 Distributor - Cap
40 12127 Distributor Assembly
41 12259 Wire Set - Spark Plug
42 12270 Clamp - Distributor
43 12405 Spark Plug Assembly
44 ---- Nut
45 ---- Bolt
46 20386-S Bolt - 5/16 - 18 x 1"
47 388433 Bolt - 5/16 - 18 x 5.40"
48 388434 Bolt - 5/16 - 18 x 6.60"
49 389083 Bolt - 5/16 - 18 x 2.70"
50 56126-S Bolt - 5/16 - 18 x 2"
51 376255 Bolt or Screw - 5/16 - 18 x 1"
52 373564-S Bolt - 5/16 - 18 x 1-7/8"
53 381731-S Bolt - 3/8 - 16 x 1-7/8"
54 356748 Bolt 1/4 - 20 x 5/8"
55 20346-S Bolt - 5/16 - 18 x 3/4
56 34806-S Washer - Lock 5/16 x 19/32 x 5/64"
57 20508-S Bolt - 7/16 - 14 x 1-3/4"
58 34808-S Washer - Lock - 7/16"
59 ---- Bolt - 5/16 - 18
62 6750 Indicator - Oil Level
63 6754 Tube Assembly - Oil Level Indicator
64 9439 Gasket Intake Manifold
65 6890 Insert - Oil Filter Adapter
66 9A427 Valve Assembly - Exhaust Heat Control
67 9K461 Lower Intake Manifold Assembly
68 ---- Clip
69 9425 Upper Intake Manifold
70 ---- Screw
71 ---- Stud
72 ---- Gasket
73 9E926 Throttle Body
74 9430 Manifold - Exhaust (RH)
