Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
1991
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
Ignition Coil

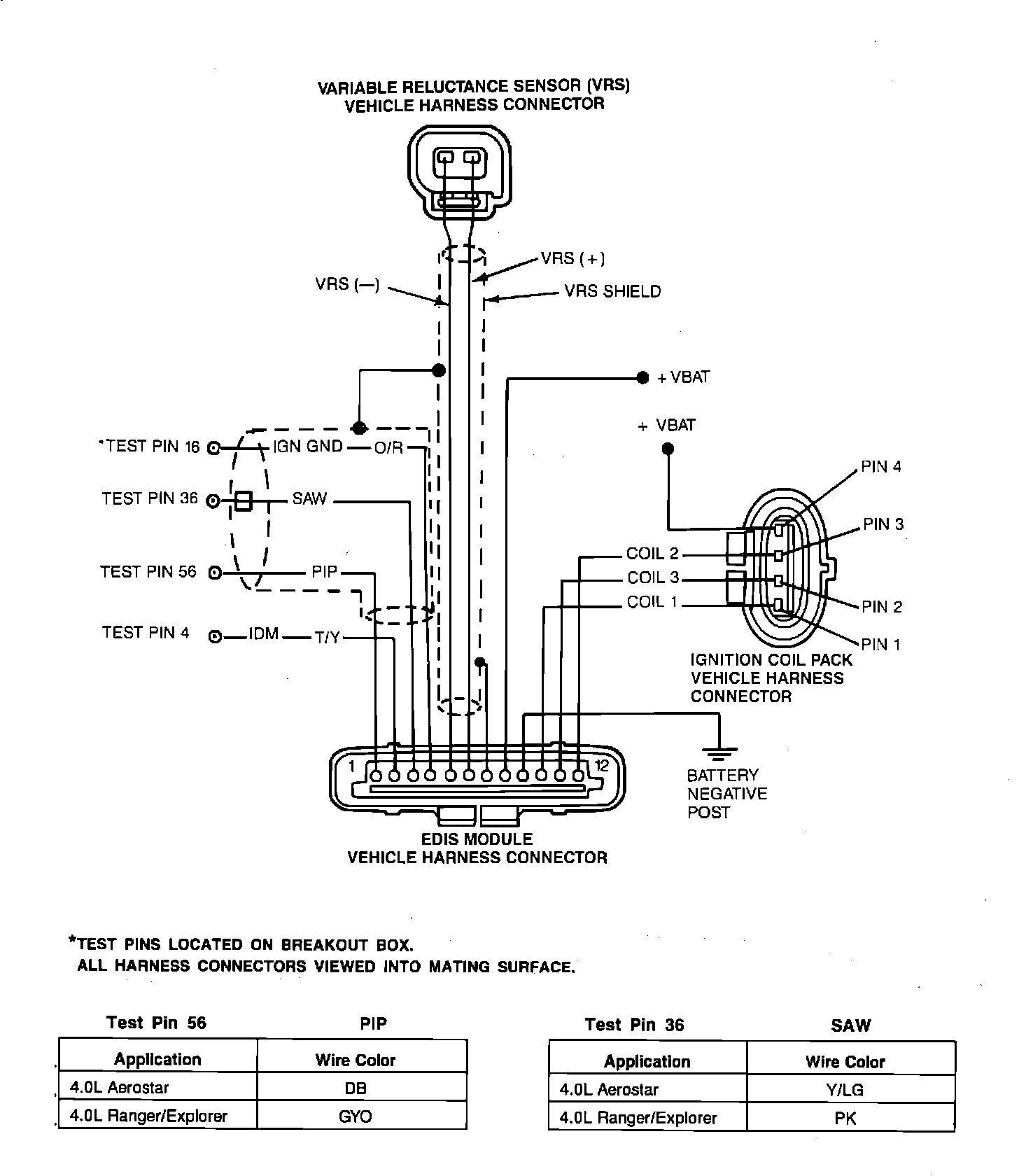

EEC-IV Pinpoint Test:

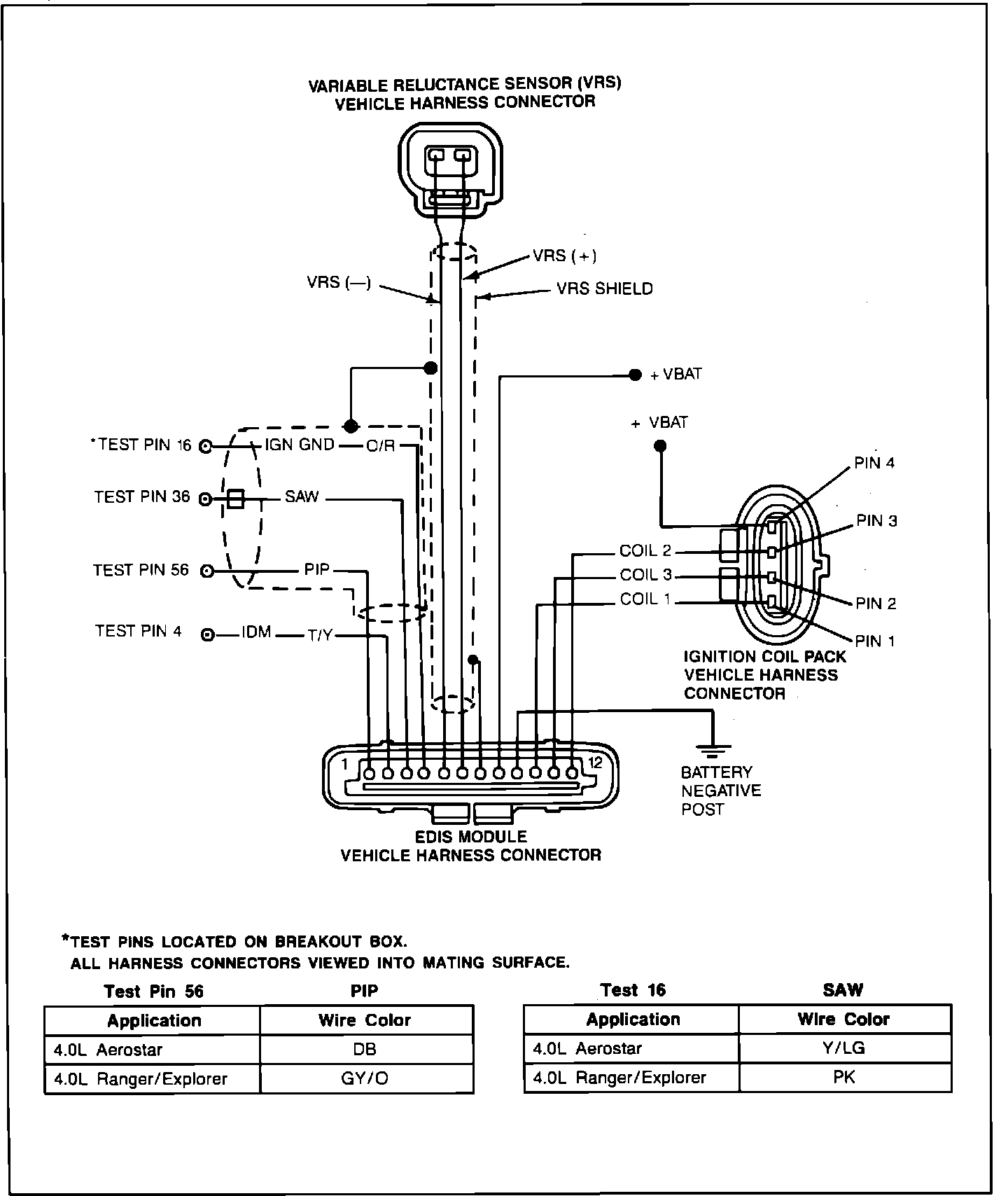

EEC-IV Pinpoint Test:
