Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
1991
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
System Diagram

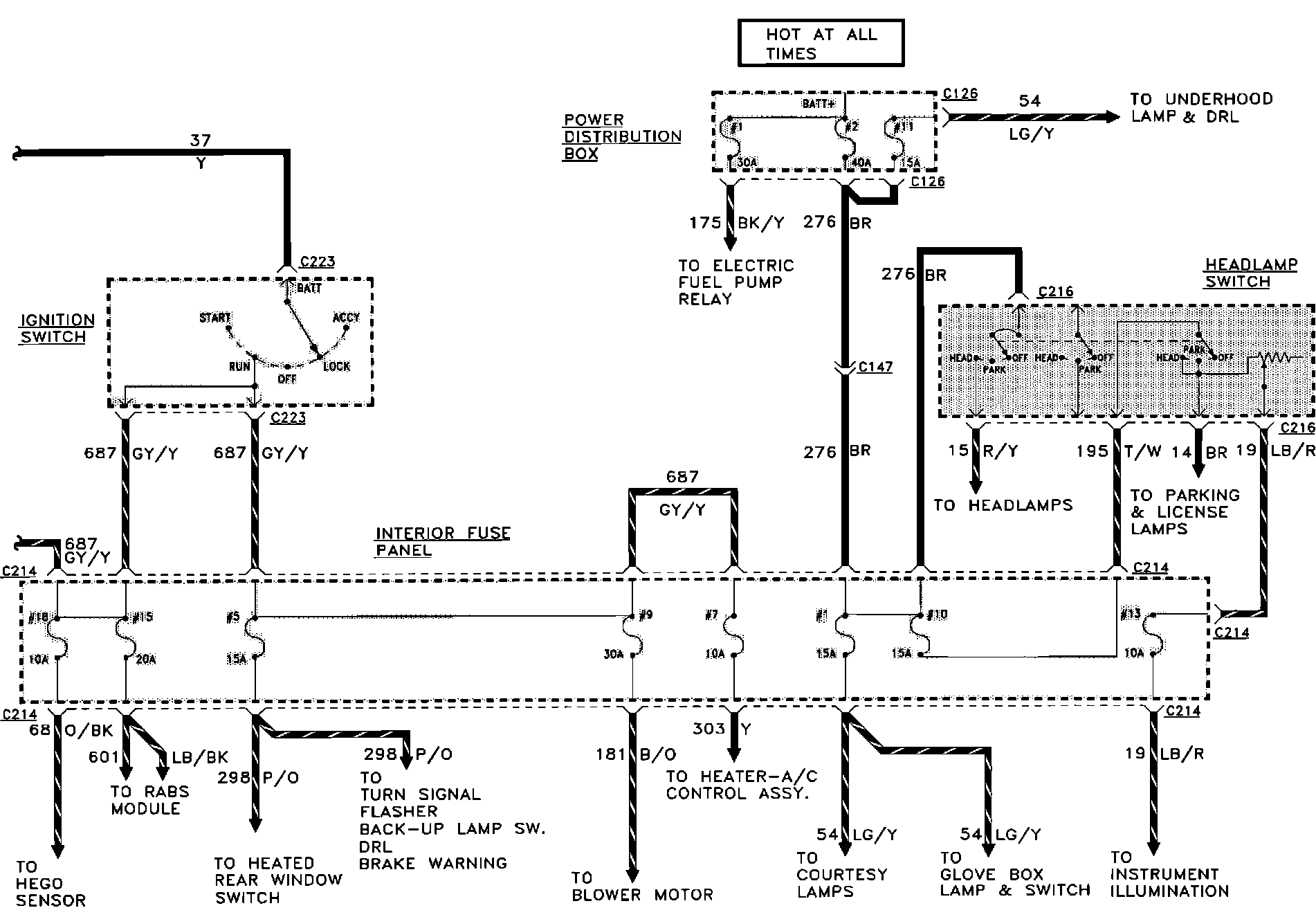

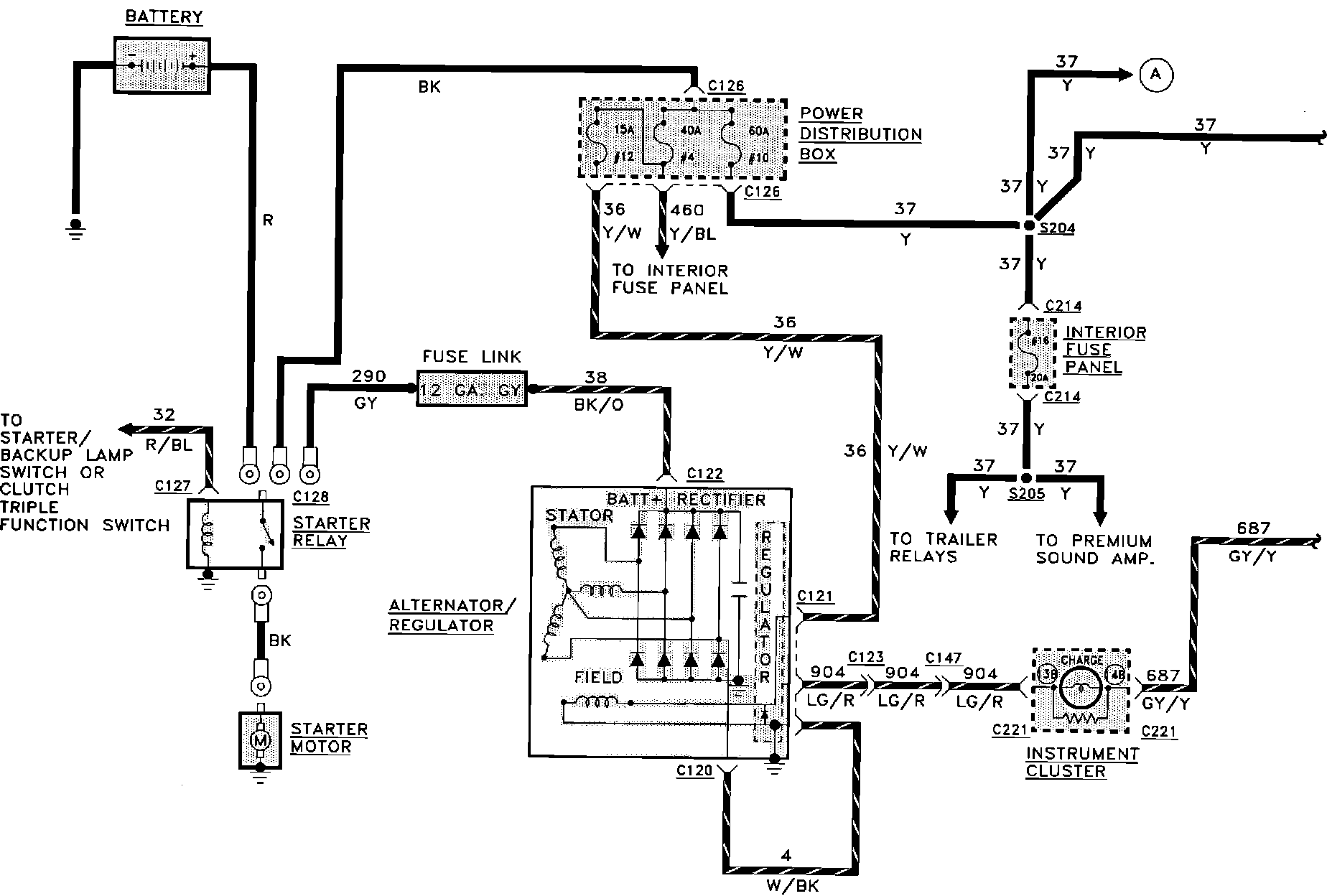

Charge/Power Distribution:
Charge/Power Distribution:
