Home >> Ford Truck >> 1992 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Window Switch >> 4 Door Models

4 Door Models

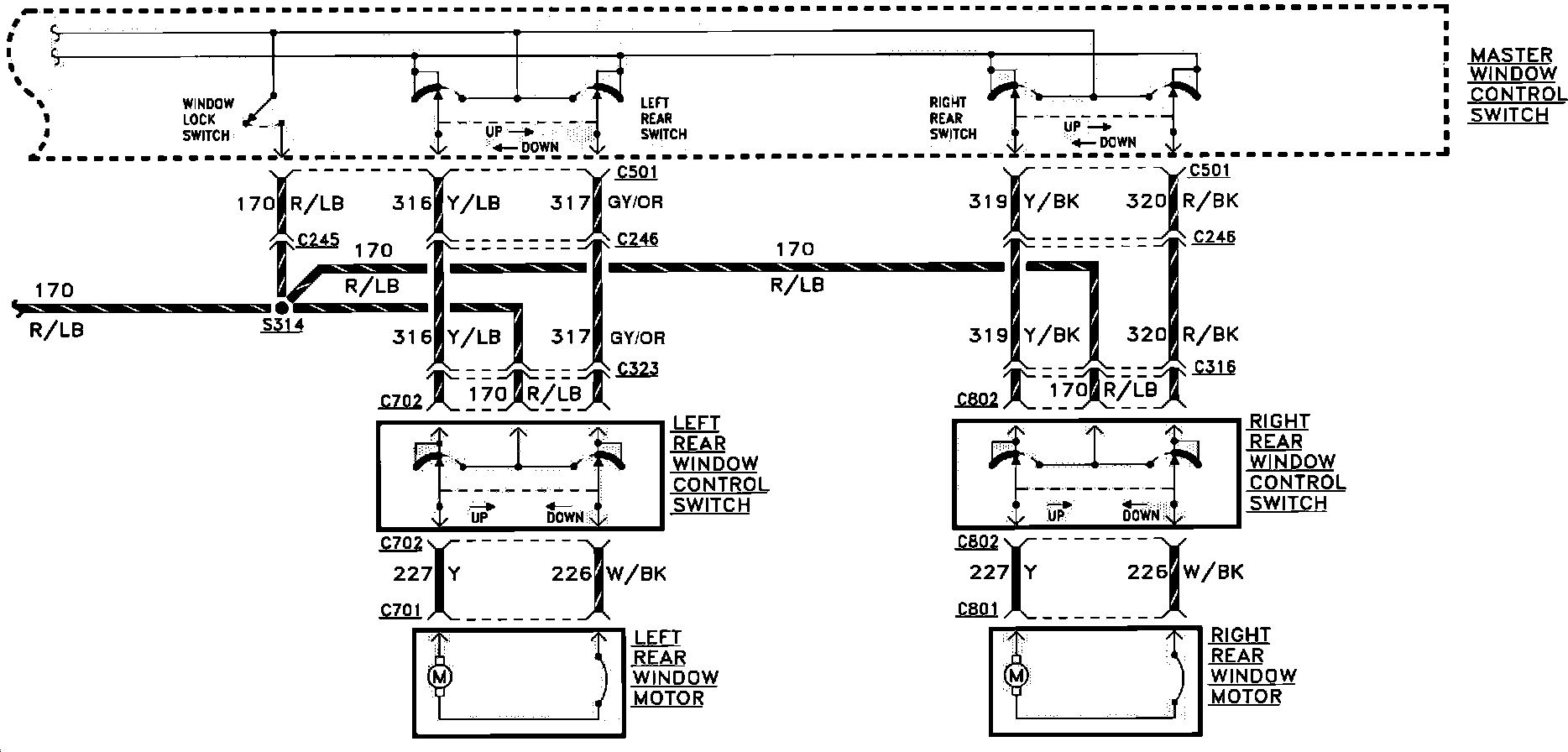

Power Windows (4 Door):



Power Windows (4 Door):
