Full Body Views

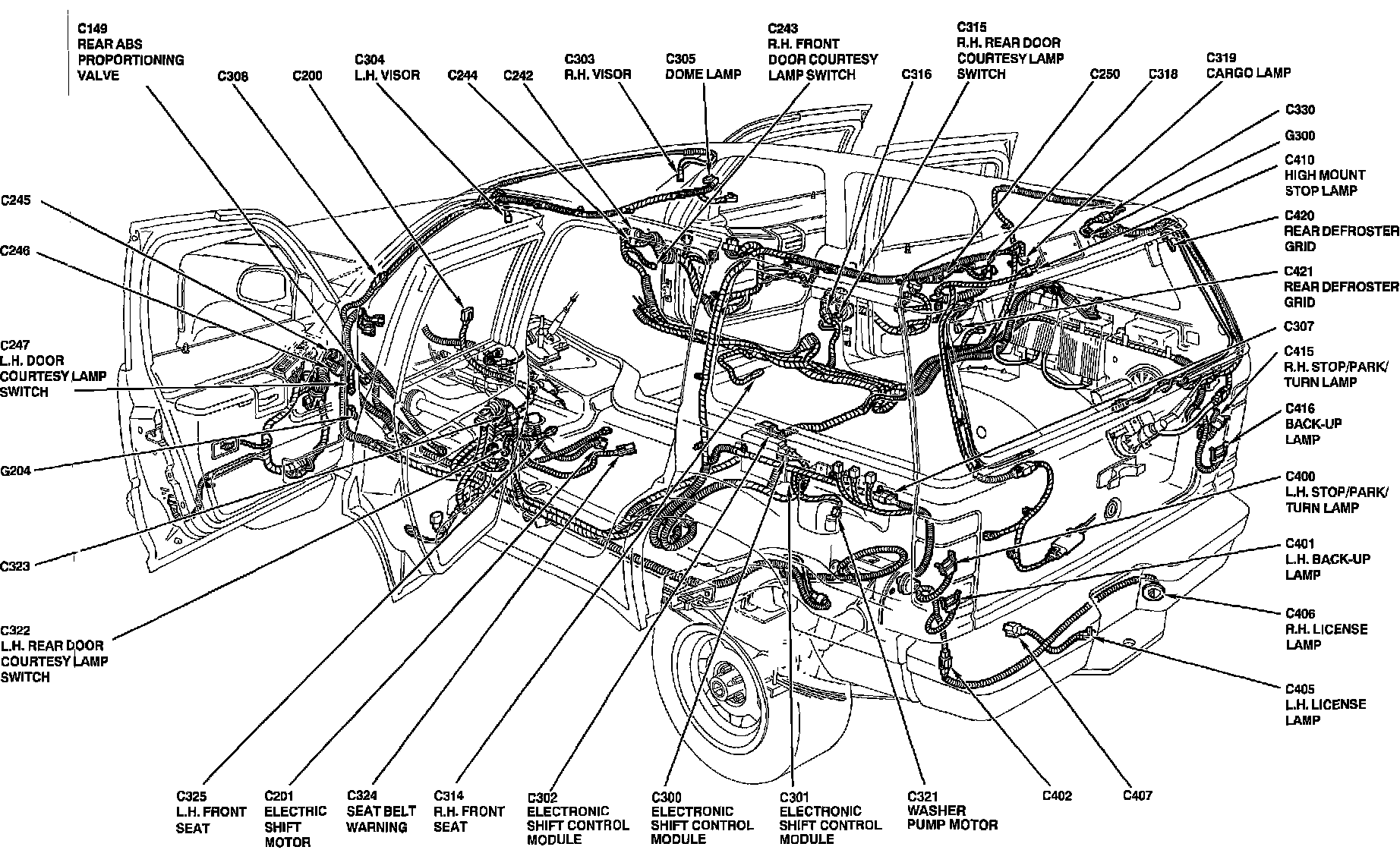

Component Location:

BACKUP LAMP
CARGO LAMP
DOME LAMP
ELECTRONIC SHIFT CONTROL MODULE
ELECTRONIC SHIFT MOTOR
HIGH MOUNT STOP LAMP
LEFT REAR DOOR COURTESY LAMP SWITCH
LH BACK-UP LAMP
LH DOOR COURTESY LAMP SWITCH
LH FRONT SEAT
LH STOP/PARK/TURN LAMP
LH VISOR
REAR ABS PROPORTIONING VALVE
REAR DEFROSTER GRID
RH FRONT SEAT
RH LICENSE LAMP
RH STOP/PARK/TURN LAMP
RH VISOR
RIGHT FRONT DOOR COURTESY LAMP SWITCH
RIGHT REAR COURTESY LAMP SWITCH
SEAT BELT WARNING
WASHER PUMP MOTOR

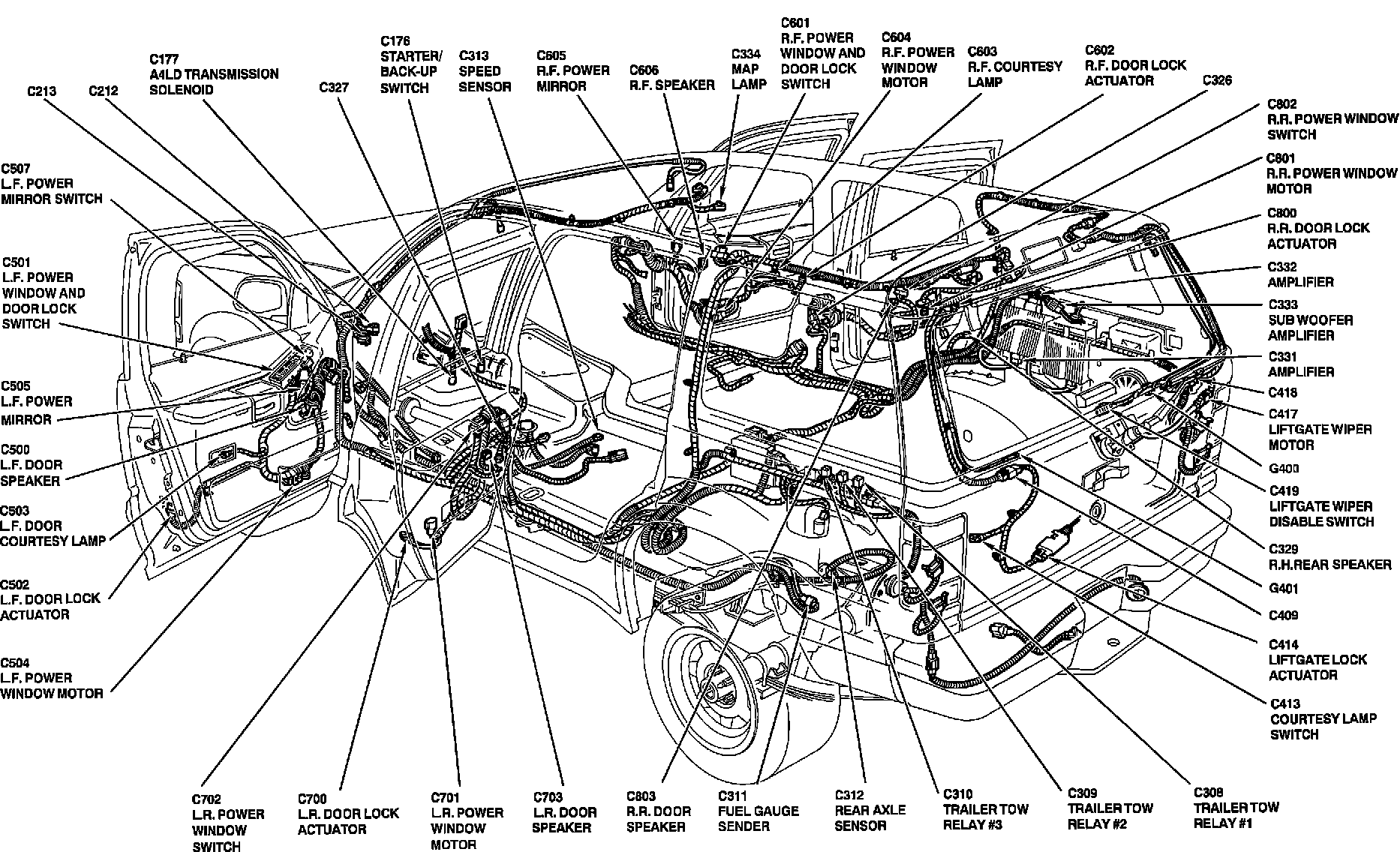

Component Location:

A4LD TRANSMISSION SOLENOID
AMPLIFIER
COURTESY LAMP SWITCH
FUEL GAUGE SENDER
LEFT FRONT DOOR COURTESY LAMP
LEFT FRONT POWER MIRROR
LEFT FRONT POWER MIRROR SWITCH
LEFT FRONT POWER WINDOW AND DOOR LOCK SWITCH
LEFT FRONT POWER WINDOW MOTOR
LEFT REAR DOOR LOCK ACTUATOR
LEFT REAR DOOR SPEAKER
LEFT REAR POWER WINDOW MOTOR
LEFT REAR POWER WINDOW SWITCH
LIFTGATE LOCK ACTUATOR
LIFTGATE WIPER DISABLE SWITCH
LIFTGATE WIPER MOTOR
MAP LAMP
REAR AXLE SENSOR
RIGHT FRONT COURTESY LAMP
RIGHT FRONT DOOR COURTESY LAMP
RIGHT FRONT DOOR LOCK ACTUATOR
RIGHT FRONT POWER MIRROR
RIGHT FRONT POWER WINDOW AND DOOR LOCK SWITCH
RIGHT FRONT SPEAKER
RIGHT FRONT WINDOW MOTOR
RIGHT REAR DOOR LOCK ACTUATOR
RIGHT REAR DOOR SPEAKER
RIGHT REAR POWER WINDOW MOTOR
RIGHT REAR POWER WINDOW SWITCH
RIGHT REAR SPEAKER
SPEED SENSOR
STARTER/BACK-UP SWITCH
TRAILER TOW RELAY
