Home >> Ford Truck >> 1992 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> B - Code 212 - IDM Failure >> B1 - Check For IDM At EDIS Module

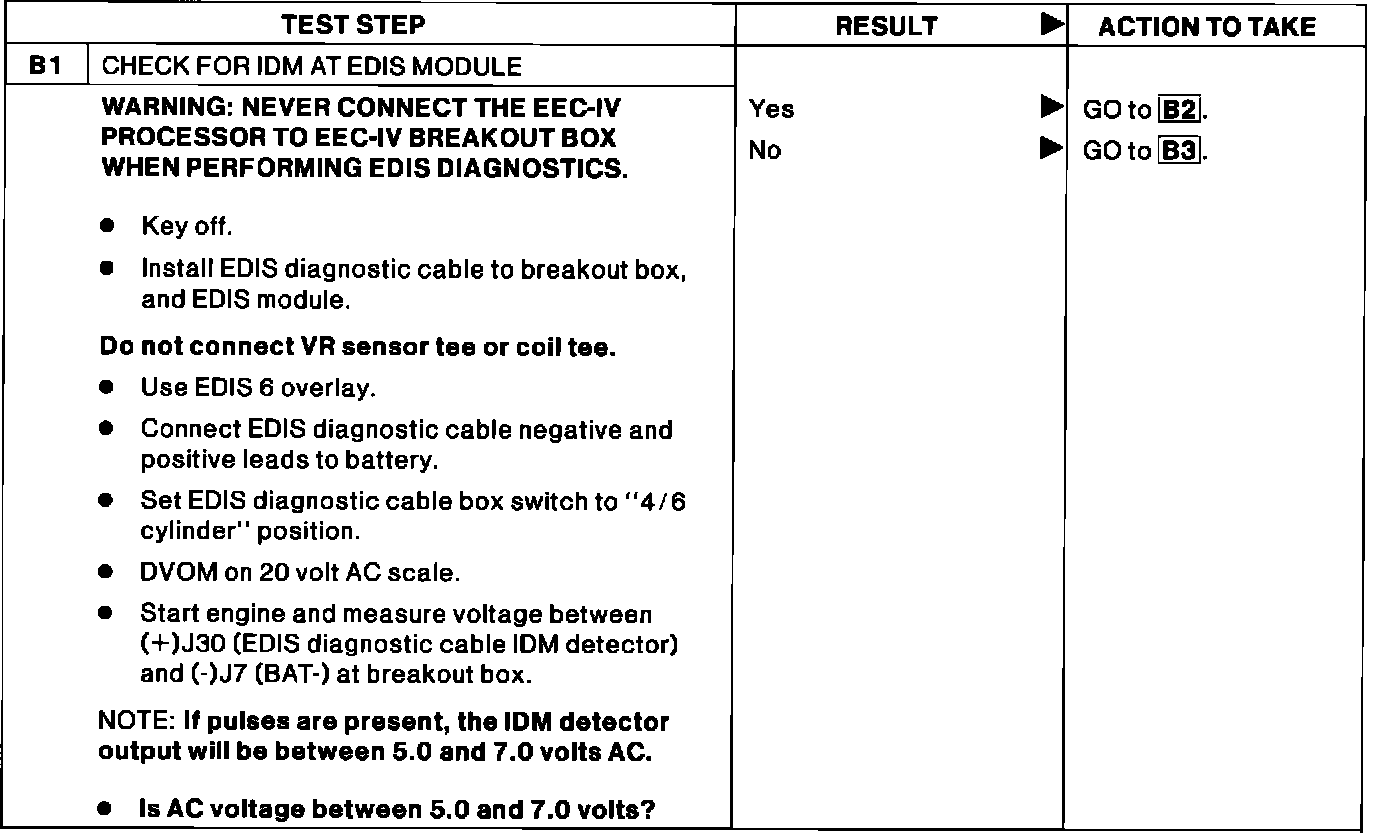

B1 - Check For IDM At EDIS Module

Pinpoint Test B1:
