Home >> Ford Truck >> 1992 >> Explorer 4WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Window Switch >> 2 Door Models

2 Door Models

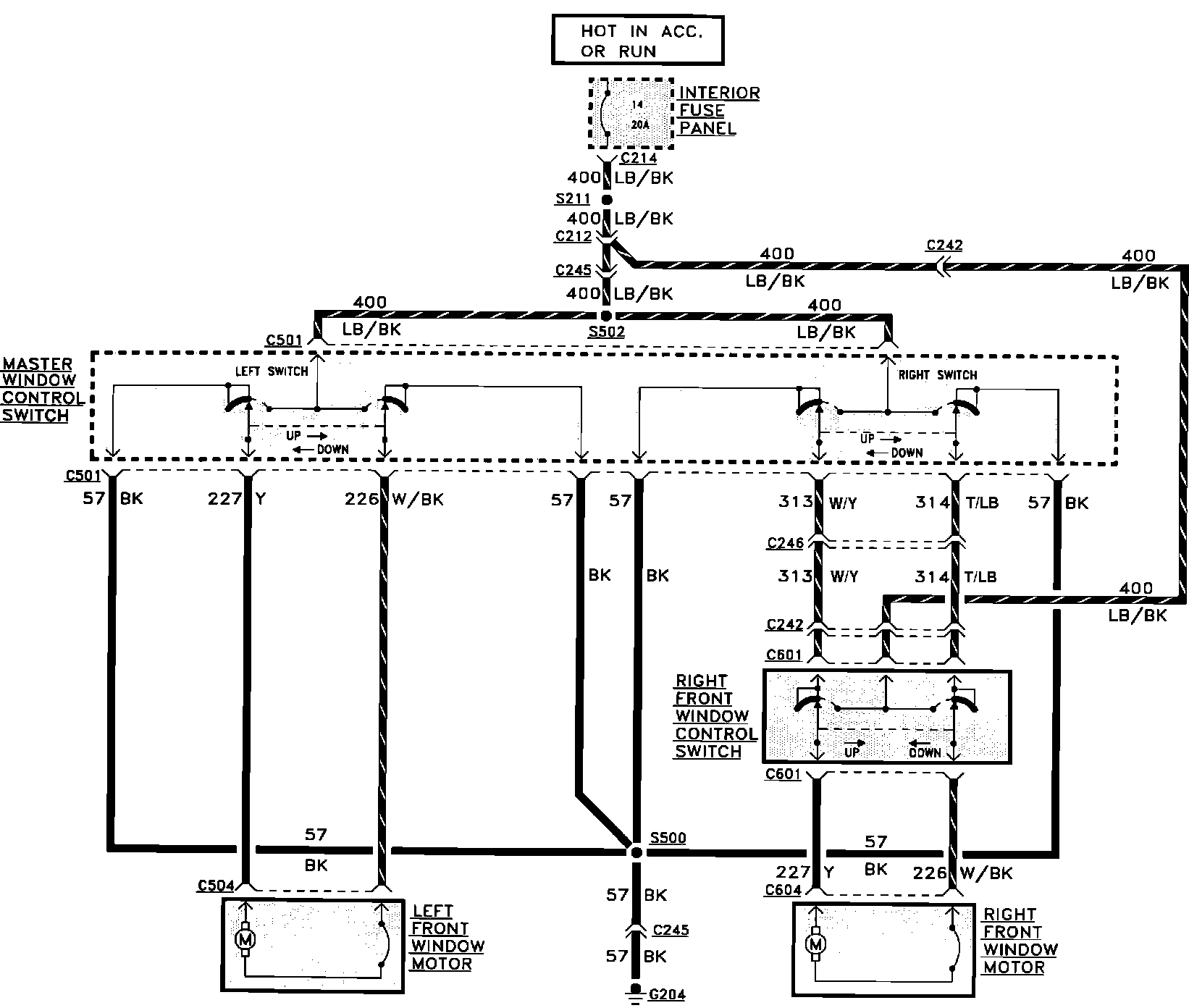

Power Windows (2 Door):
