Ignition Control Module: Diagrams

EDIS Ignition Module And Pinout:

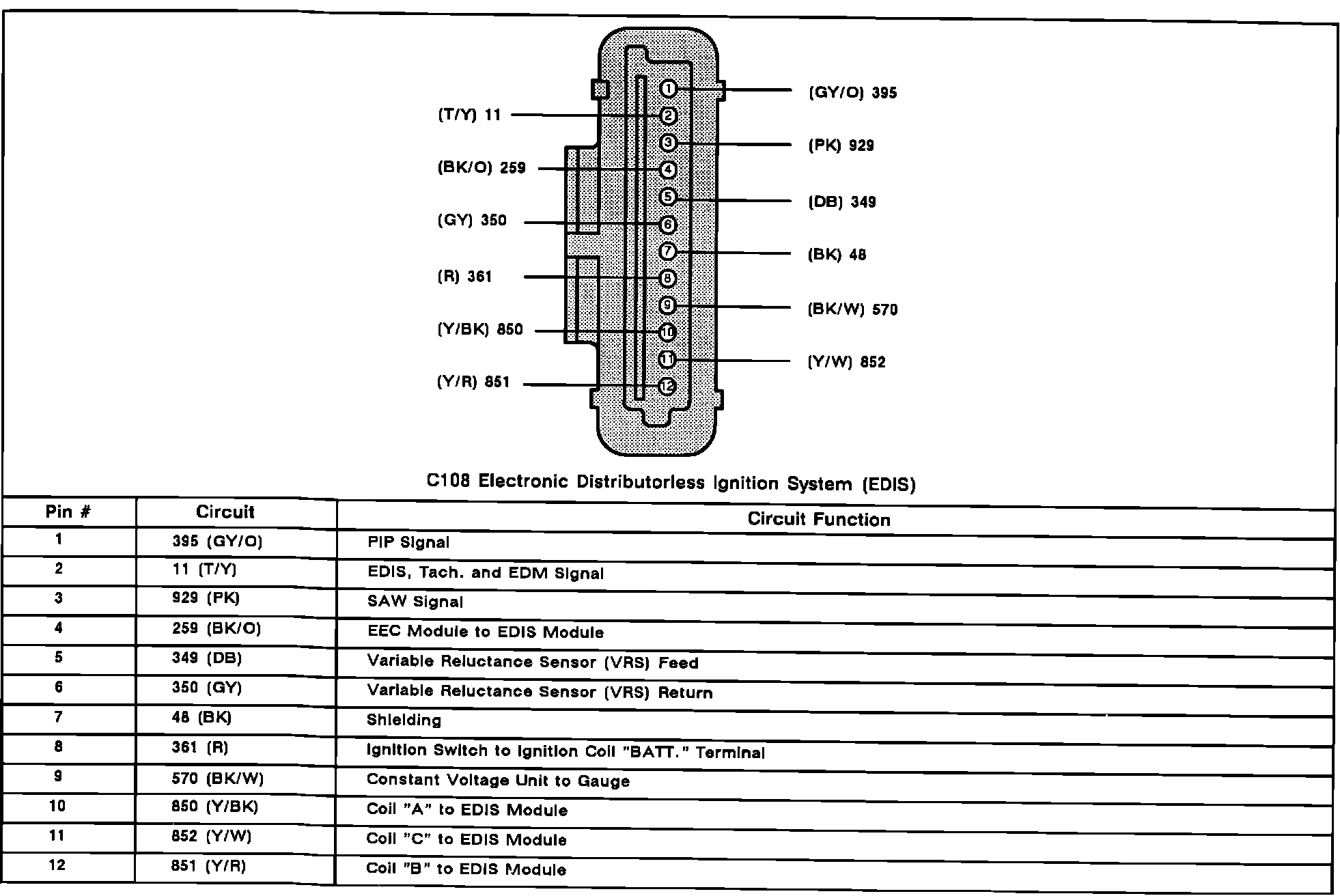

Electronic Distributerless Ignition Module Connector Pinout:
