Home >> Ford Truck >> 1993 >> Explorer 4WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Clutch Switch

Clutch Switch

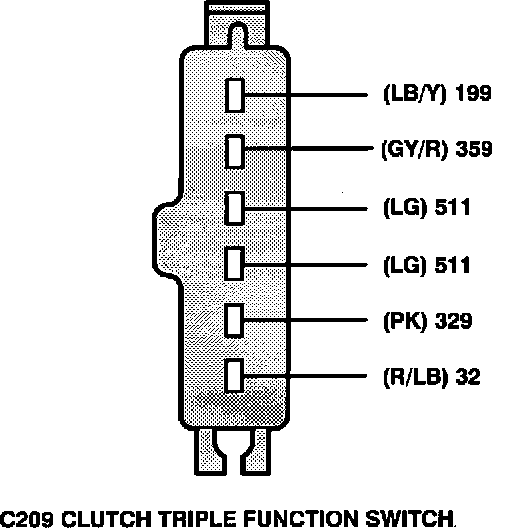

Clutch Triple Function Switch:
