Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
1993
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Dimmer Switch
Headlamp Dimmer Switch

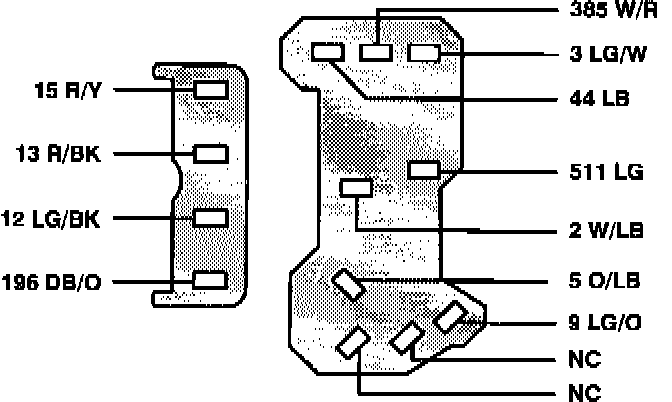

Switch Connector End View:
