Ford Truck
>>
1993
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
With Remote Keyless Entry
With Remote Keyless Entry

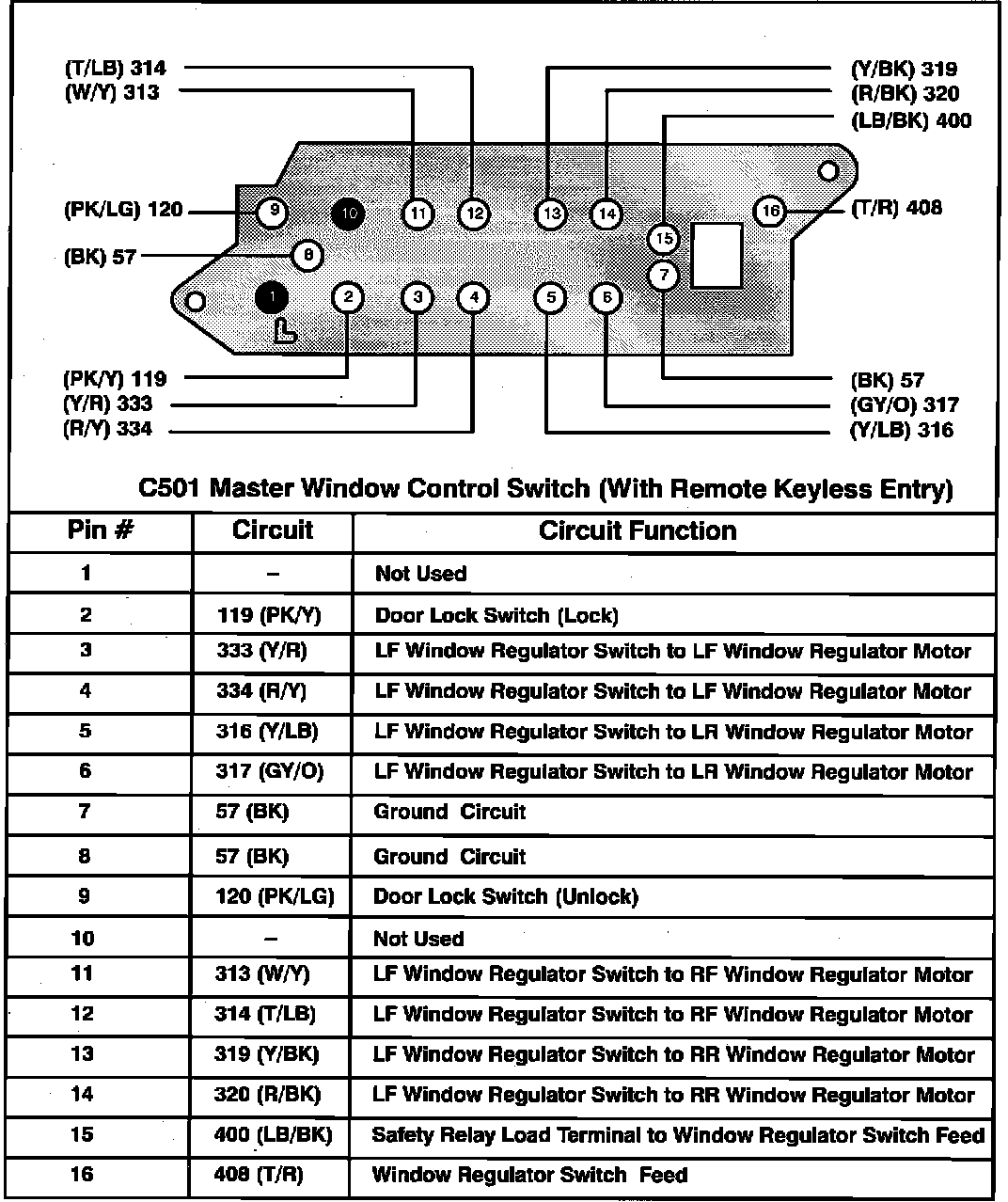

Master Window Control Switch (With Remote Keyless Entry):
