Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
With Remote Keyless Entry
>>
Passenger Door
Passenger Door

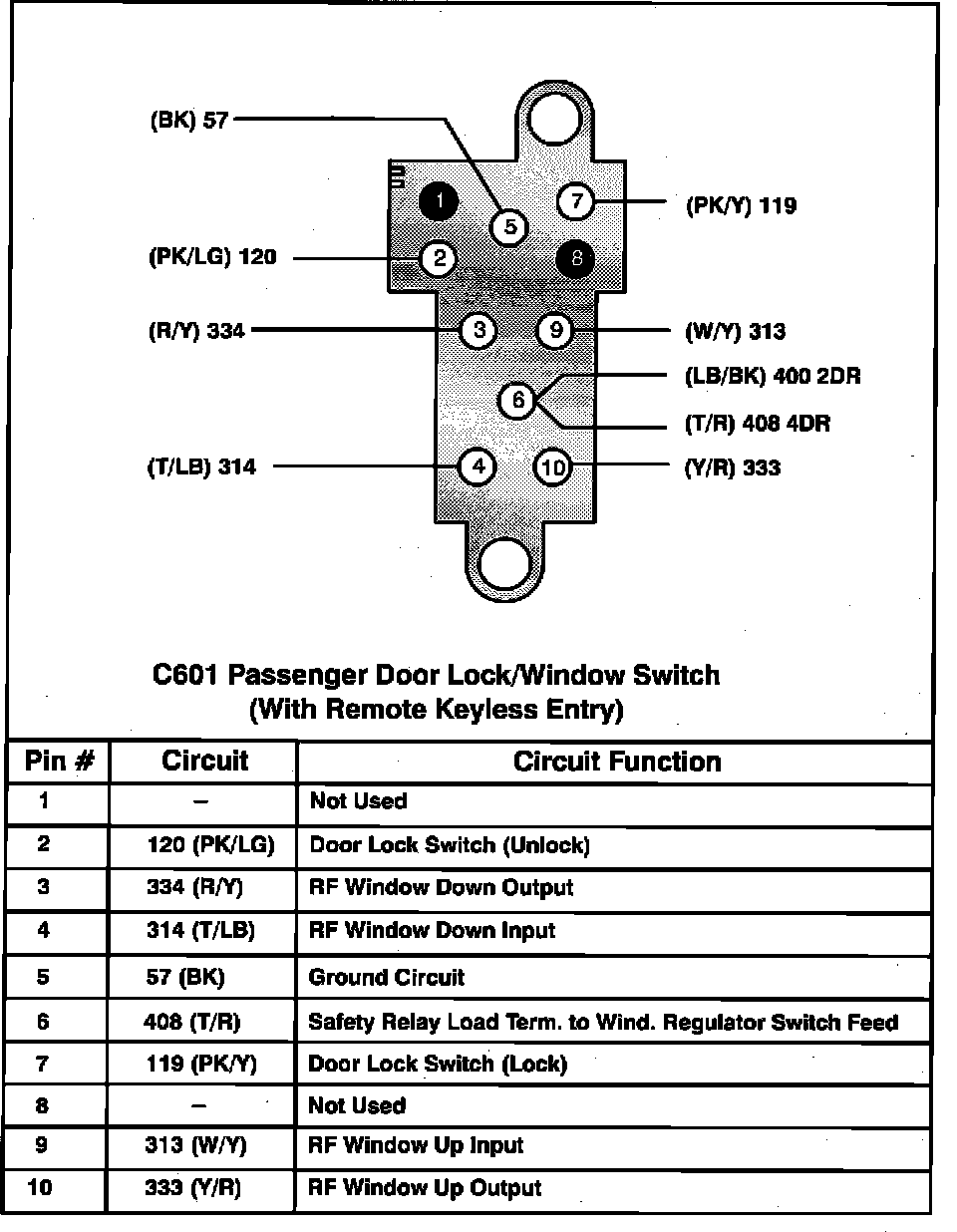

Passenger Door Lock/Window Switch (With Remote Keyless Entry):
