Ford Truck
>>
1993
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
>>
Liftgate Wiper Switch
Liftgate Wiper Switch

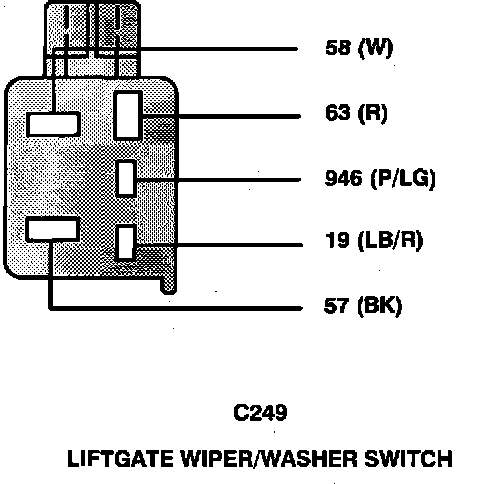

Liftgate Wiper/Washer Switch:
