Blower Motor Switch: Testing and Inspection

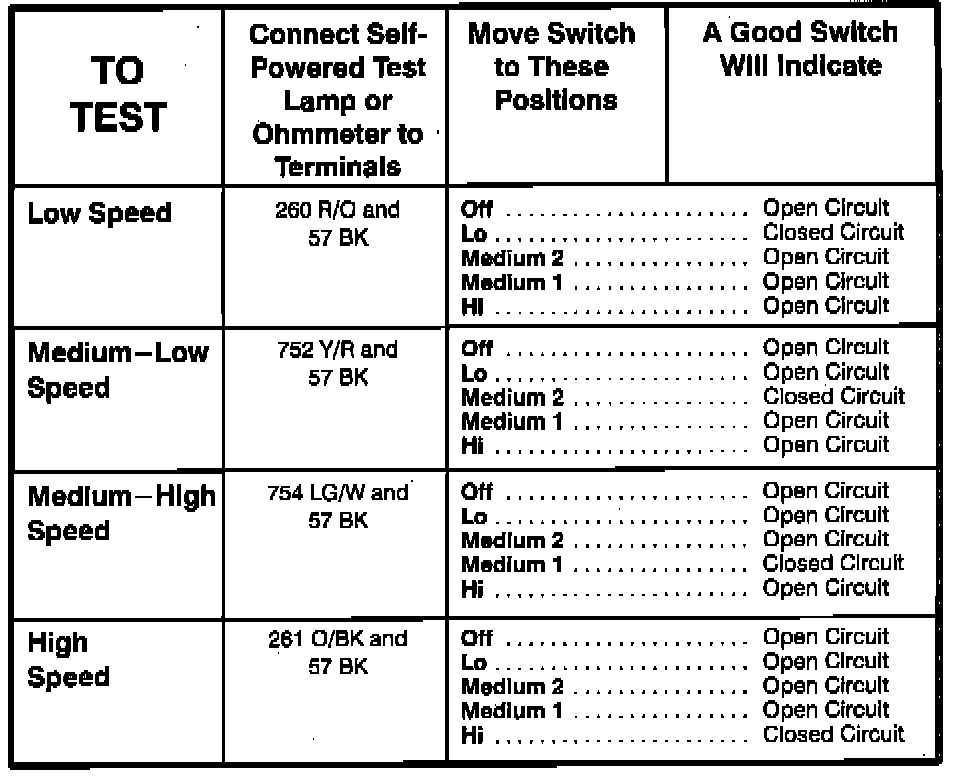

Component Testing Procedure:




Blower Switch Connector:

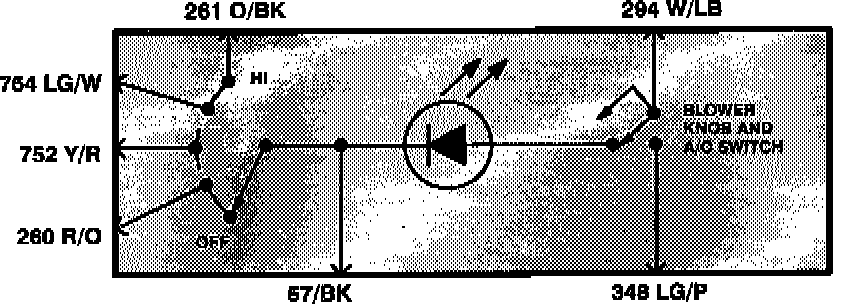

Blower Switch, Schematic:
