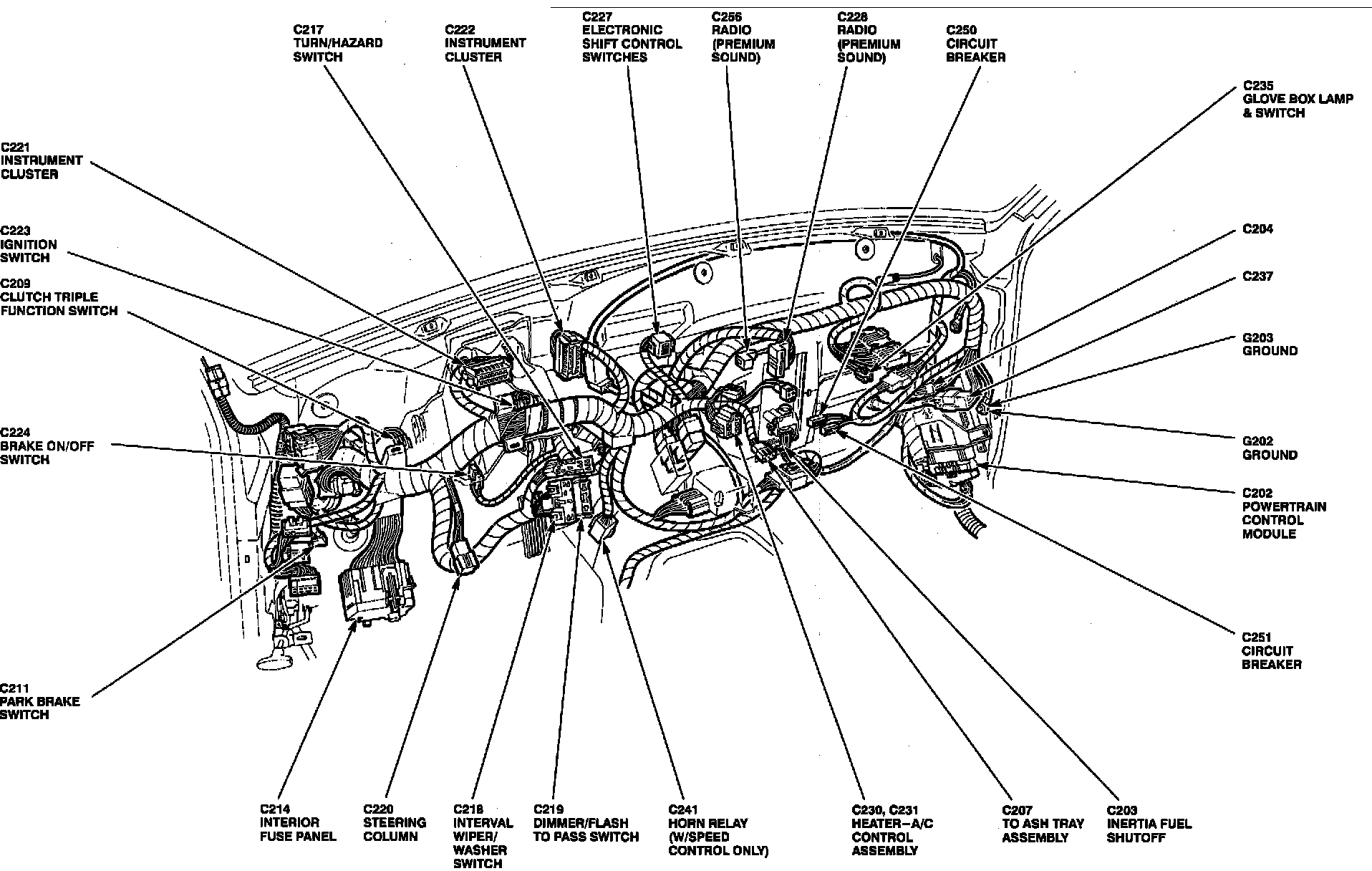

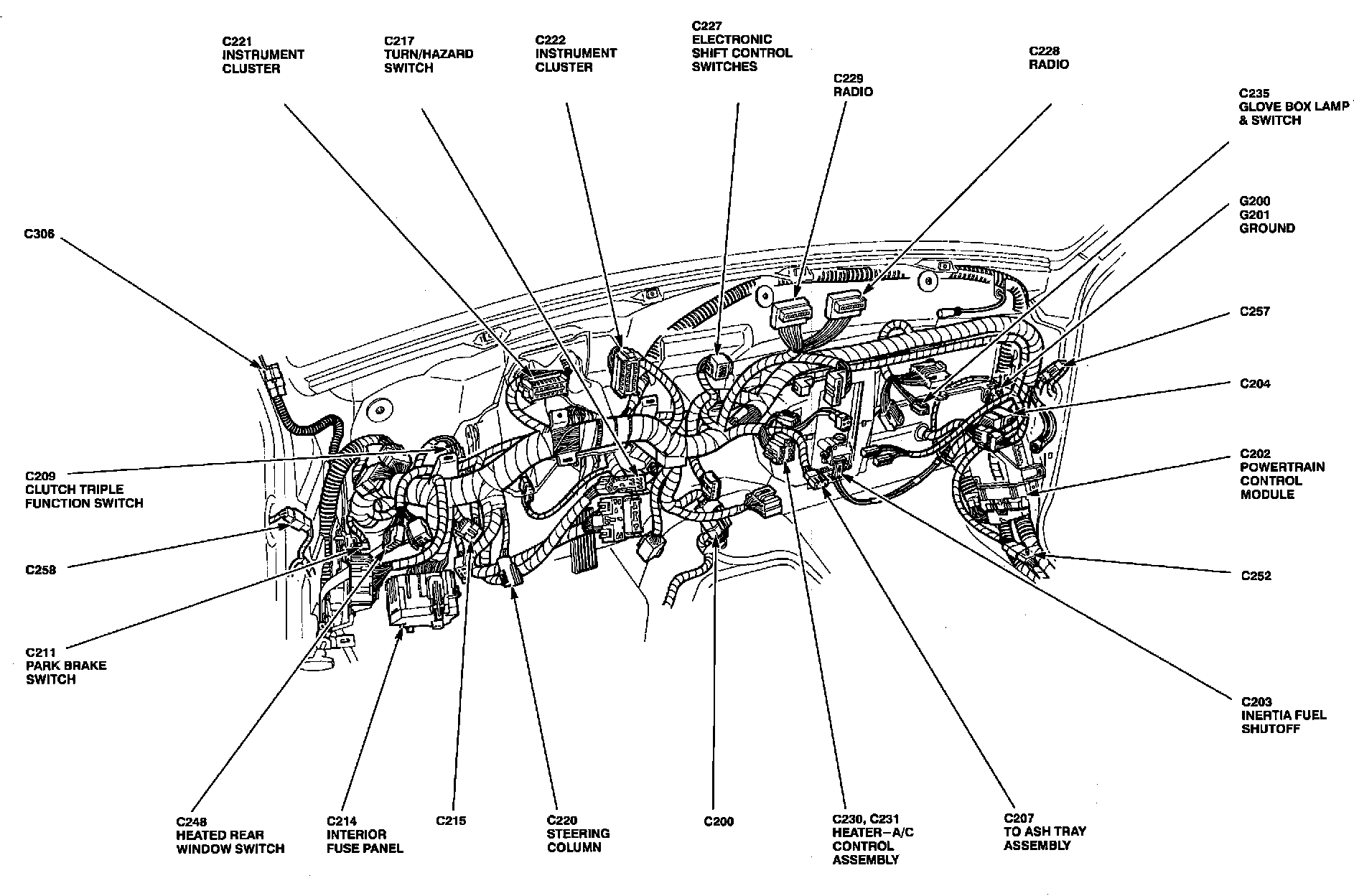

Behind Instrument Panel Views

Component Locations:

4X4 HI/LOW INDICATOR SWITCH
BACK UP LAMP SWITCH
BACK UP LAMP SWITCH (T-18 BORG-WARNER, S5-42 ZF)
DIFFERENTIAL SPEED SENSOR
E4OD TRANSMISSION
ELECTRONIC SHIFT CONTROL MODULE
FUEL PUMP/FUEL GAUGE SENDER UNIT
HEATED OXYGEN SENSOR
INERTIA FUEL SHUTOFF
LH FRONT POWER MIRROR
LH FRONT POWER MIRROR SWITCH
MANUAL LEVER POSITION SENSOR
RABS VALVE ASSEMBLY
REAR TANK FUEL PUMP/FUEL GAUGE SENDER UNIT
REAR WINDOW DEFROST GRID
RH FRONT POWER MIRROR
RH FRONT POWER MIRROR SWITCH
TAILGATE LATCH SWITCH
TAILGATE POWER WINDOW MOTOR
TAILGATE WINDOW SWITCH
TRANSFER CASE ASSEMBLY

Component Locations:

A/C AND HEATER CONTROL ASSEMBLY
BRAKE ON/OFF SWITCH
CIRCUIT BREAKER
CLUTCH TRIPLE FUNCTION SWITCH
DIMMER/FLASH TO PASS SWITCH
ELECTRONIC SHIFT CONTROL SWITCHES
GLOVE BOX LAMP AND SWITCH
HORN RELAY (w/SPEED CONTROL)
IGNITION SWITCH
INERTIA FUEL SHUT OFF
INSTRUMENT CLUSTER
INTERIOR FUSE PANEL
INTERVAL WIPER/WASHER SWITCH
PARK BRAKE SWITCH
POWERTRAIN CONTROL MODULE
RADIO (PREMIUM SOUND)
REAR WINDOW DEFROST SWITCH
STEERING COLUMN
TURN/HAZARD SWITCH
