Windshield Washer Switch: Testing and Inspection

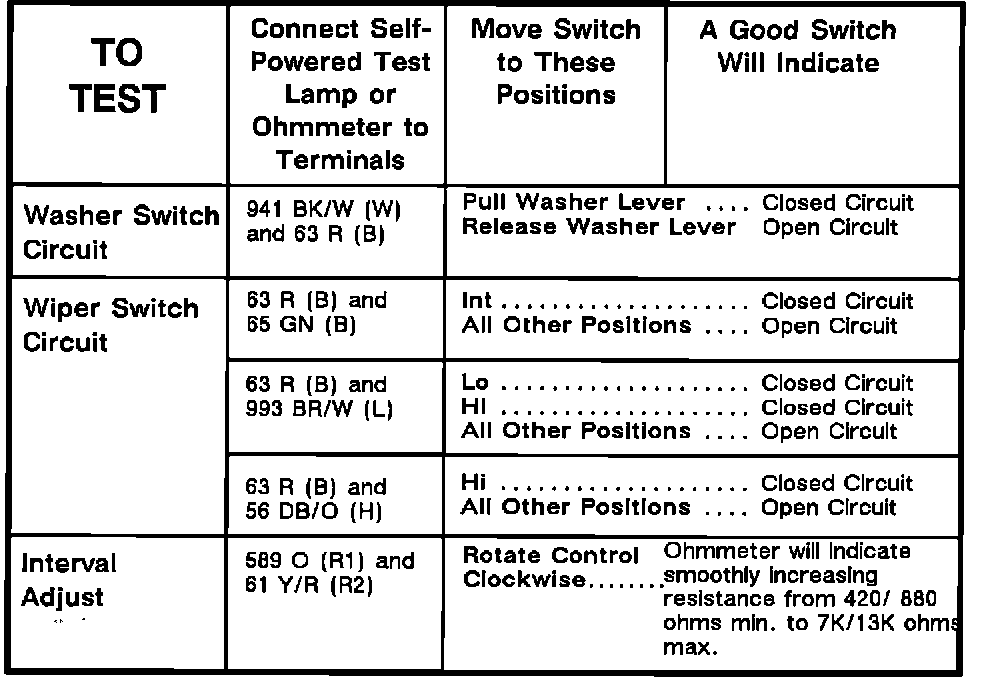

Component Testing Procedures:
Washer/Wiper Switch:

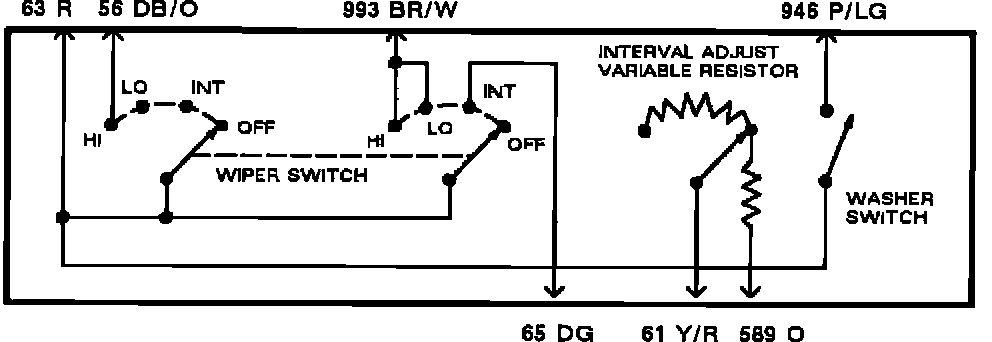

Schematic:
