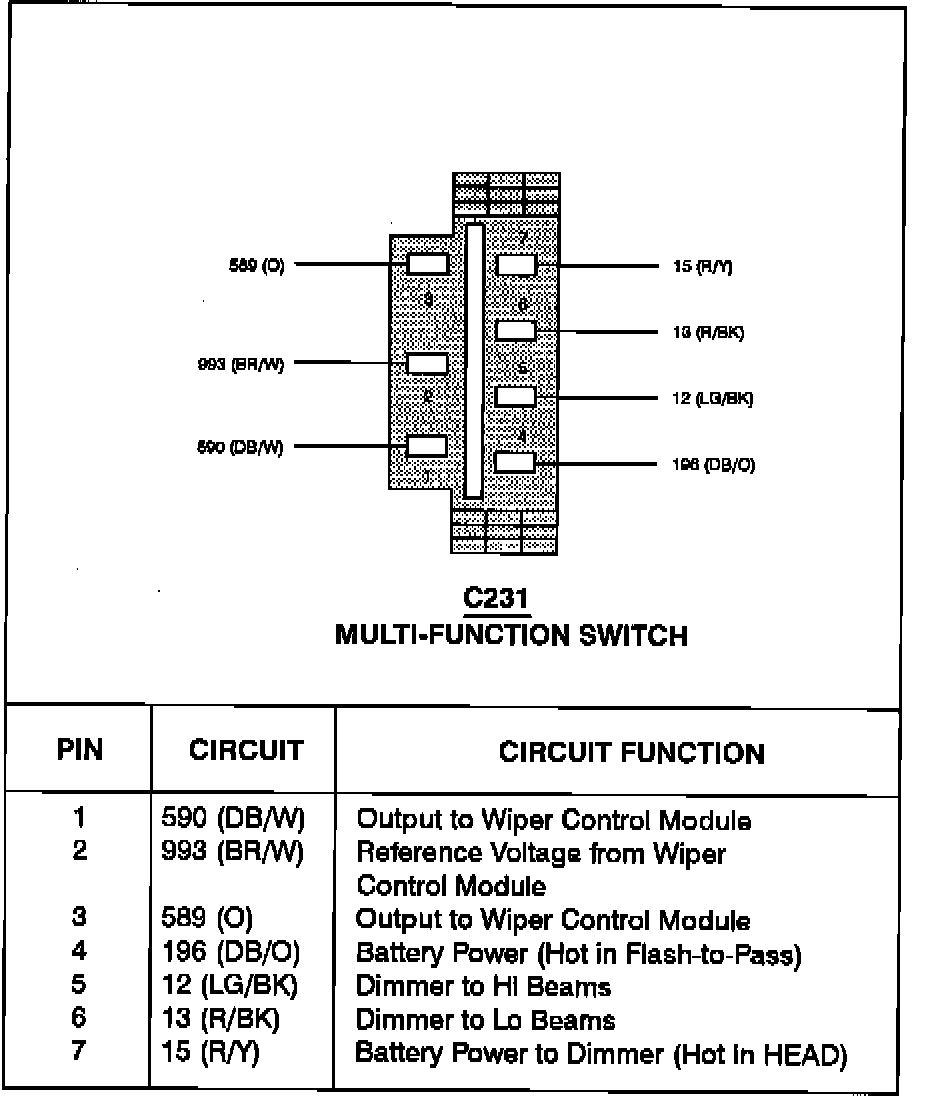

Turn Signal Switch

Multi-Function Switch:




Multi-Function Switch:




Multi-Function Switch:




Multi-Function Switch:
