Engine Compartment Views

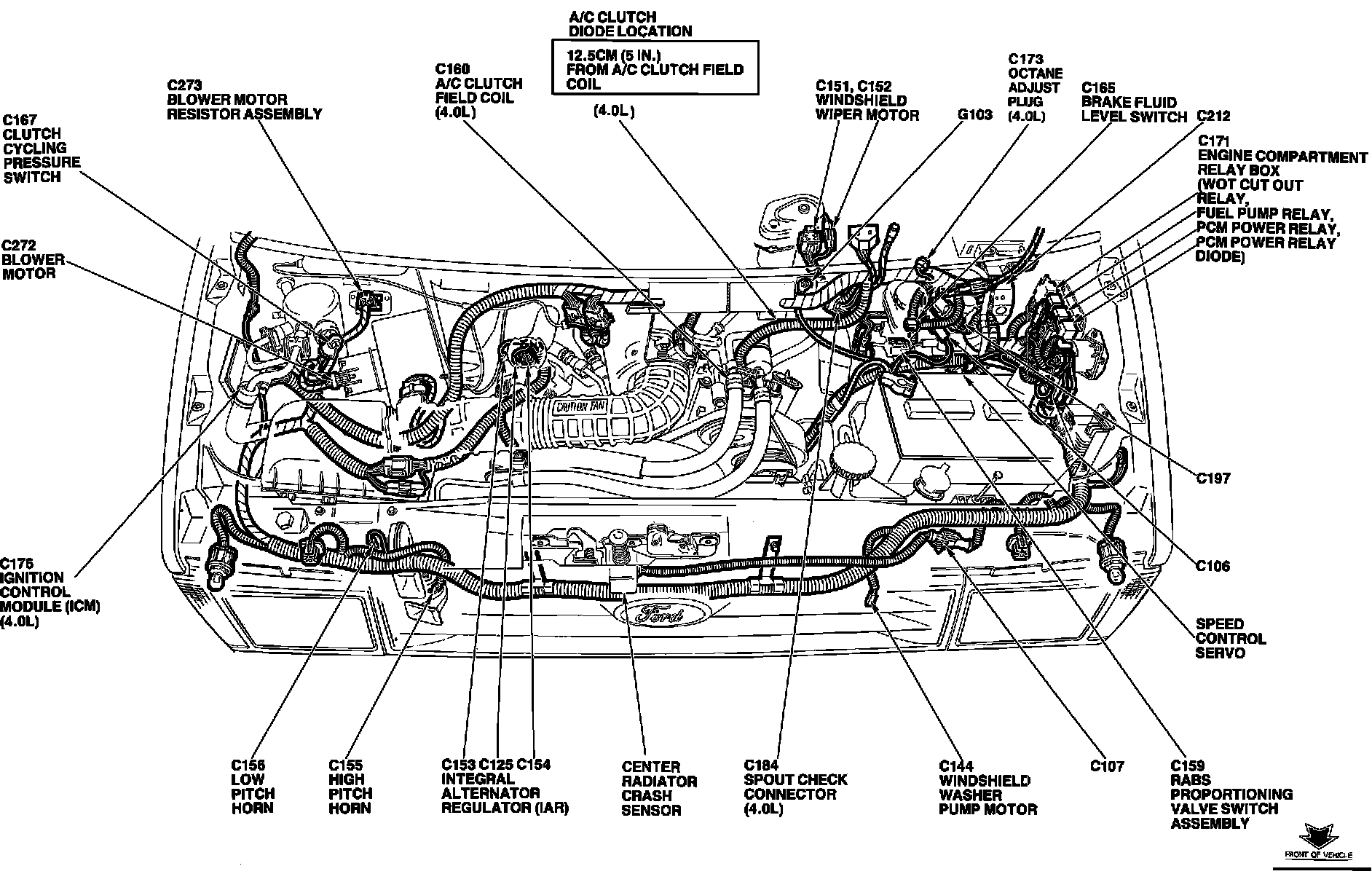

Component Locations:

A/C CLUTCH DIODE
A/C CLUTCH FIELD COIL
BRAKE FLUID LEVEL SWITCH
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
CENTER RADIATOR CRASH SENSOR
CLUTCH CYCLING PRESSURE SWITCH
ENGINE COMPARTMENT RELAY BOX
HIGH PITCH HORN
IGNITION CONTROL MODULE (ICM)
INTEGRAL ALTERNATOR REGULATOR (IAR)
LOW PITCH HORN
OCTANE ADJUST PLUG
RABS PROPORTIONING VALVE SWITCH ASSEMBLY
SPEED CONTROL SERVO
SPOUT CHECK CONNECTOR
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

Component Locations:

DATA LINK CONNECTOR AND STI CONNECTOR
DAYTIME RUNNING LAMPS (DRL) MODULE
DSS TEST CONNECTOR
ENGINE COMPARTMENT LAMP MERCURY SWITCH AND ENGINE COMPARTMENT LAMP
FUSE LINKS A, B AND D
FUSE LINKS C, E, F AND J
FUSE LINK K
FUSE LINK G LOCATION
IGNITION CONTROL MODULE (ICM)
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
MASS AIR FLOW (MAF) SENSOR
POWERTRAIN CONTROL MODULE
PRESSURE DIFFERENTIAL WARNING SWITCH
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
STARTER RELAY
TACH TEST CONNECTOR LOCATION

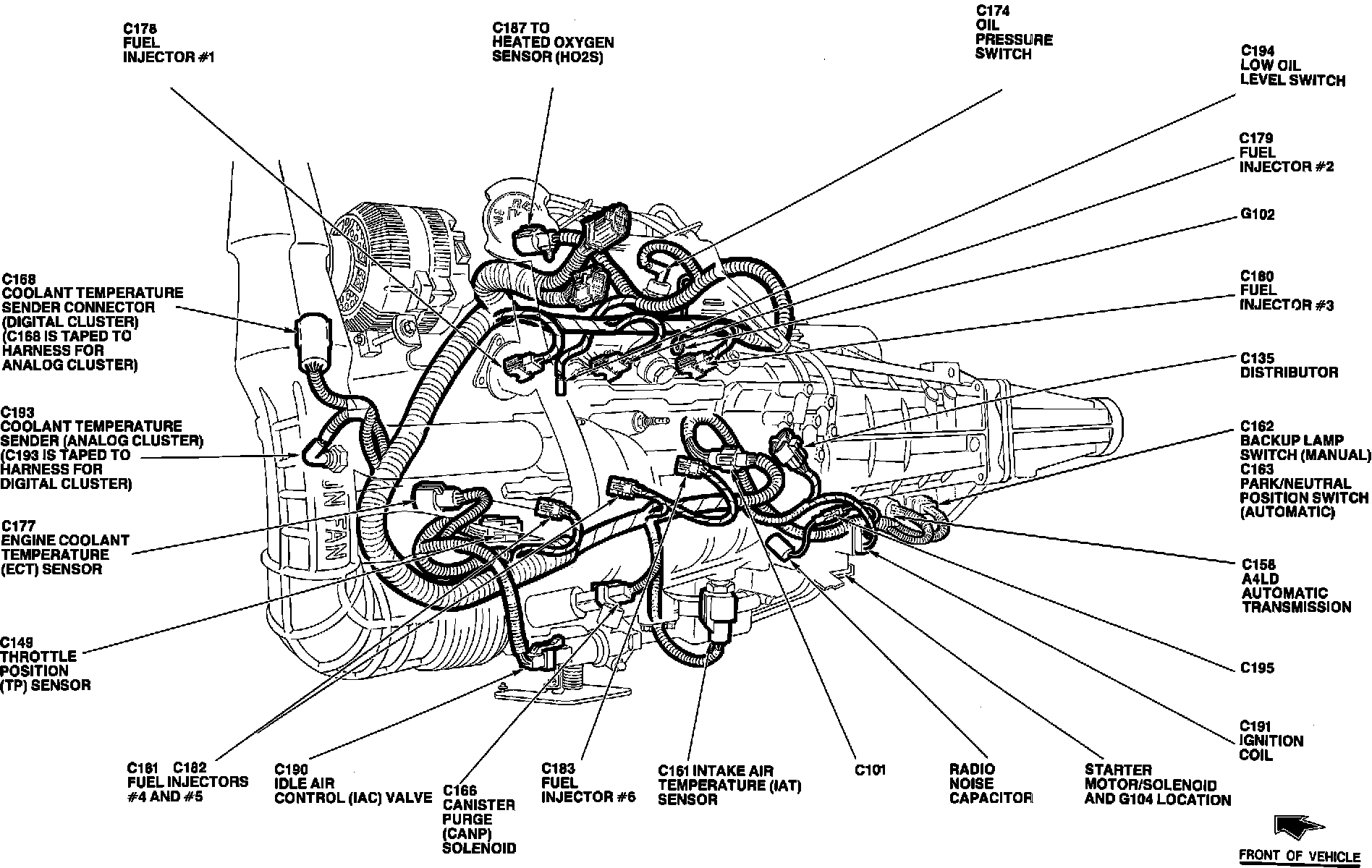

Component Locations:

A4LD AUTOMATIC TRANSMISSION
BACKUP LAMP SWITCH (MANUAL)
CANISTER PURGE (CANP) SOLENOID
COOLANT TEMPERATURE SENDER
DISTRIBUTOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
HEATED OXYGEN SENSOR
IDLE AIR CONTROL (IAC) VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE (IAT) SENSOR
LOW OIL LEVEL SWITCH
OIL PRESSURE SWITCH
PARK/NEUTRAL POSITION SWITCH (AUTOMATIC)
RADIO NOISE CAPACITOR
STATOR MOTOR/SOLENOID
THROTTLE POSITION SENSOR
