Home
>>
Ford Truck
>>
1994
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

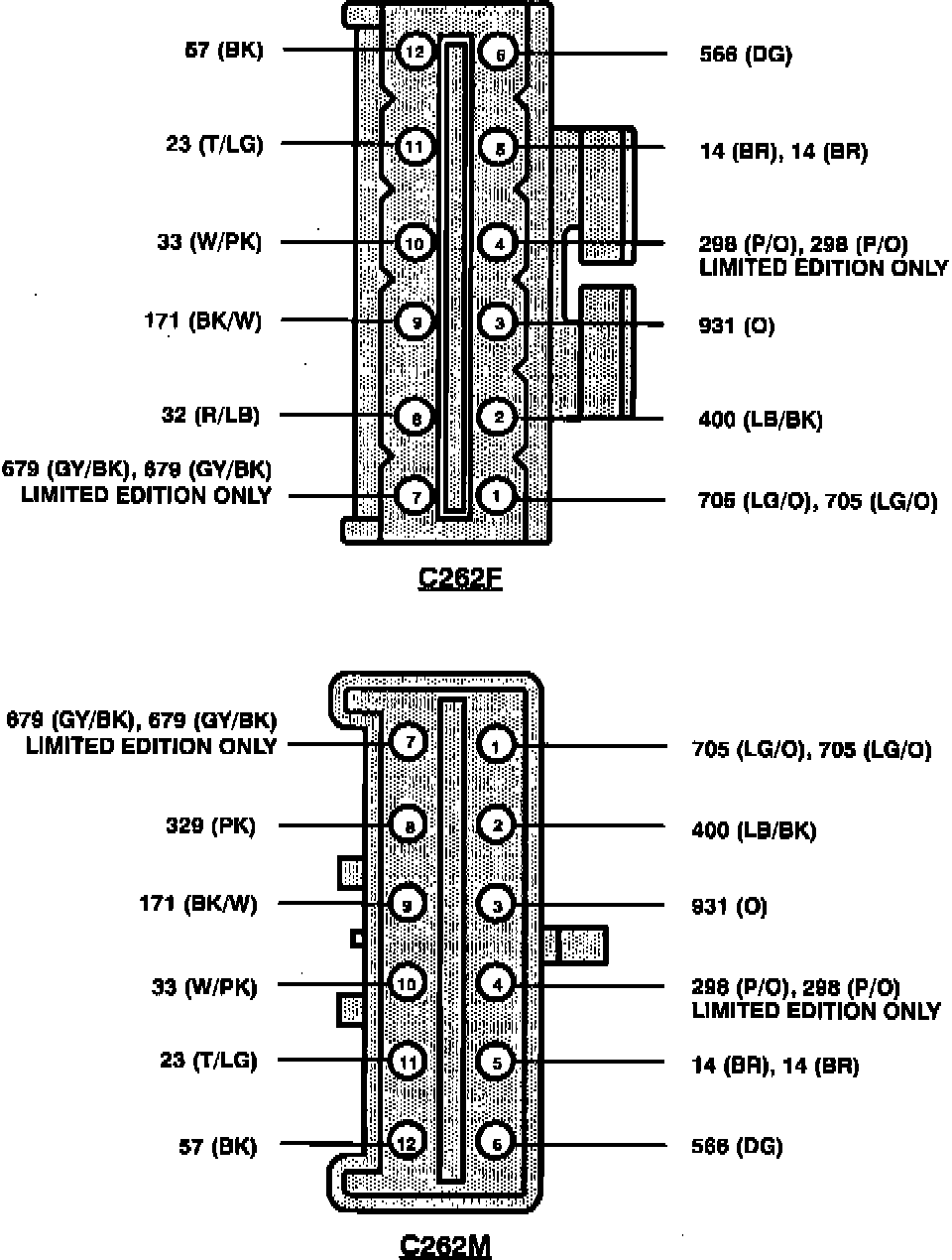

Multiple Junction Connector
>>
C262
C262
Connector Identification:
