Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

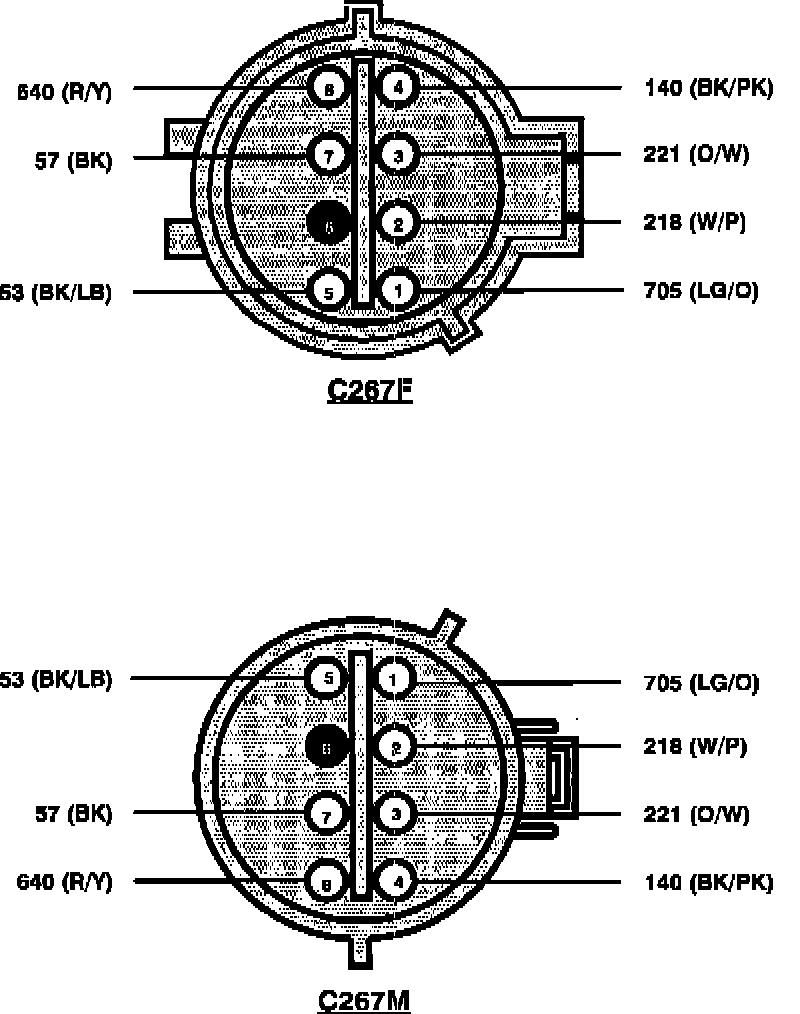

Multiple Junction Connector
>>
C267
C267
Connector Identification:
