Home >> Ford Truck >> 1994 >> Explorer 2WD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Passenger Side >> With Keyless Entry

With Keyless Entry

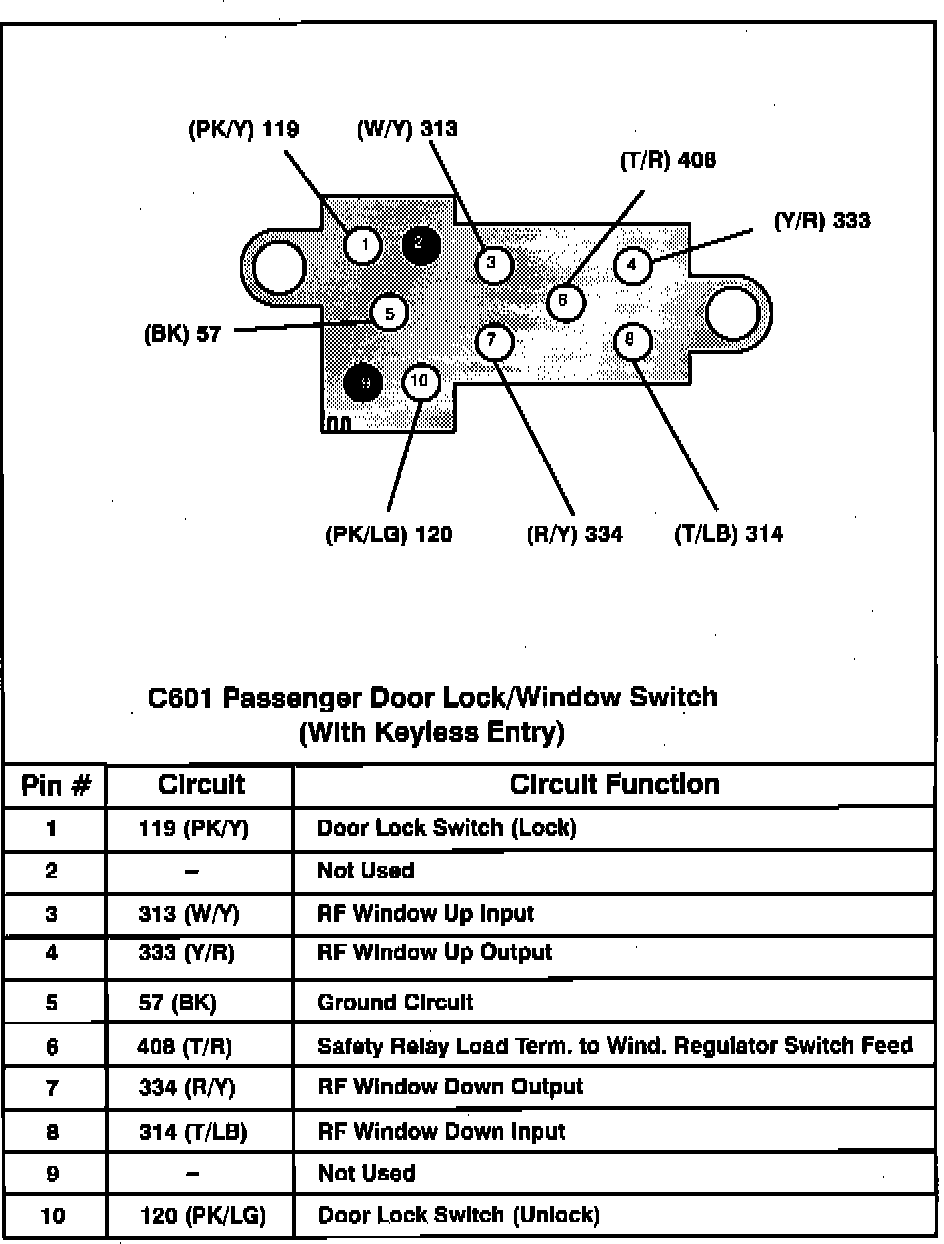

Passenger Door Lock/Window Switch:
