Ford Truck
>>
1994
>>
Explorer 2WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
>>
Liftgate Washer Switch
Liftgate Washer Switch

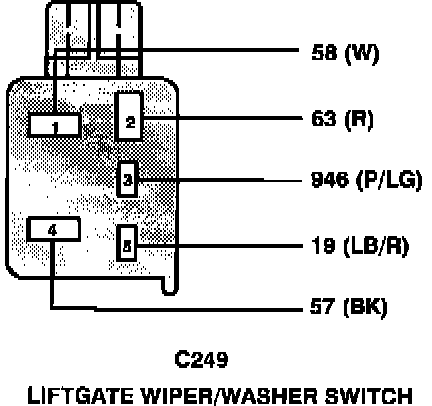

Liftgate Wiper/Washer Switch:
