System Diagram
System Diagram

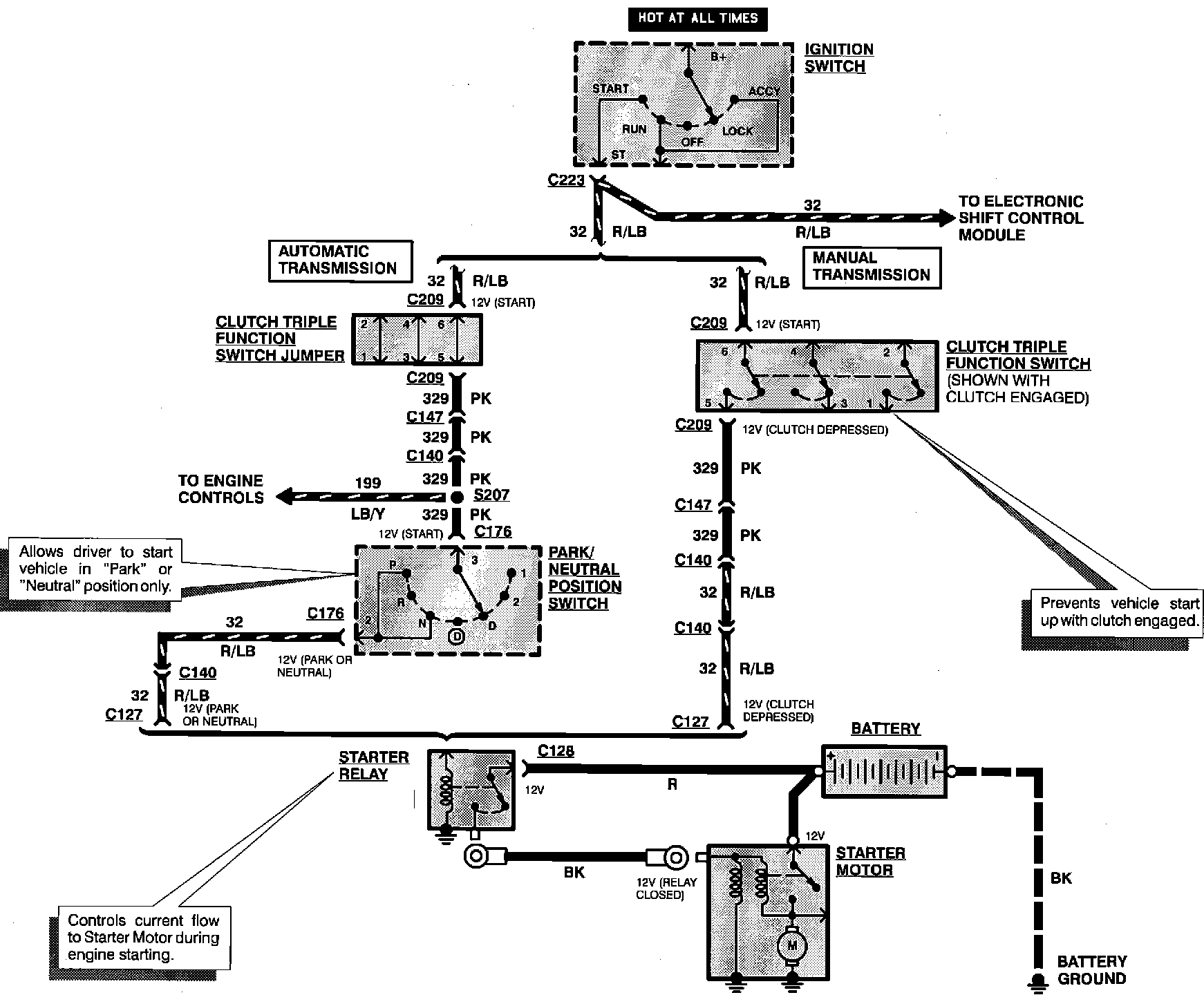

All Except Limited Edition and Electronic Group:

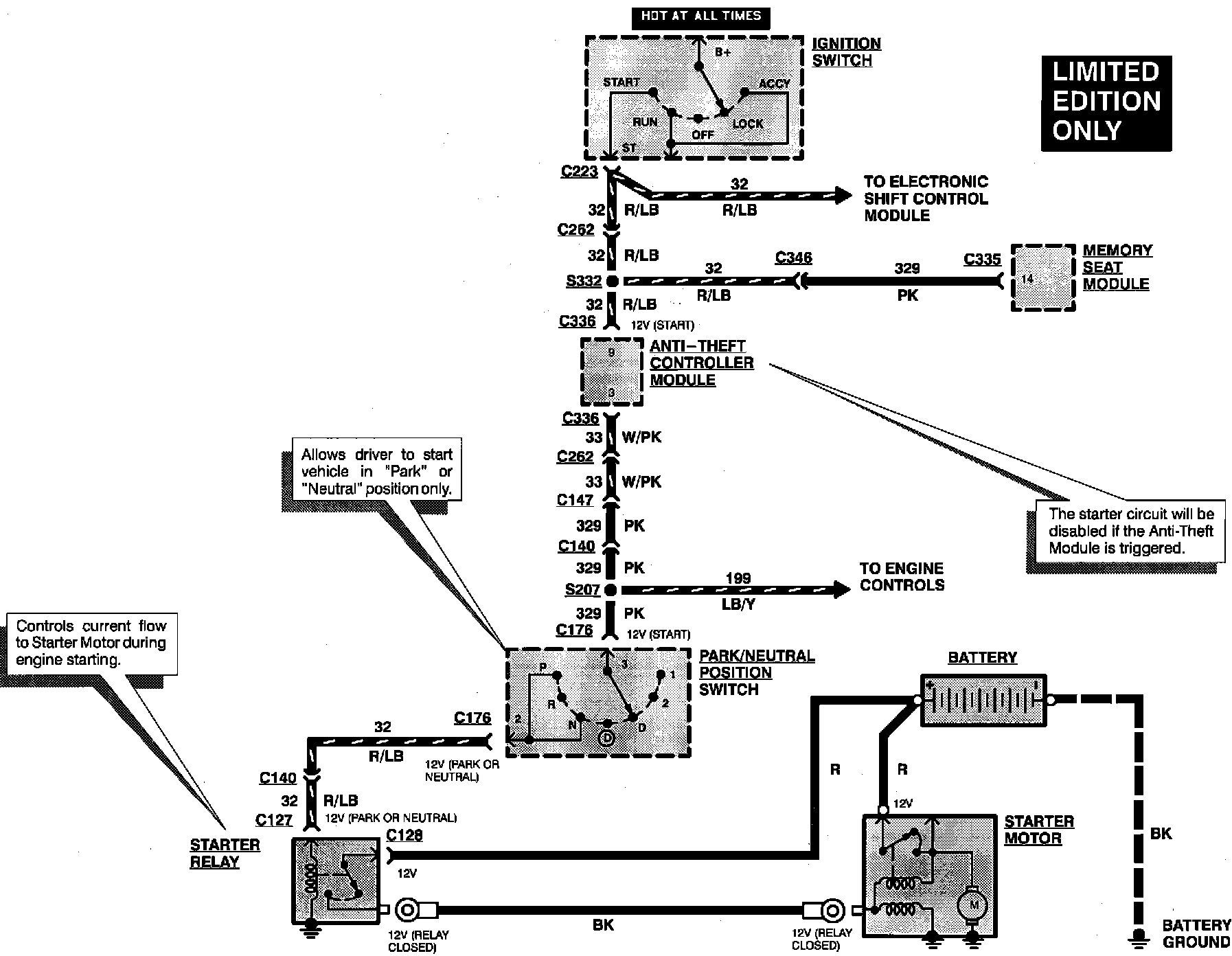

Limited Edition Only:

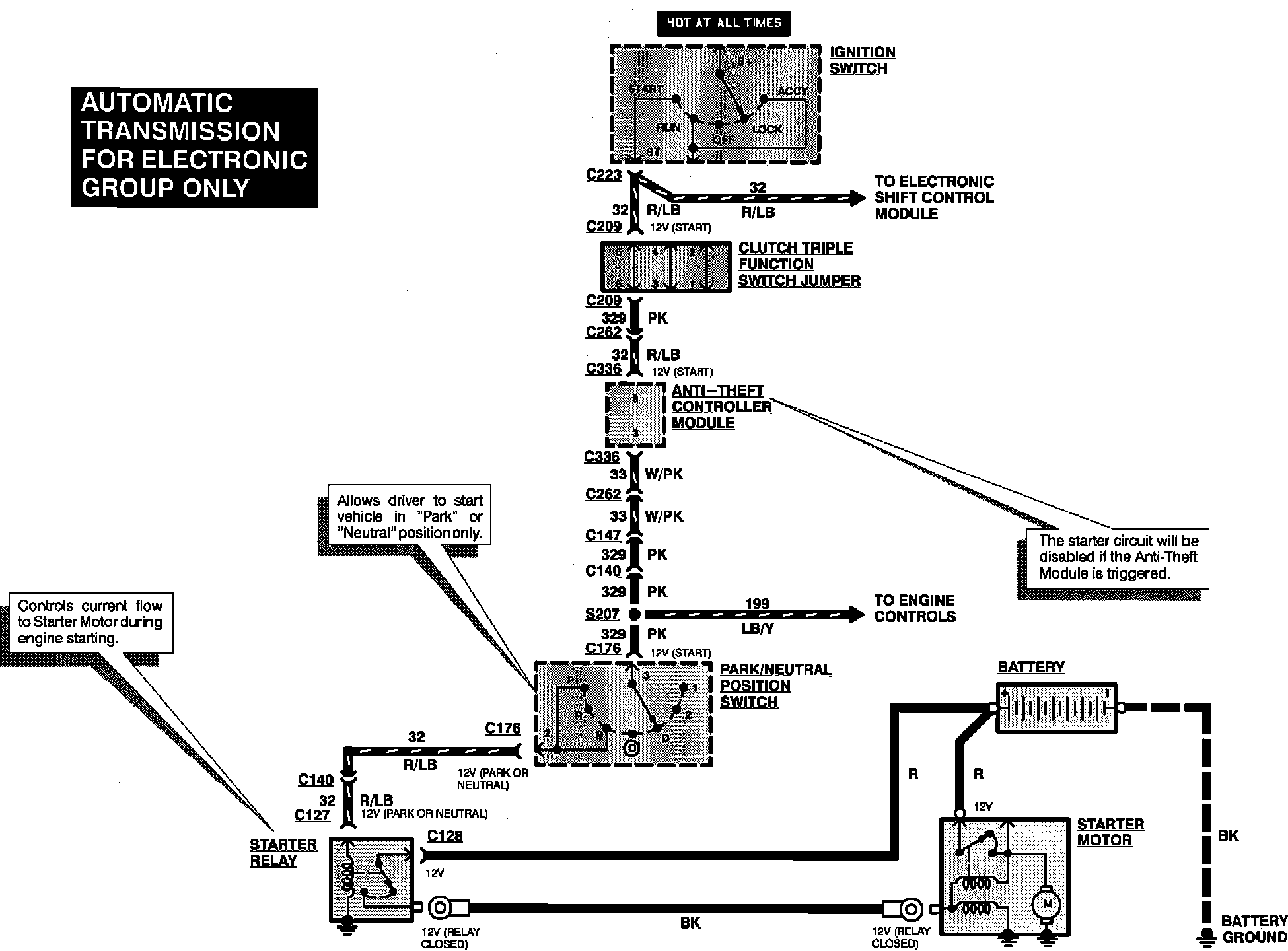

With Automatic Transmission And Electronic Group:

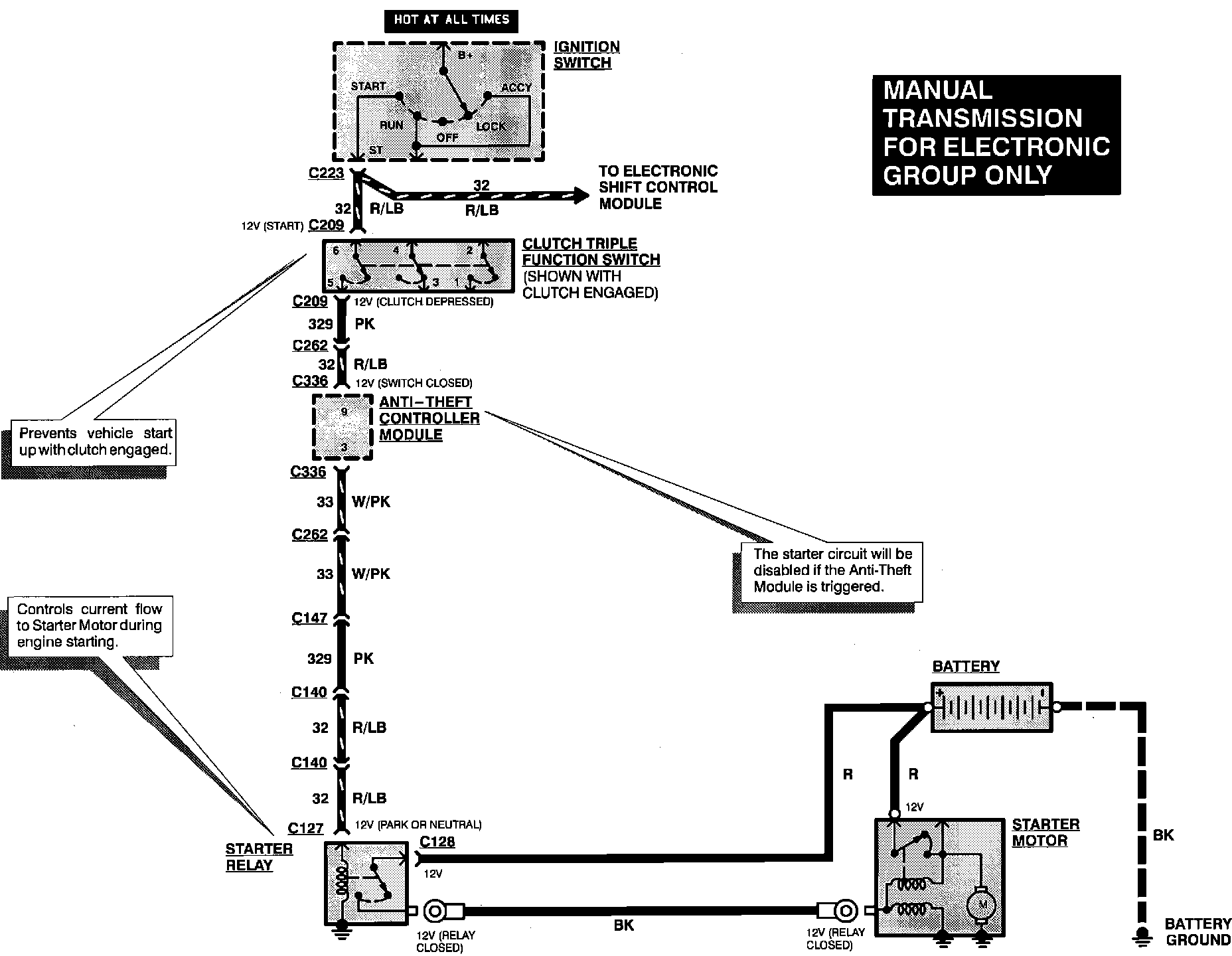

With Manual Transmission And Electronic Group:
