Fuse 2

Fuse 2 - protects the following circuits:
- Courtesy Lamps
- Headlamps
- Parking and License Lamps
- Autolamps

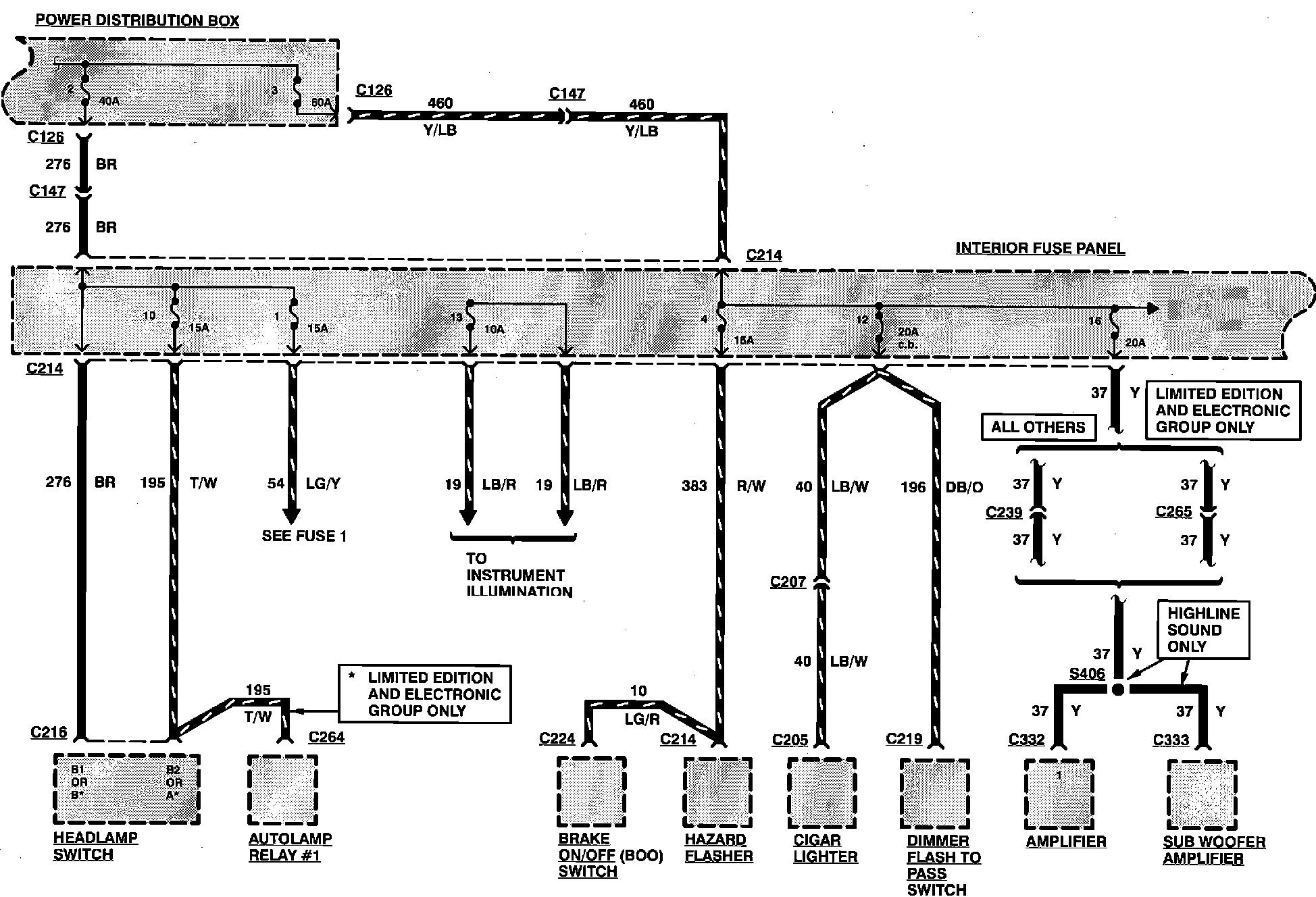

Power Distribution:
