Engine Controls

Engine Controls:

HEATED OXYGEN SENSOR (HO2S) #1
HEATED OXYGEN SENSOR (HO2S) #2
OCTANE ADJUST (SHORTING BAR)
PCM POWER RELAY

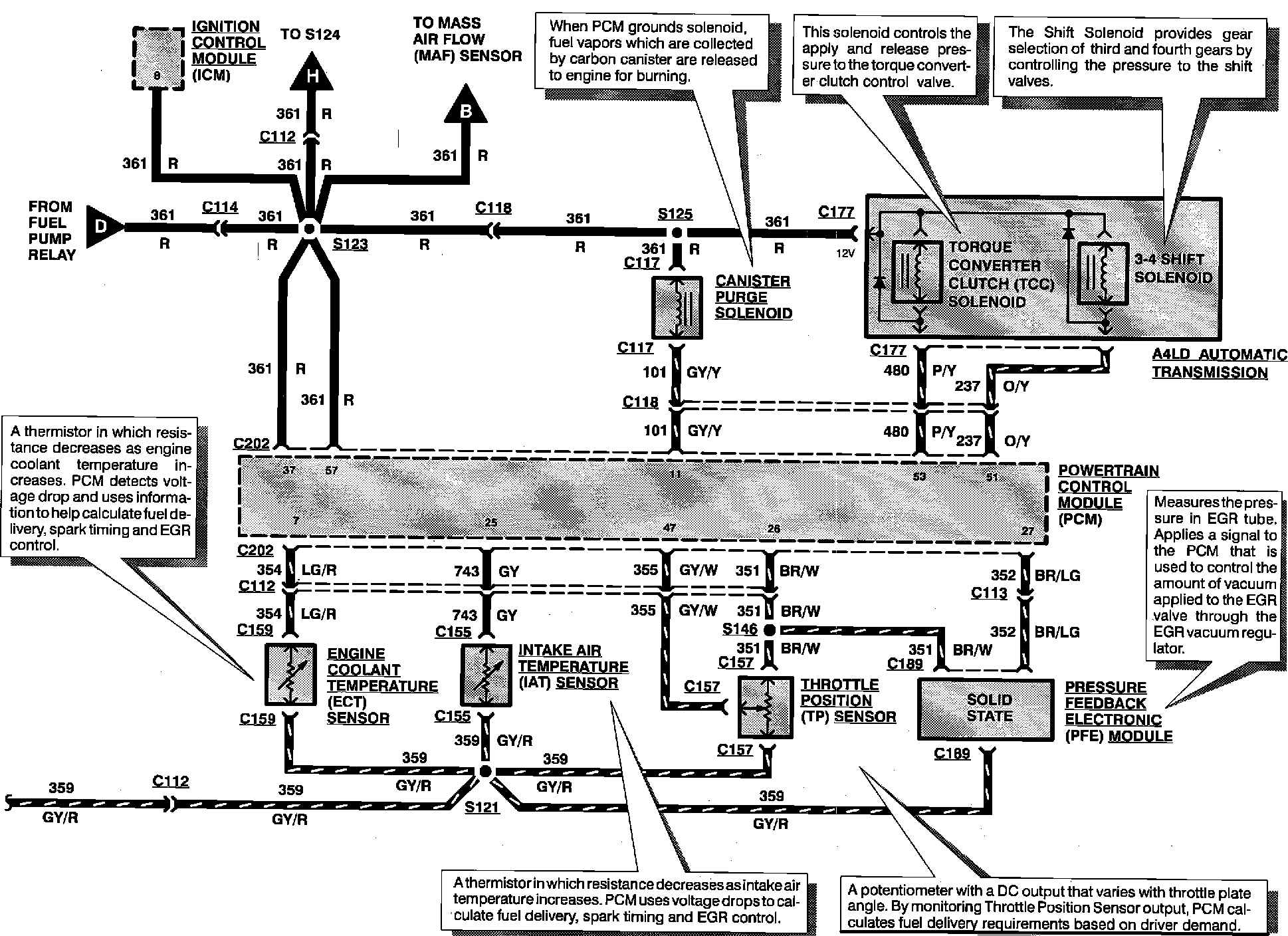

Engine Controls:

3-4 SHIFT SOLENOID
A4LD AUTOMATIC TRANSMISSION
CANISTER PURGE SOLENOID
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
INTAKE AIR TEMPERATURE (IAT) SENSOR
PRESSURE FEEDBACK ELECTRONIC (PFE) MODULE
THROTTLE POSITION (TP) SENSOR
TORQUE CONVERTER CLUTCH (TCC) SOLENOID

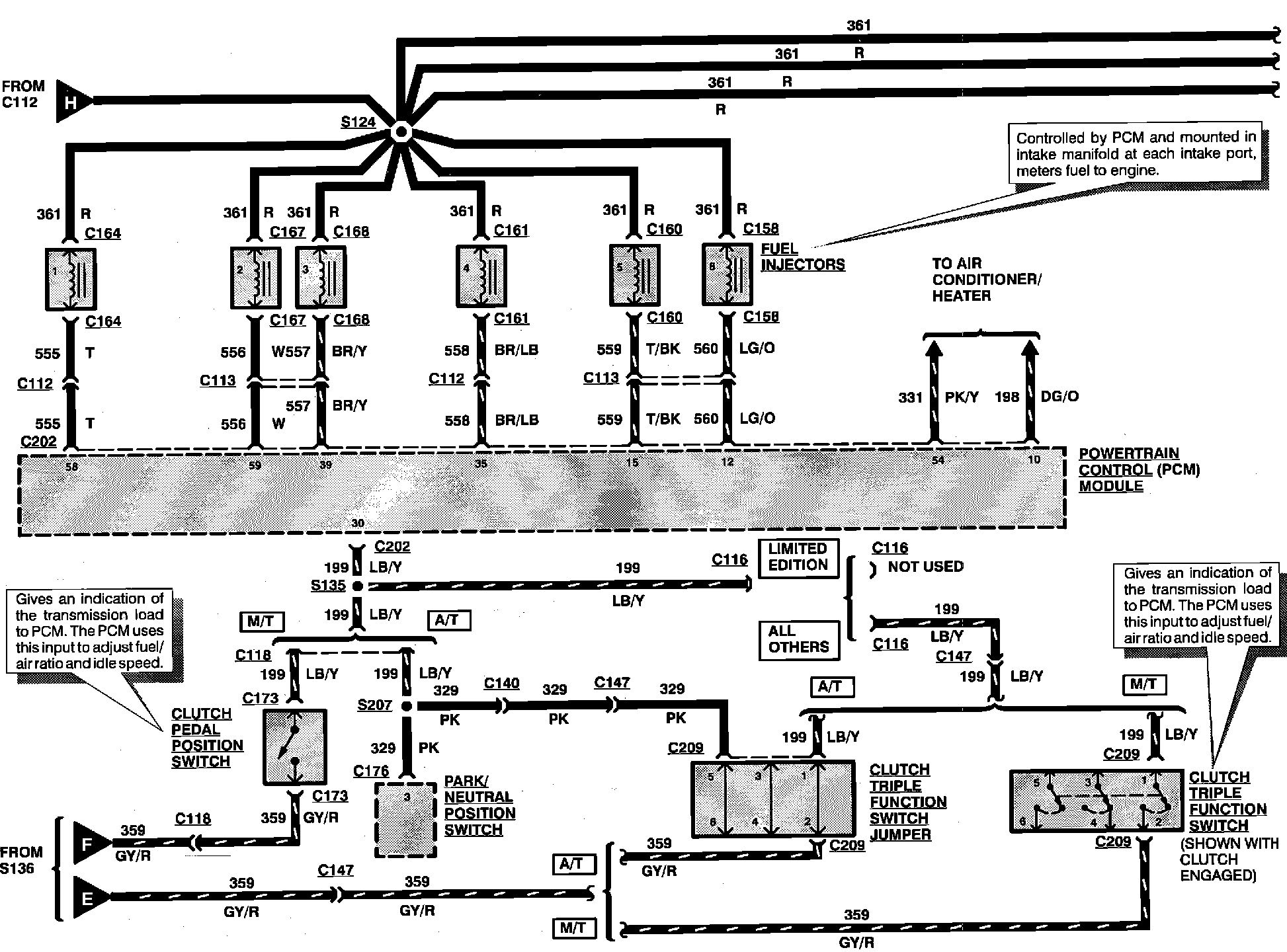

Engine Controls:

CLUTCH PEDAL POSITION SWITCH
CLUTCH TRIPLE FUNCTION SWITCH
CLUTCH TRIPLE FUNCTION SWITCH JUMPER
FUEL INJECTORS

Engine Controls:

CAMSHAFT POSITION (CMP) SENSOR
EGR VACUUM REGULATOR (EVR) SOLENOID
IDLE AIR CONTROL (IAC) VALVE
VEHICLE SPEED (VSS) SENSOR

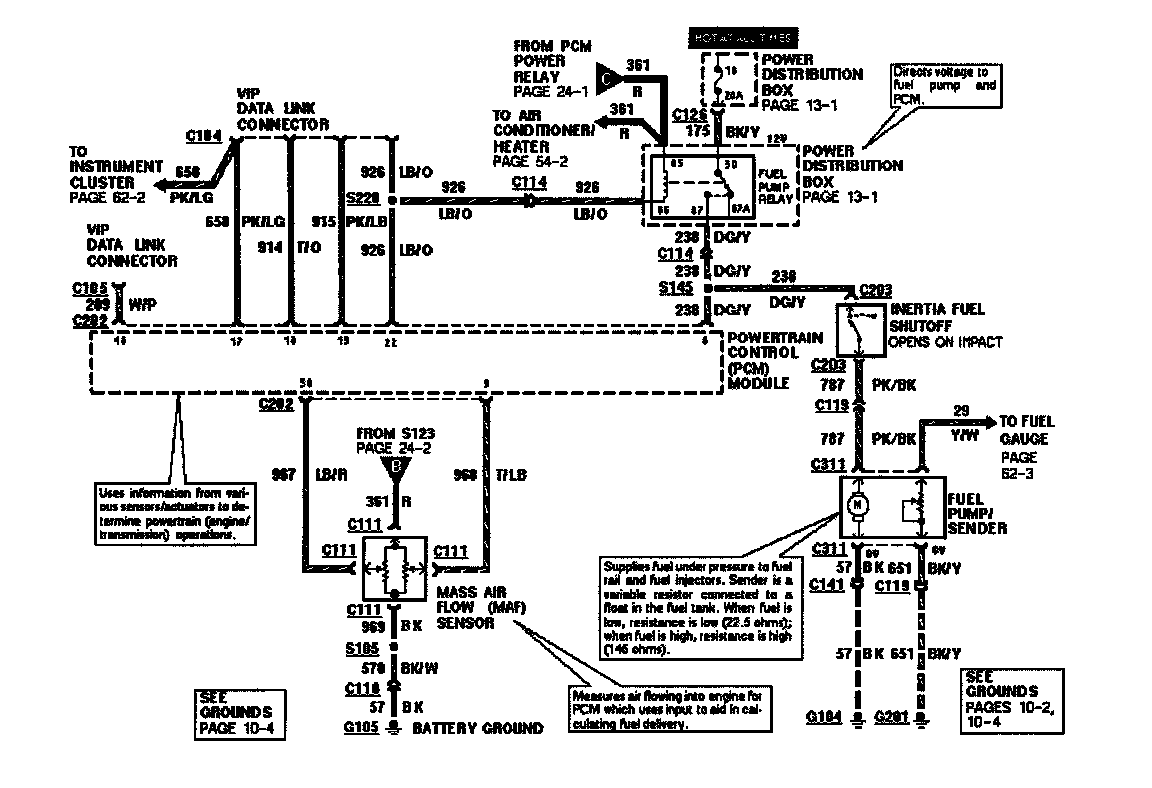

Engine Controls:

FUEL PUMP RELAY
FUEL PUMP/SENDER
MASS AIR FLOW (MAF) SENSOR
