All Except Limited Edition and Electronic Group

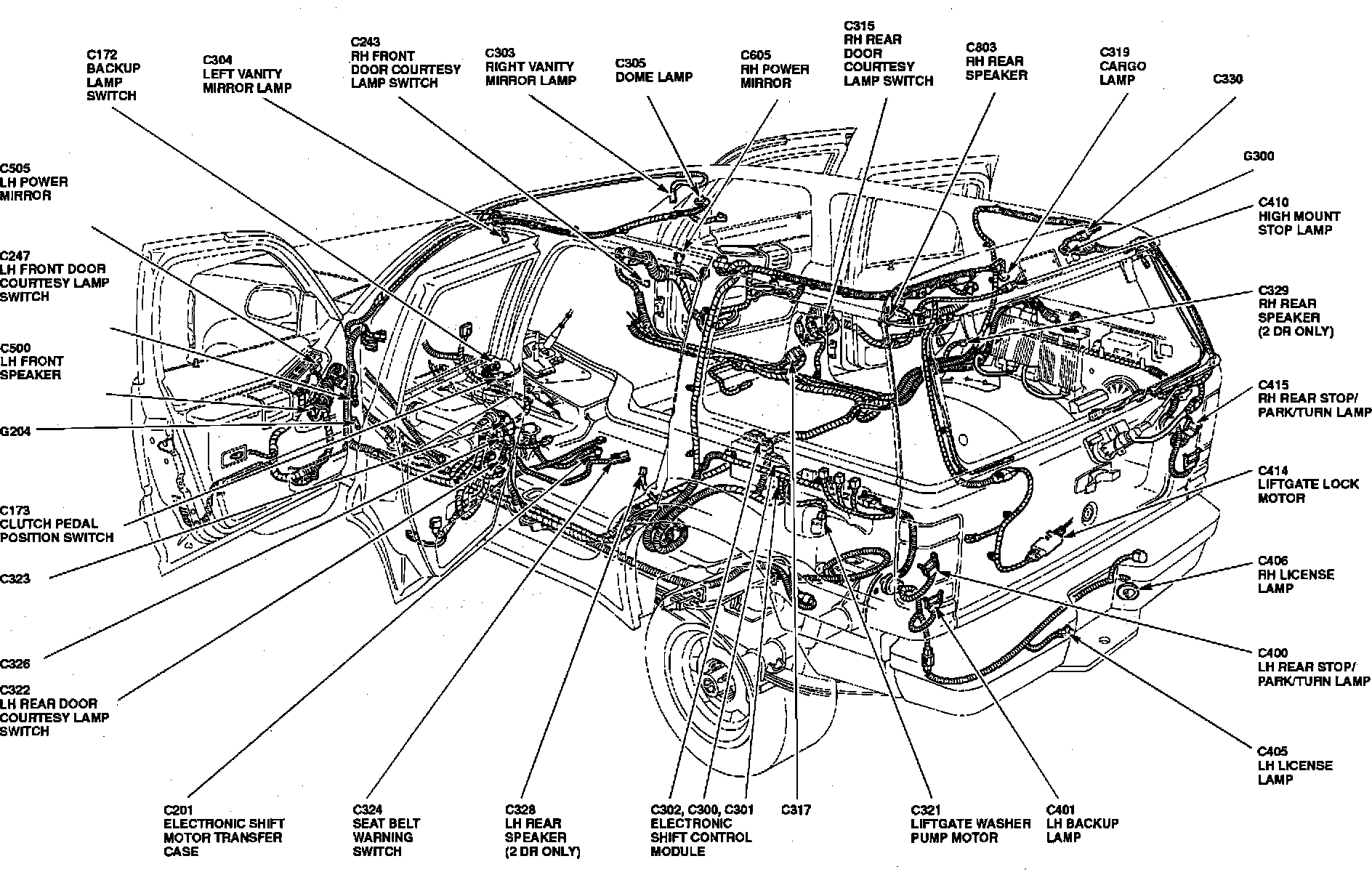

Component Locations:

BACKUP LAMP SWITCH
CARGO LAMP
CLUTCH PEDAL POSITION SWITCH
DOME LAMP
ELECTRONIC SHIFT CONTROL MODULE
ELECTRONIC SHIFT MOTOR TRANSFER CASE
HIGH MOUNT STOP LAMP
LEFT VANITY MIRROR LAMP
LH BACKUP LAMP
LH FRONT DOOR COURTESY LAMP SWITCH
LH FRONT SPEAKER
LH LICENSE LAMP
LH POWER MIRROR
LH REAR DOOR COURTESY LAMP SWITCH
LH REAR SPEAKER (2 Door ONLY)
LH REAR STOP/PARK/TURN LAMP
LIFTGATE LOCK MOTOR
LIFTGATE WASHER PUMP MOTOR
RH FRONT DOOR COURTESY LAMP SWITCH
RH LICENSE LAMP
RH POWER MIRROR
RH REAR DOOR COURTESY LAMP SWITCH
RH REAR SPEAKER
RH REAR SPEAKER (2 Door ONLY)
RH REAR STOP/PARK/TURN LAMP
RIGHT VANITY MIRROR LAMP
SEAT BELT WARNING SWITCH

Component Locations:

A4LD AUTOMATIC TRANSMISSION SOLENOIDS
AMPLIFIER
LEFT REAR POWER WINDOW SWITCH
LH FRONT DOOR COURTESY LAMP
LH FRONT DOOR LOCK MOTOR
LH FRONT POWER WINDOW MOTOR
LH REAR DOOR LOCK MOTOR
LH REAR POWER WINDOW
LH REAR SPEAKER
LH STOP/TURN SIGNAL RELAY
LIFTGATE WIPER DISABLE SWITCH
LIFTGATE WIPER MOTOR
MASTER WINDOW CONTROL SWITCH
PARK/NEUTRAL POSITION SWITCH
POWER MIRROR SWITCH
RH FRONT DOOR LOCK MOTOR
RH FRONT SPEAKER
RH REAR DOOR LOCK MOTOR
RH REAR POWER WINDOW MOTOR
RH STOP/TURN SIGNAL RELAY
RIGHT FRONT DOOR COURTESY LAMP
RIGHT FRONT POWER WINDOW MOTOR
RIGHT REAR POWER WINDOW SWITCH
SUB WOOFER AMPLIFIER
TAIL LAMP RELAY

Component Locations:

ACCELERATION SENSOR
AMPLIFIER
FUEL PUMP/SENDER
LIFTGATE COURTESY LAMP SWITCH
MAP LAMP
ONE TOUCH DOWN MODULE
PASSENGER DOOR LOCK/WINDOW SWITCH
REAR AXLE SENSOR
REAR WINDOW DEFROST GRID (C420)
REAR WINDOW DEFROST GRID (C421)
RH BACKUP LAMP
VEHICLE SPEED SENSOR
