Limited Edition and Electronic Group

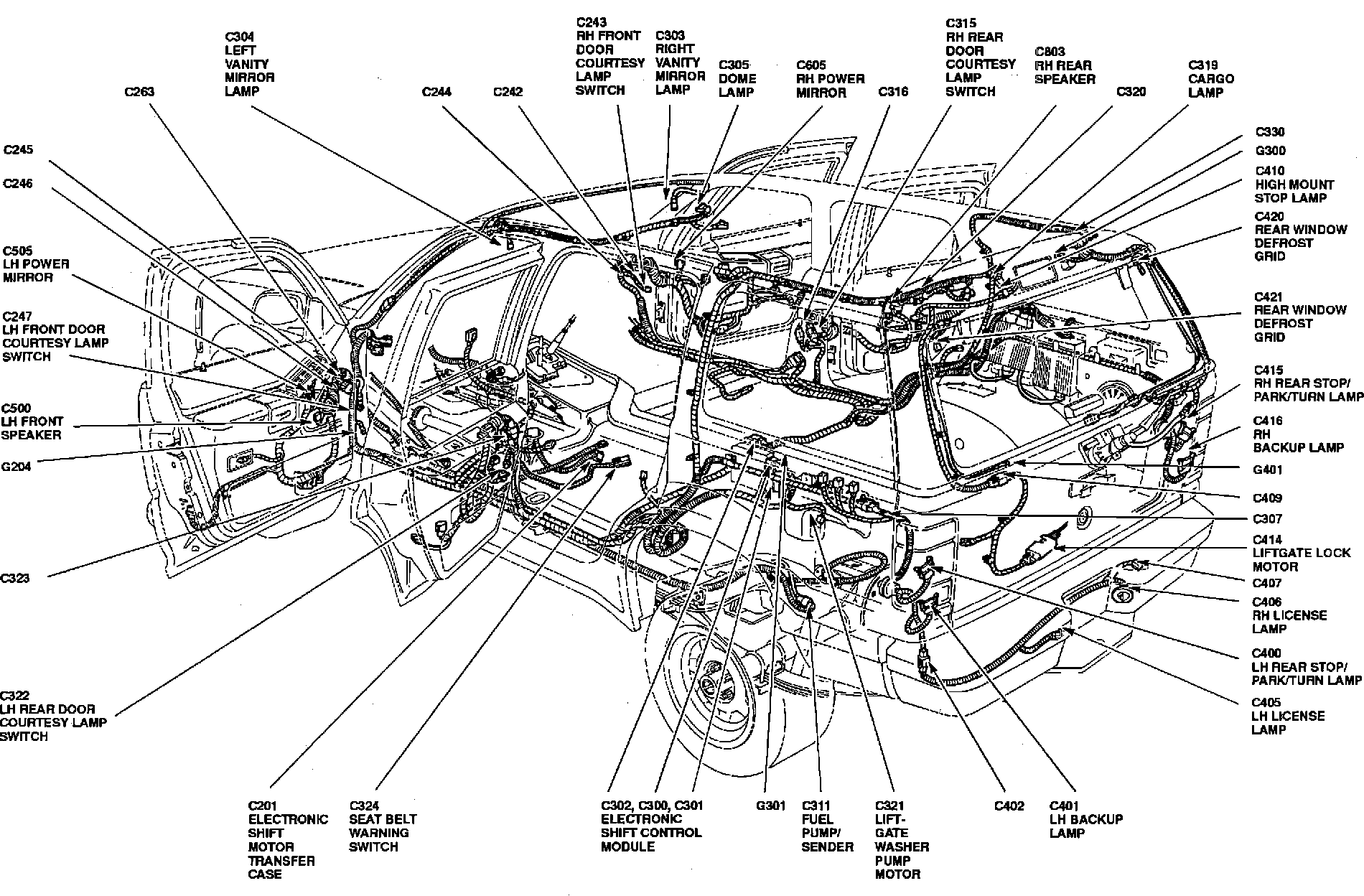

Component Locations:

CARGO LAMP
DOME LAMP
ELECTRONIC SHIFT CONTROL MODULE
ELECTRONIC SHIFT MOTOR TRANSFER CASE
FUEL PUMP/SENDER
HIGH MOUNT STOP LAMP
LEFT VANITY MIRROR LAMP
LH BACKUP LAMP
LH FRONT DOOR COURTESY LAMP SWITCH
LH FRONT SPEAKER
LH LICENSE LAMP
LH POWER MIRROR
LH REAR DOOR COURTESY LAMP SWITCH
LH REAR STOP/PARK/TURN LAMP
LIFTGATE LOCK MOTOR
LIFTGATE WASHER PUMP MOTOR
REAR WINDOW DEFROST GRID (C420)
REAR WINDOW DEFROST GRID (C421)
RH BACKUP LAMP
RH FRONT DOOR COURTESY LAMP SWITCH
RH LICENSE LAMP
RH POWER MIRROR
RH REAR DOOR COURTESY LAMP SWITCH
RH REAR SPEAKER
RH REAR STOP/PARK/TURN LAMP
RIGHT VANITY MIRROR LAMP
SEAT BELT WARNING SWITCH

Component Locations:

A4LD TRANSMISSION SOLENOID
ACCELERATION SENSOR
AMPLIFIER (C331)
AMPLIFIER (C332)
ANTI-THEFT CONTROLLER MODULE
DAY/NIGHT MIRROR/AUTOLAMP SENSOR
LEFT REAR WINDOW CONTROL SWITCH
LH FRONT DOOR COURTESY LAMP
LH FRONT DOOR DISARM SWITCH
LH FRONT DOOR LOCK MOTOR
LH FRONT POWER WINDOW MOTOR
LH POWER/HEATED MIRROR
LH REAR DOOR LOCK MOTOR
LH REAR POWER WINDOW MOTOR
LH REAR SPEAKER
LH STOP/TURN SIGNAL RELAY
LIFTGATE COURTESY LAMP SWITCH
LIFTGATE DISARM SWITCH
LIFTGATE JAMB SWITCH
LIFTGATE WIPER DISABLE SWITCH
LIFTGATE WIPER MOTOR
MAP LAMP
MASTER WINDOW CONTROL SWITCH
MEMORY SEAT SWITCH
ONE TOUCH DOWN MODULE
OVERHEAD CONSOLE
PARK/NEUTRAL POSITION SWITCH
PASSENGER DOOR LOCK/WINDOW SWITCH
POWER MIRROR SWITCH
REAR AXLE SENSOR
REMOTE KEYLESS ENTRY MODULE
RF POWER WINDOW MOTOR
RH FRONT DOOR DISARM SWITCH
RH FRONT DOOR LOCK MOTOR
RH FRONT SPEAKER
RH POWER/HEATED MIRROR
RH REAR DOOR LOCK MOTOR
RH REAR POWER WINDOW MOTOR
RH STOP/TURN SIGNAL RELAY
RIGHT FRONT DOOR COURTESY LAMP
RIGHT REAR WINDOW CONTROL SWITCH
RKE PROGRAM CONNECTOR
SUB WOOFER AMPLIFIER
TAIL LAMP RELAY
VEHICLE SPEED SENSOR
