Breakout Box Function

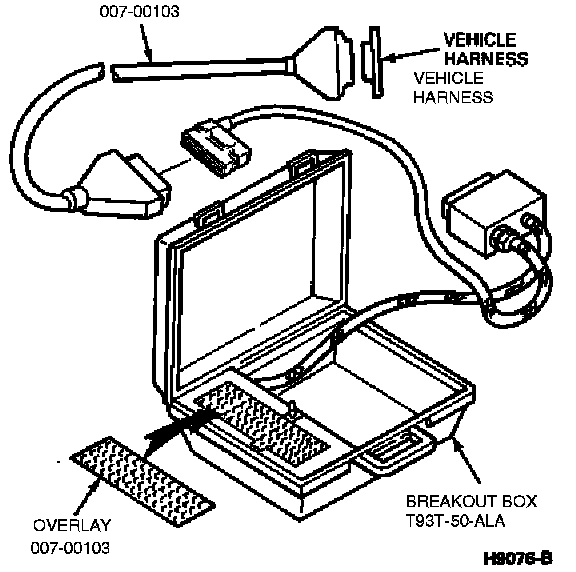

Break-out Box And Connectors:

1. Disconnect the 28-pin plug from the Electronic Control Unit (ECU).
2. Connect the Anti-Lock Brake Adapter 007-00103 to the 28-pin plug on the vehicle harness.
3. Connect the adapter's 60-pin plug to the Breakout Box cable.
4. Install overlay box.
5. Refer to pinpoint test procedures for specific servicing directions.
