Connector Views
>>
Power Door Lock Switch
>>
Passenger Side
>>
Without Keyless Entry
Without Keyless Entry

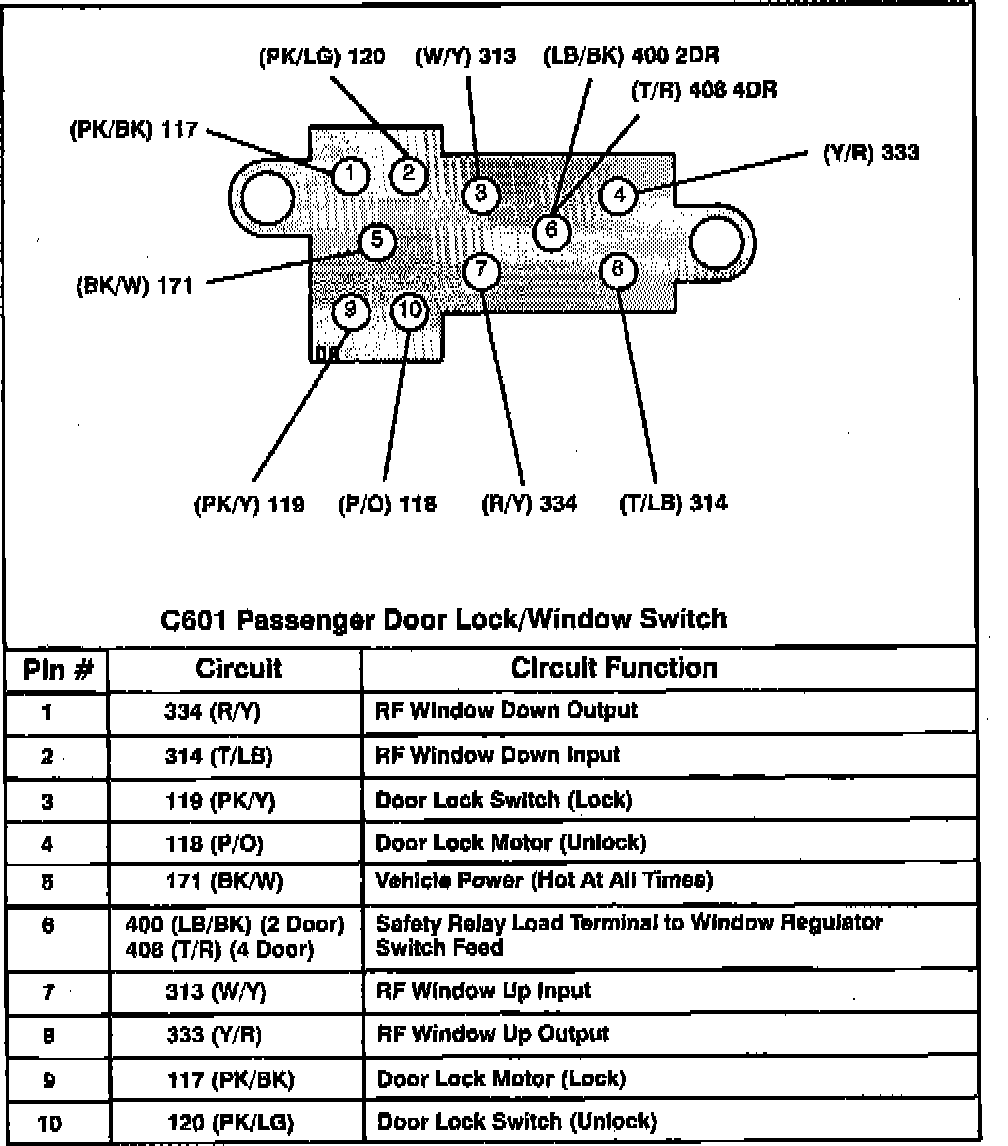

Passenger Door Lock/Window Switch:
