Fuse 6

Fuse 6 - protects the following circuits:
- Power Door Locks
- Power Mirrors
- Anti-Theft Controller Module
- Remote Keyless Entry Module

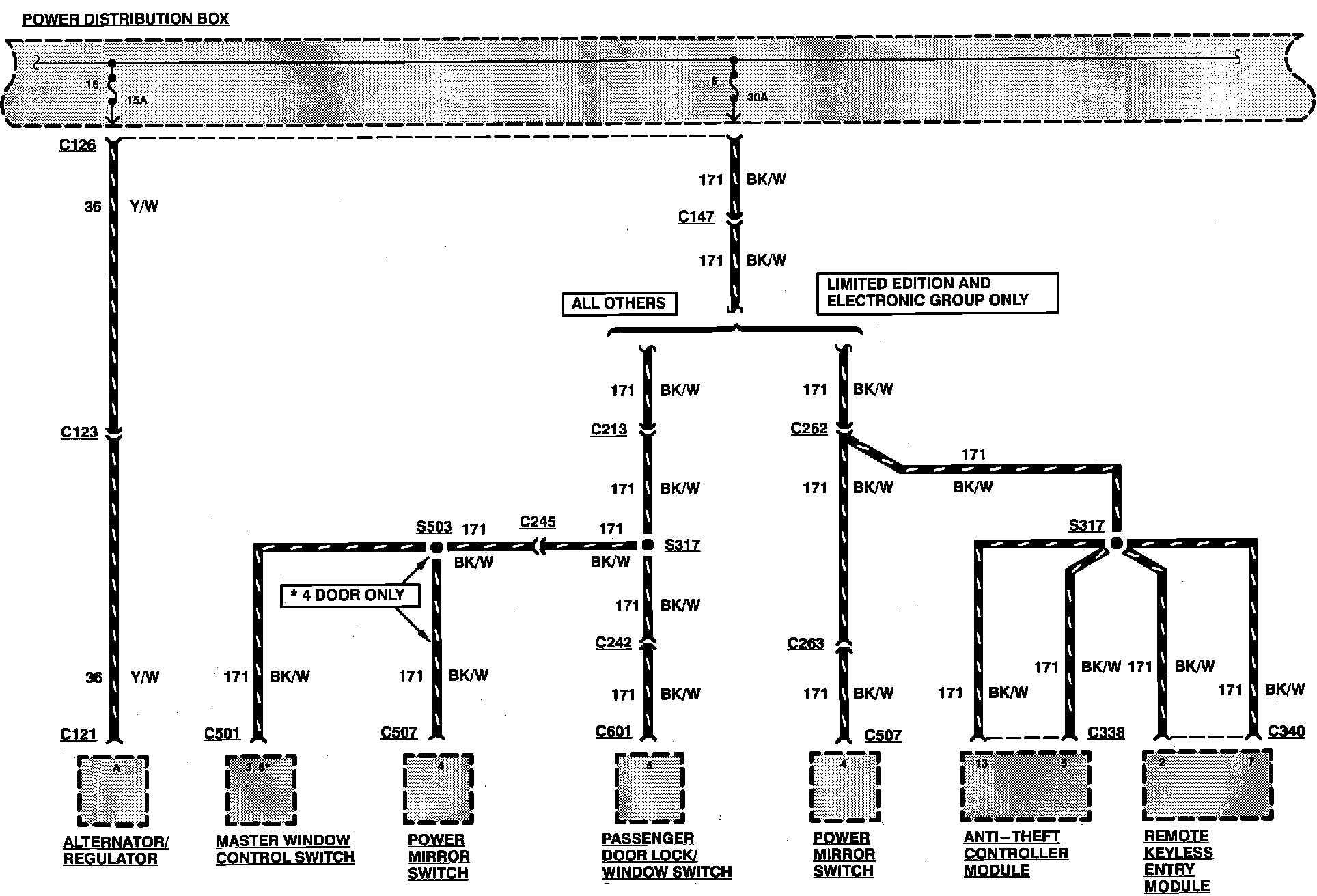

Power Distribution:
