Ford Truck
>>
1994
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Instrument Panel View
>>
Limited Edition and Electronic Group
Limited Edition and Electronic Group

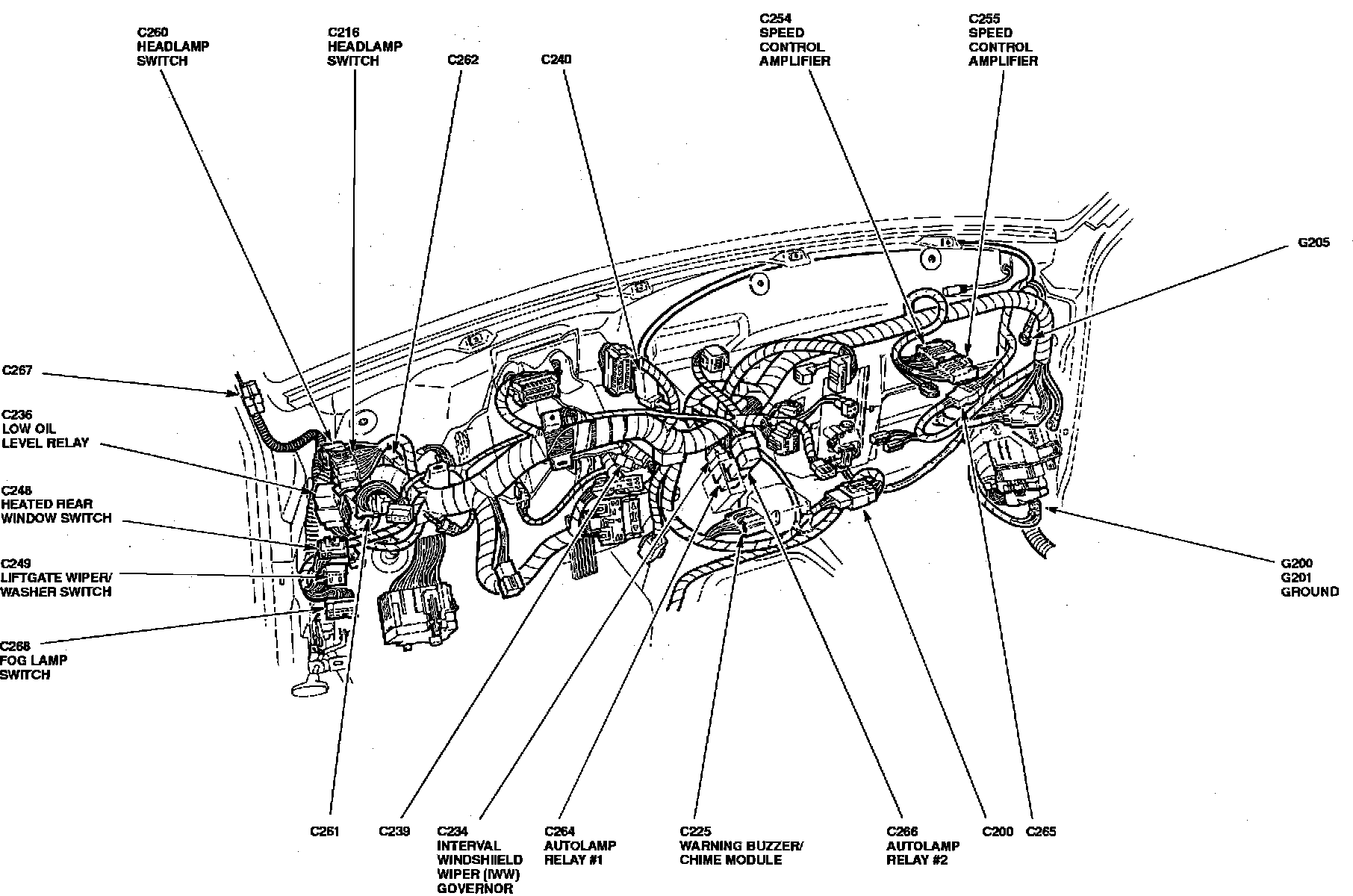

Component Locations:
Component Locations:
